Handheld enclosures for large graphics displays

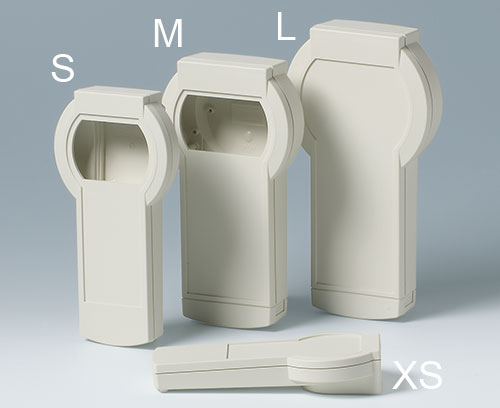

These ergonomic plastic enclosures have a large head section for installing bigger display modules with graphics capability.

  • installation of standard size LCDs and graphics display modules
  • narrow holding area for user comfort

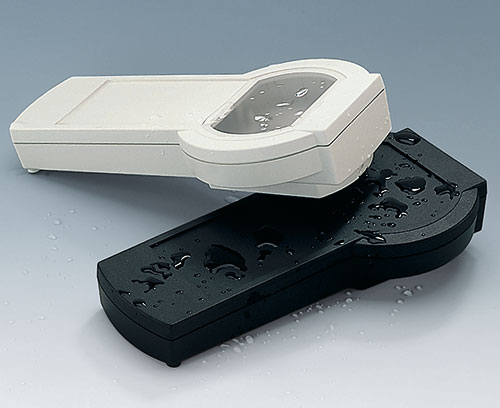

  • high protection class: IP 65 (XS, S) or IP 54 (M, L) when using the sealing kits and display windows (accessories)
  • four sizes each in two colours
  • DATEC-CONTROL XS
    with/without screw-in battery cradles, 2 x AA / 3 x AA cells; battery lid optionally with latch and/or fixed by screws; station for ergonomically inclined desk case applications
  • DATEC-CONTROL S
    with/without screw-in battery cradles, 4 x AA / 1 x 9 V cells; battery lid optionally with latch and/or fixed by screws; station for ergonomically inclined desk case applications
  • DATEC-CONTROL M, L
    with/without plug-in battery packs, up to 5 x AA cells; with mounting for PCMCIA holders; separate desk and wall stations for battery charging and/or data downloading

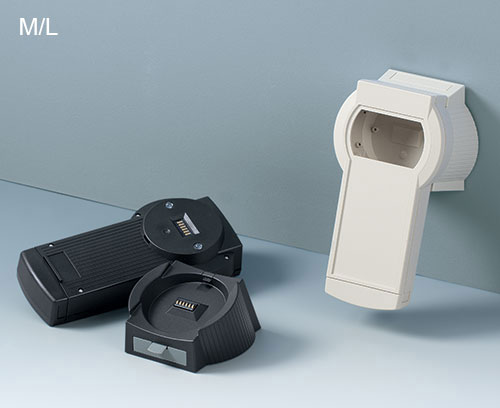

  • easy transmission of data and charging current, station and contacts as accessories
  • wall suspension element for secure storage of the enclosure (accessory)
  • protectors absorb impacts and protect surfaces, sizes M and L additional with shoulder strap
  • recessed operating area for protecting the membrane keypad
  • internal fastening pillars for PCBs
  • Application Examples

Application fields

  • Mobile data collection and transfer via modem, ISDN or infra-red technology
  • Measuring and control technology
  • Digital control devices
  • Medical and wellness equipment
  • Smart Factory
  • Industry 4.0
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".



Size XS

DATEC-CONTROL size XS

Size S

DATEC-CONTROL size S

Sizes M/L

DATEC-CONTROL sizes M/L

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V Steel
tin-plated
A9176001 Display window XS

A9176001

Display window XS Application: The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Close

A9176001

Display window XS Acrylic glass
clear
A9176006 Sealing kit XS

A9176006

Sealing kit XS Application: for increasing the protection class.

Supply 1 sealing kit

Close

A9176006

Sealing kit XS

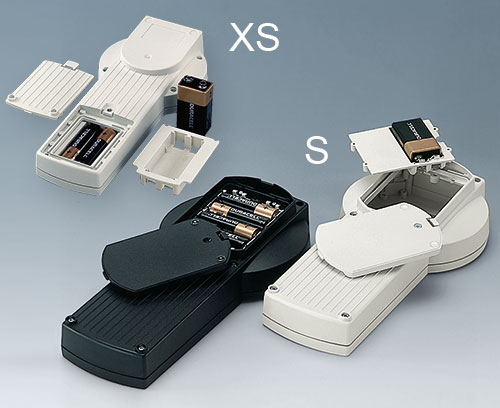

A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

Close

A9176007

Set of battery clips, 2 x AA Steel
nickel-plated
A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

Close

A9176008

Set of battery clips, 3 x AA Steel
nickel-plated

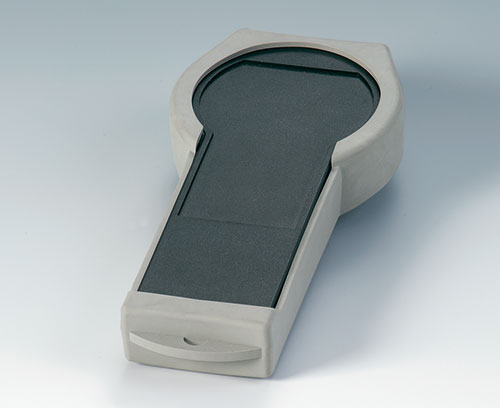

A9176108 Protector XS

A9176108

Protector XS Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

A9176108

Protector XS SBS (TPE)
volcano

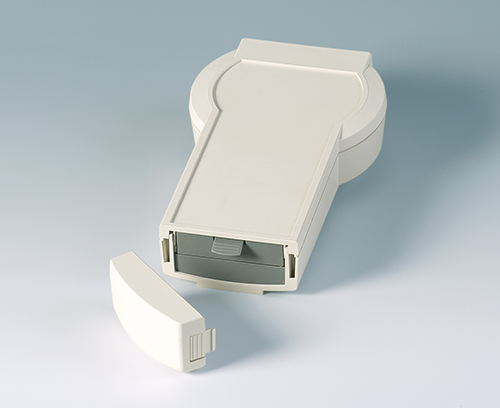

A9176128 Battery compartment XS, 2 x AA or 1 x 9V

A9176128

Battery compartment XS, 2 x AA or 1 x 9V Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Close

A9176128

Battery compartment XS, 2 x AA or 1 x 9V ABS (UL 94 HB)
A9176137 Station XS

A9176137

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9176137

Station XS ABS (UL 94 HB)
off-white RAL 9002
A9176139 Station XS

A9176139

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9176139

Station XS ABS (UL 94 HB)
black RAL 9005
A9176158 Battery compartment XS, 3 x AA

A9176158

Battery compartment XS, 3 x AA Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Close

A9176158

Battery compartment XS, 3 x AA ABS (UL 94 HB)
off-white RAL 9002
A9177001 Display window S

A9177001

Display window S The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Close

A9177001

Display window S Acrylic glass
clear
A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class.

Supply 1 sealing kit

Close

A9177006

Sealing kit S
A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

A9177008

Protector S SBS (TPE)
volcano

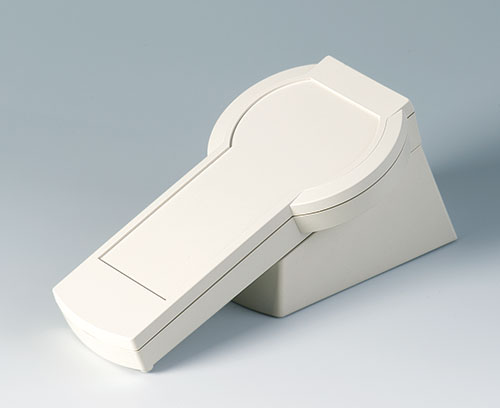

A9177137 Station S

A9177137

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9177137

Station S ABS (UL 94 HB)
off-white RAL 9002
A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9177139

Station S ABS (UL 94 HB)
black RAL 9005
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Close

A9177310

Battery compartment, 1 x 9 V ABS (UL 94 HB)
A9178001 Display window M

A9178001

Display window M The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Close

A9178001

Display window M Acrylic glass
clear
A9178006 Sealing kit M

A9178006

Sealing kit M Application: for increasing the protection class.

Supply 1 sealing kit

Close

A9178006

Sealing kit M
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178008

Contacts, female gold-plated
A9178108 Protector M

A9178108

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

Close

A9178108

Protector M SEBS (TPE)
volcano
A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Close

A9178118

Battery compartment holder PC
volcano

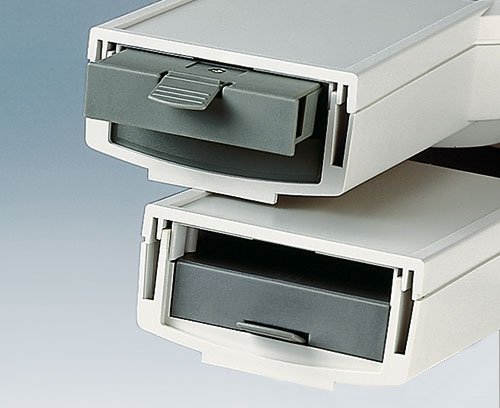

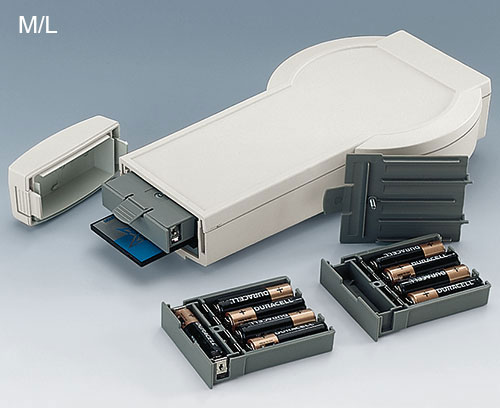

A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Close

A9178128

Battery compartment, M/L, 4 x AA PC
volcano
A9178137 Station, Vers. I

A9178137

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9178137

Station, Vers. I ABS (UL 94 HB)
off-white RAL 9002
A9178139 Station, Vers. I

A9178139

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9178139

Station, Vers. I ABS (UL 94 HB)
black RAL 9005
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Close

A9178158

Battery compartment, M/L, 5 x AA PC
volcano
A9178167 Station, Vers. II

A9178167

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

Close

A9178167

Station, Vers. II ABS (UL 94 HB)
off-white RAL 9002
A9178169 Station, Vers. II

A9178169

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

Close

A9178169

Station, Vers. II ABS (UL 94 HB)
black RAL 9005

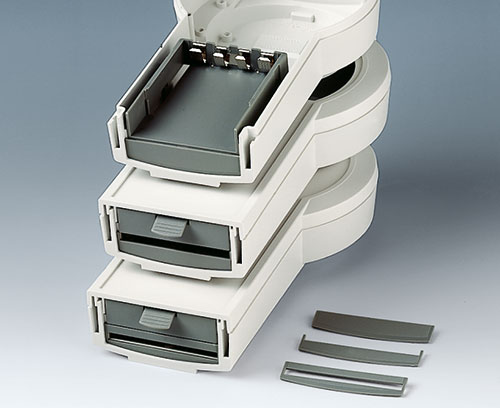

A9178178 End plate for electronic area, Vers. I

A9178178

End plate for electronic area, Vers. I Simply inserted into the guides in the bottom part.

Version To close the electronic area

Supply 1 end plate for electronic area

Close

A9178178

End plate for electronic area, Vers. I PC
volcano
A9178188 End plate for electronic area, Vers. II

A9178188

End plate for electronic area, Vers. II Simply inserted into the guides in the bottom part.

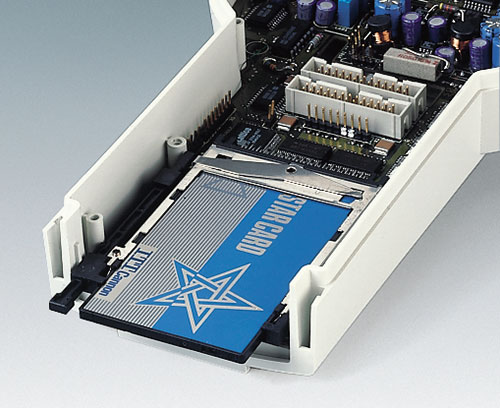

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Close

A9178188

End plate for electronic area, Vers. II PC
volcano
A9178198 End plate for electronic area, Vers. III

A9178198

End plate for electronic area, Vers. III Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Close

A9178198

End plate for electronic area, Vers. III PC
volcano
A9178208 Protector M

A9178208

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version With shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle)

Supply 1 protector, 1 shoulder strap

Close

A9178208

Protector M SEBS (TPE)
volcano
A9179001 Display window L

A9179001

Display window L The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Close

A9179001

Display window L Acrylic glass
clear
A9179006 Sealing kit L

A9179006

Sealing kit L Application: for increasing the protection class.

Supply 1 sealing kit

Close

A9179006

Sealing kit L
A9179108 Protector L

A9179108

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

Close

A9179108

Protector L SEBS (TPE)
volcano
A9179208 Protector L

A9179208

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version with shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle).

Supply 1 protector, 1 shoulder strap

Close

A9179208

Protector L SEBS (TPE)
volcano
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports.

Supply 1 strain relief device, 2 screws

Close

A9199005

Strain relief PA 6
volcano

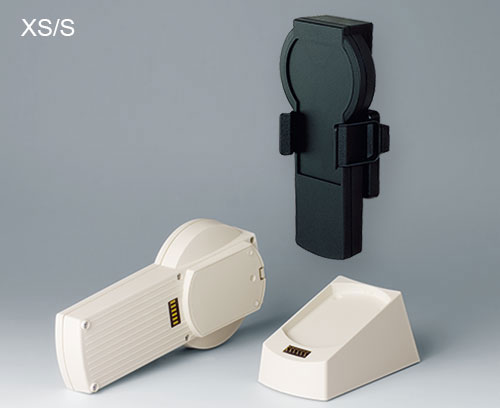

A9226117 Wall suspension element

A9226117

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226117

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226119 Wall suspension element

A9226119

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226119

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226227

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226229

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9226337 Wall suspension element

A9226337

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226337

Wall suspension element ABS (UL 94 HB)
off-white RAL 9002
A9226339 Wall suspension element

A9226339

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226339

Wall suspension element ABS (UL 94 HB)
black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer PE foam
50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Close

A9345217

Set of battery compartment, 4 x AA ABS (UL 94 HB)
off-white RAL 9002

Customising options for Datec-Control

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
