DIN-MODULAR CASES TYPE A

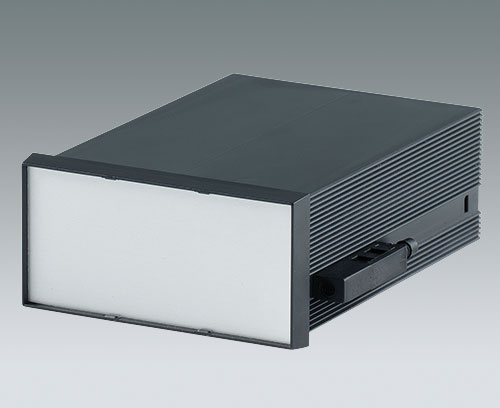

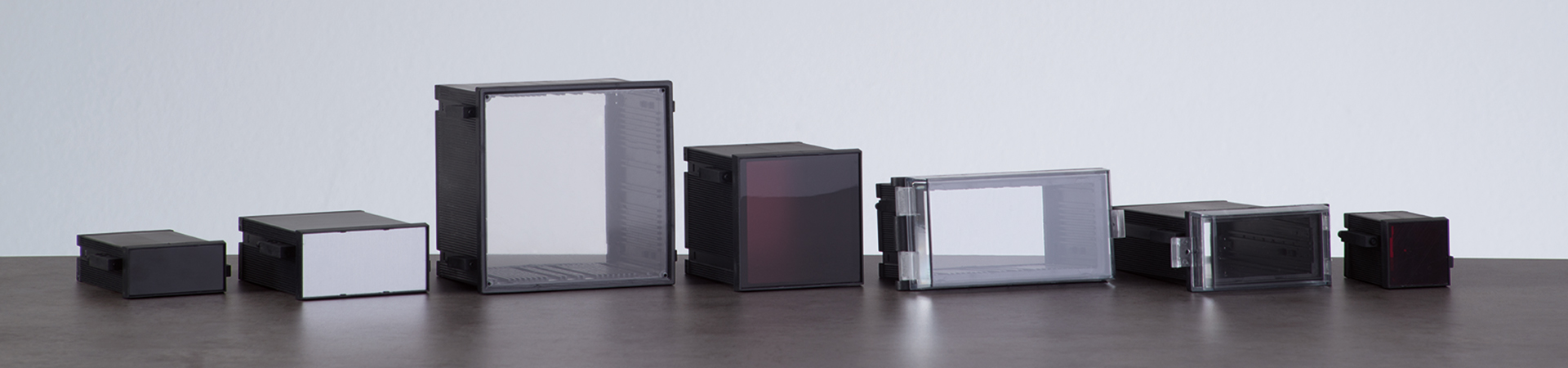

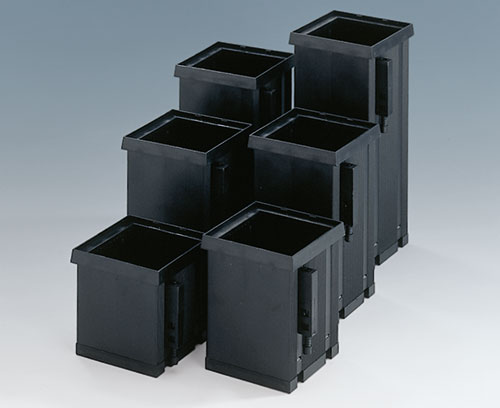

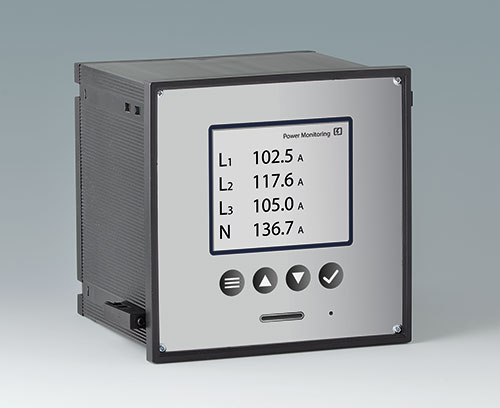

DIN-Modular Cases Type A

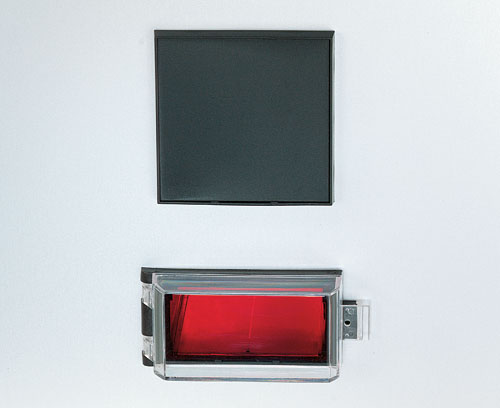

Versatile panel mount DIN boxes

Our TYPE A DIN-MODULAR plastic enclosures are designed according to DIN IEC 61554*, and feature snap-together assembly for faster installation, unlike conventional DIN boxes which require assembly by screws.

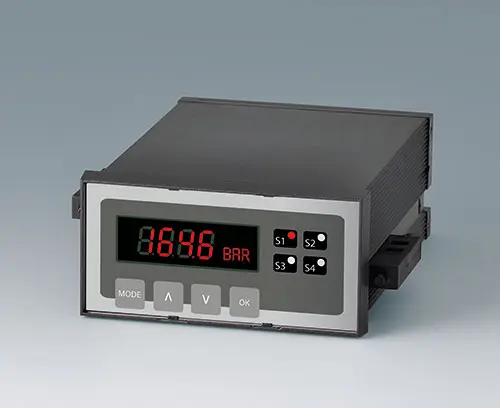

  • seven standard dimensions  72 x 36, 48 x 48, 96 x 48, 72 x 72, 96 x 96*, 144 x 72* and 144 x 144 with variable case depths  (*does not correspond exactly to DIN IEC 61554)
  • material corresponds to UL 94 V-0: self-extinguishing and shock resistant; high standard of mechanical and electrical properties
  • fixing of the PCBs by the rear frame
  • fast and secure snap-together assembly

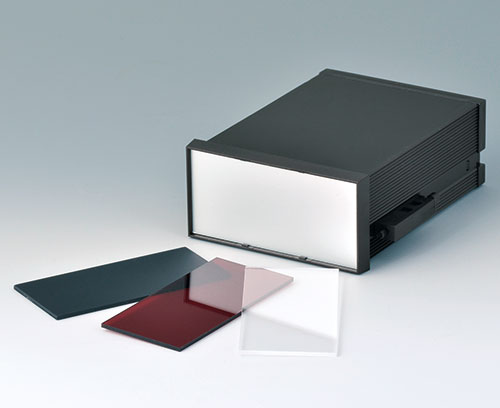

  • range of front and rear panels

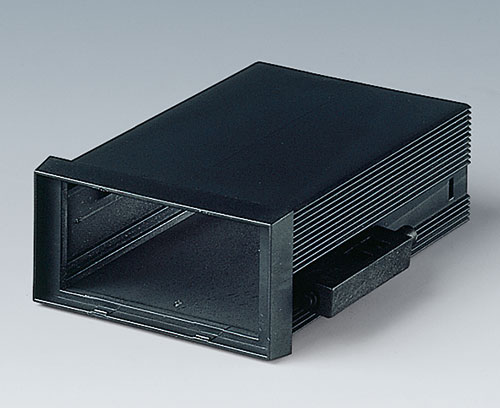

  • fastening elements for mounting the control panels included
  • advantage of the design principle is the implementation of optional case length to match the application exactly

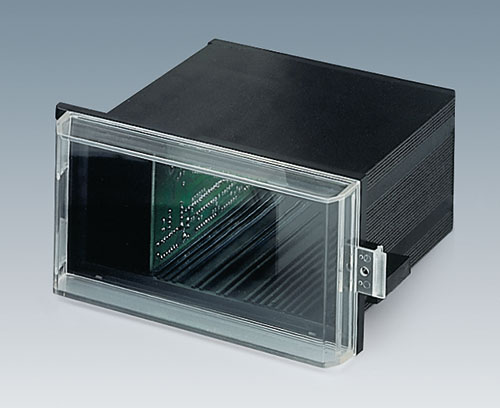

  • transparent cover protects display and operating elements (sizes 96 x 48 to 144 x 144)
  • PCB guides on two or all four internal faces
  • protection class < IP 40

Application fields

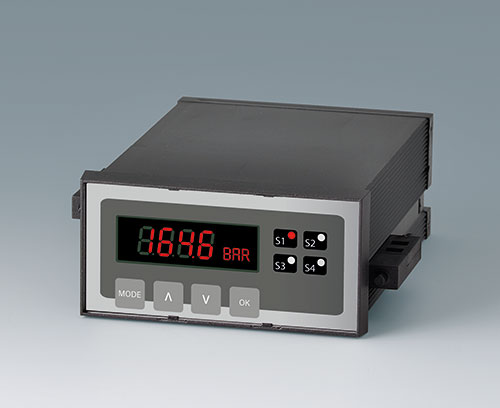

  • Measuring, control and detection devices mounted to a large control panel, or for individual installation
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

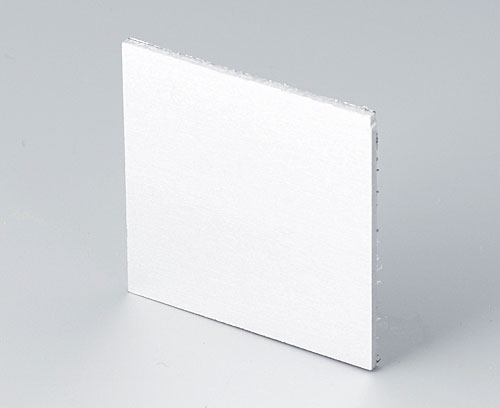

B6112111 Front panel

B6112111

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Close

B6112111

Front panel
product added to your basket
Aluminium
matt anodised
43.6x43.6x1.5mm
B6112112 Rear panel

B6112112

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

Close

B6112112

Rear panel
product added to your basket
Aluminium
matt anodised
42.2x29.6x1mm

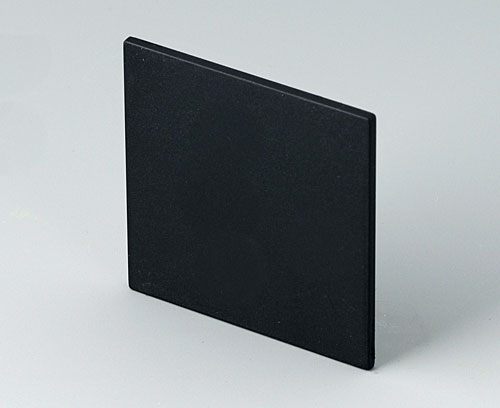

B6112221 Front panel

B6112221

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Close

B6112221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
43.7x43.7x2mm

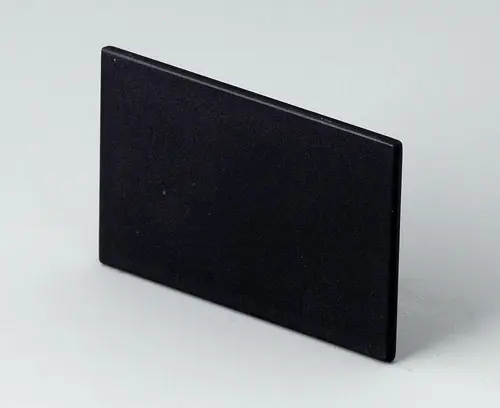

B6112222 Rear panel

B6112222

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

Close

B6112222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
42.3x29.6x1.8mm

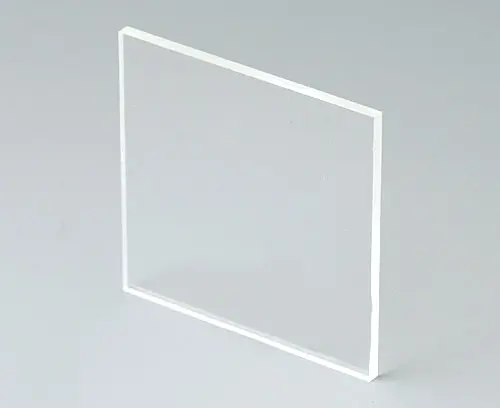

B6112331 Front panel

B6112331

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Close

B6112331

Front panel
product added to your basket
Acrylic glass
transparent
43.6x43.6x2mm

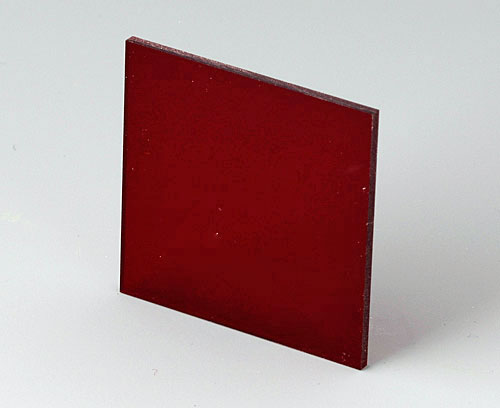

B6112341 Front panel

B6112341

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Close

B6112341

Front panel
product added to your basket
Acrylic glass
red transparent
43.6x43.6x2mm
B6112451 Front panel

B6112451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Close

B6112451

Front panel
product added to your basket
PC (IR)
43.7x43.7x2mm
B6121111 Front panel

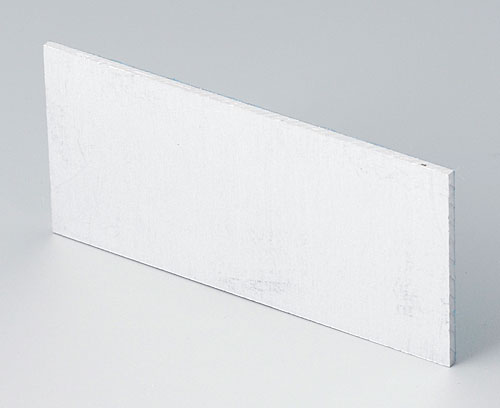

B6121111

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121111

Front panel
product added to your basket
Aluminium
matt anodised
67.7x31.6x1.5mm
B6121112 Rear panel

B6121112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Close

B6121112

Rear panel
product added to your basket
Aluminium
matt anodised
57.6x28.6x1mm

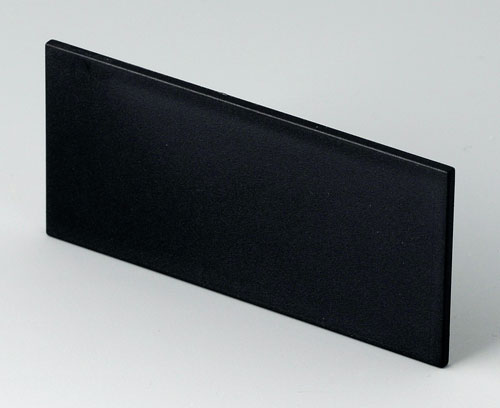

B6121221 Front panel

B6121221

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
67.8x31.7x2mm

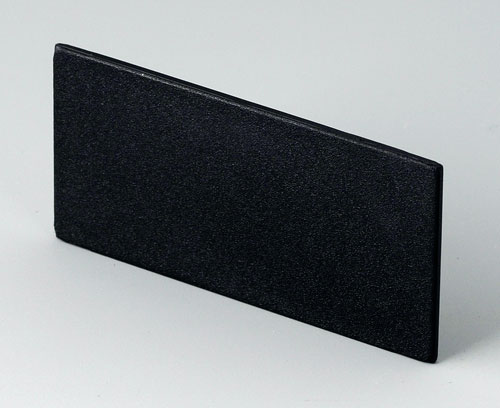

B6121222 Rear panel

B6121222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Close

B6121222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
57.6x28.7x1.5mm

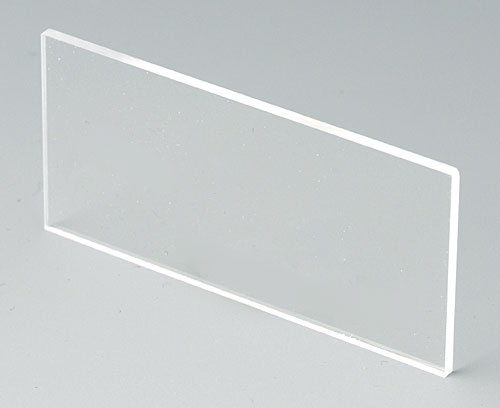

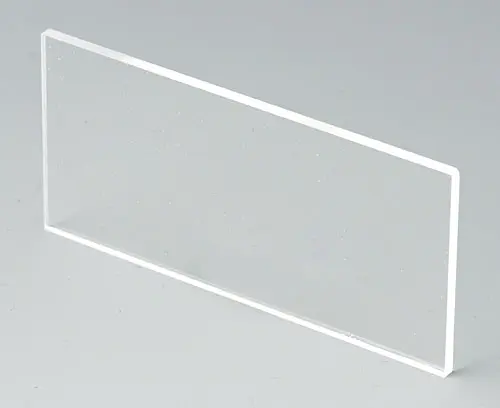

B6121331 Front panel

B6121331

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121331

Front panel
product added to your basket
Acrylic glass
transparent
67.7x31.6x2mm

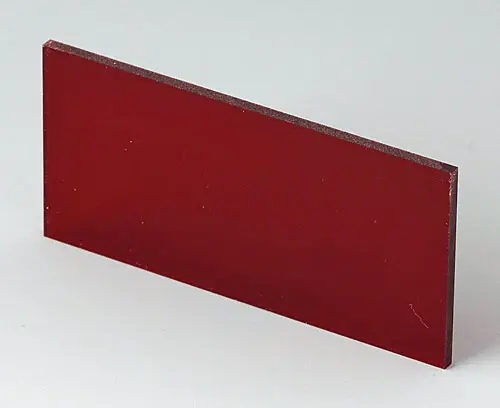

B6121341 Front panel

B6121341

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121341

Front panel
product added to your basket
Acrylic glass
red transparent
67.7x31.6x2mm
B6121451 Front panel

B6121451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121451

Front panel
product added to your basket
PC (IR)
67.8x31.8x2mm

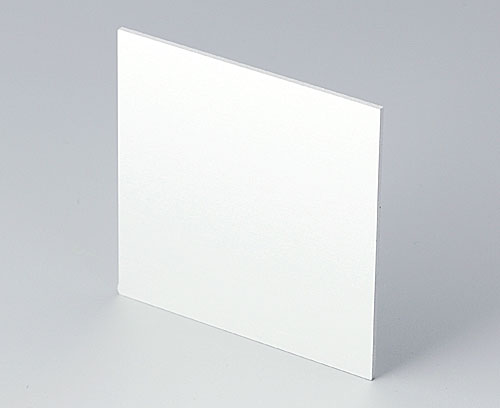

B6123111 Front panel

B6123111

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Close

B6123111

Front panel
product added to your basket
Aluminium
matt anodised
67.5x67.5x1.5mm

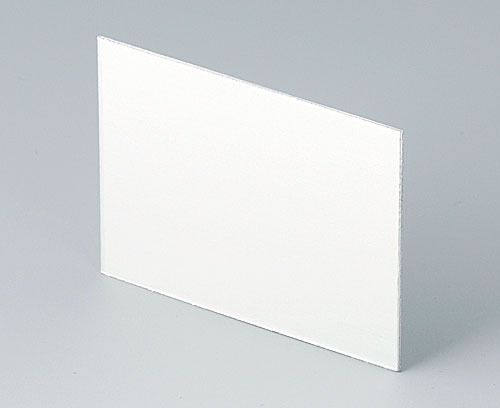

B6123112 Rear panel

B6123112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

Close

B6123112

Rear panel
product added to your basket
Aluminium
matt anodised
63.7x49.1x1mm
B6123221 Front panel

B6123221

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Close

B6123221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
67.6x67.6x2mm

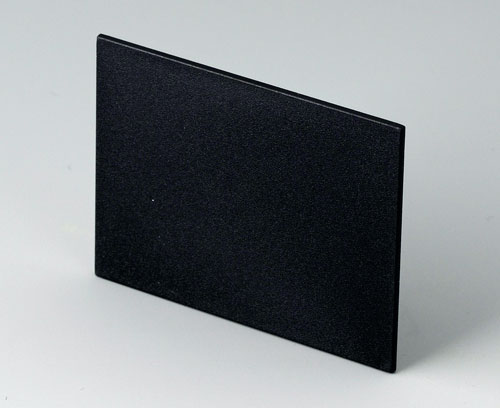

B6123222 Rear panel

B6123222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

Close

B6123222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
63.8x49.2x1.7mm

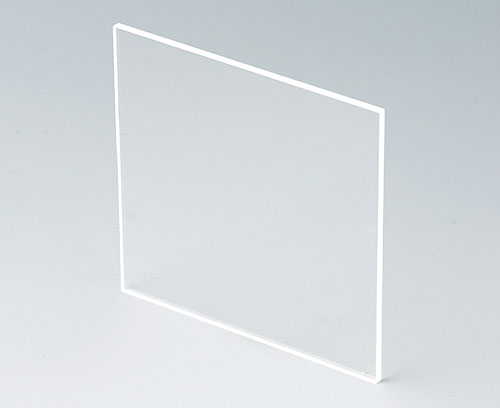

B6123331 Front panel

B6123331

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Close

B6123331

Front panel
product added to your basket
Acrylic glass
transparent
67.5x67.5x2mm

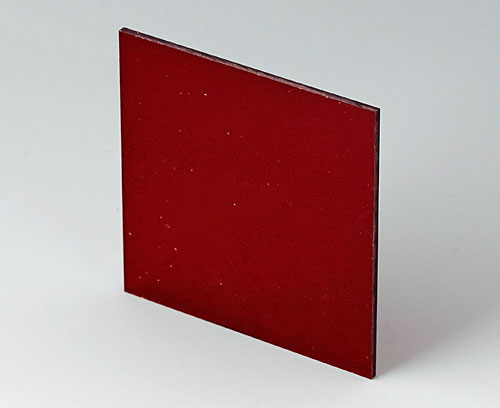

B6123341 Front panel

B6123341

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Close

B6123341

Front panel
product added to your basket
Acrylic glass
red transparent
67.5x67.5x2mm
B6123451 Front panel

B6123451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Close

B6123451

Front panel
product added to your basket
PC (IR)
67.6x67.6x2mm
B6123533 Protection cover

B6123533

Protection cover Protection cover for DIN-MODULAR CASE 72 x 72.

Supply 1 protection cover

Close

B6123533

Protection cover
product added to your basket
PC
transparent
B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132111

Front panel
product added to your basket
Aluminium
matt anodised
91.5x43.4x1.5mm

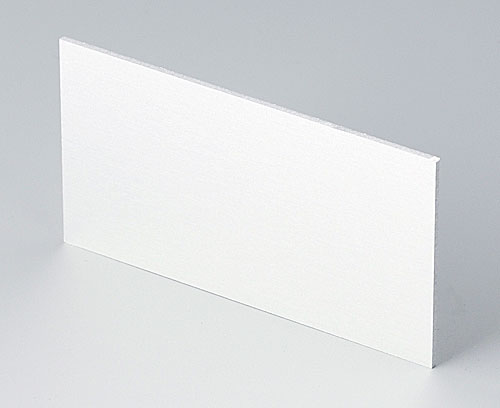

B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Close

B6132112

Rear panel
product added to your basket
Aluminium
matt anodised
73.5x39.6x1mm

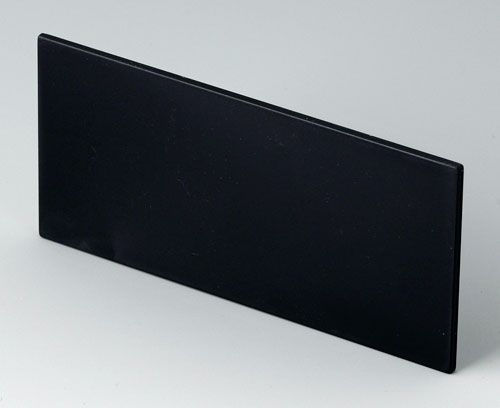

B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
91.6x43.5x2mm

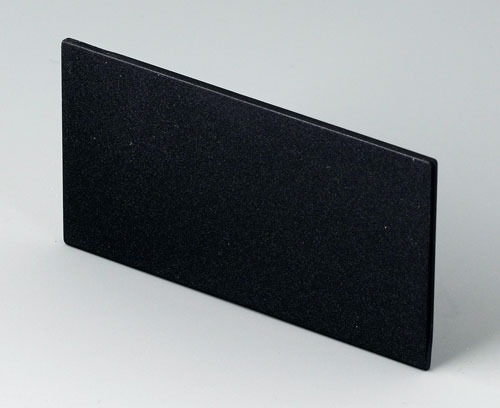

B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Close

B6132222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
73.6x39.75x1.7mm

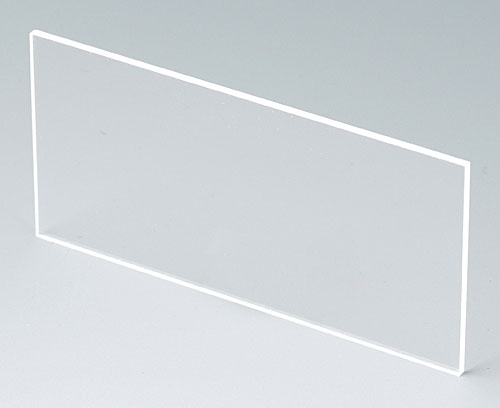

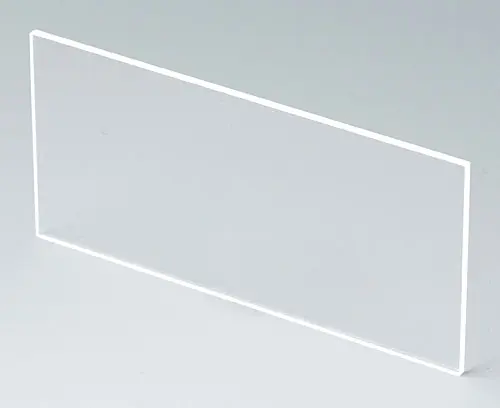

B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132331

Front panel
product added to your basket
Acrylic glass
transparent
91.5x43.4x2mm

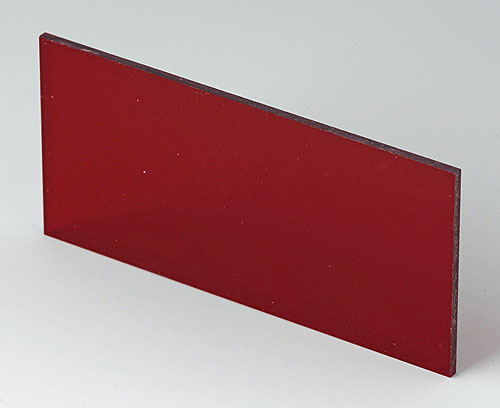

B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132341

Front panel
product added to your basket
Acrylic glass
red transparent
91.5x43.4x2mm
B6132451 Front panel

B6132451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132451

Front panel
product added to your basket
PC (IR)
91.6x43.5x2mm

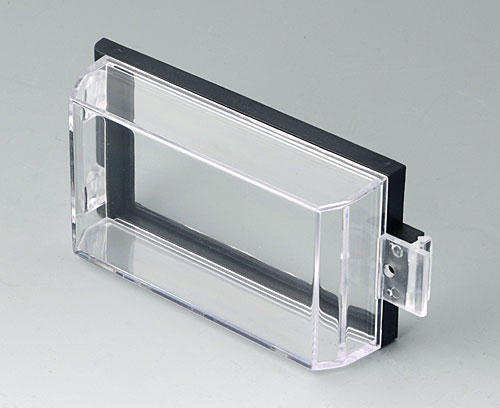

B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 48.

Supply 1 protection cover

Close

B6132533

Protection cover
product added to your basket
PC
transparent
B6134111 Front panel

B6134111

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

Close

B6134111

Front panel
product added to your basket
Aluminium
matt anodised
90.6x90.6x1.5mm
B6134112 Rear panel

B6134112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 96.

Supply 1 rear panel

Close

B6134112

Rear panel
product added to your basket
Aluminium
matt anodised
86.7x71.7x1.5mm

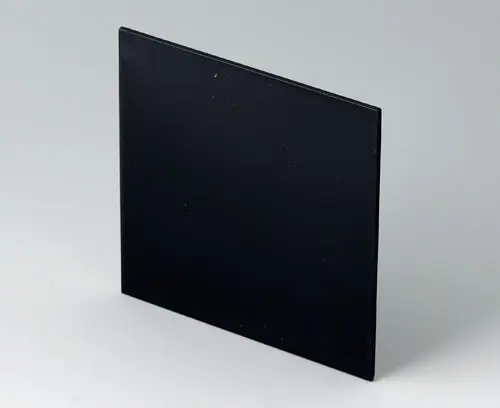

B6134221 Front panel

B6134221

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

Close

B6134221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
90.7x90.7x2mm
B6134222 Rear panel

B6134222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 96.

Supply 1 rear panel

Close

B6134222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
86.8x71.8x1.7mm

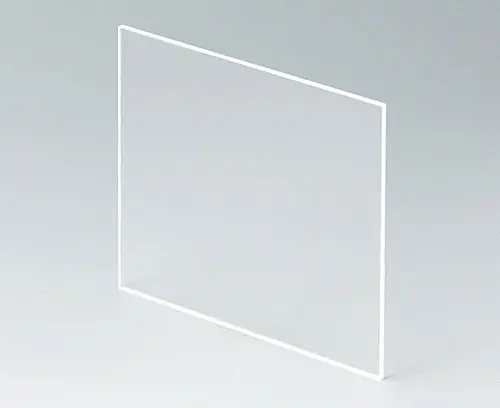

B6134331 Front panel

B6134331

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

Close

B6134331

Front panel
product added to your basket
Acrylic glass
transparent
90.6x90.6x2.2mm

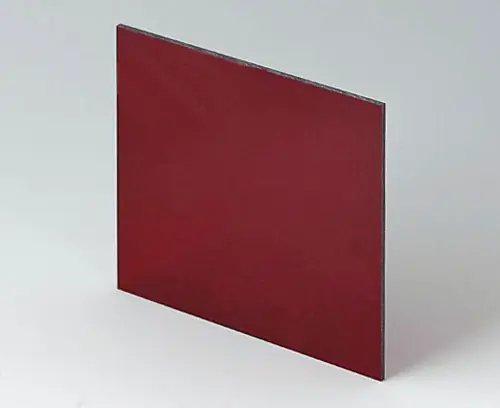

B6134341 Front panel

B6134341

Front panel Front panel for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

Close

B6134341

Front panel
product added to your basket
Acrylic glass
red transparent
90.6x90.6x2mm
B6134451 Front panel

B6134451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 96.

Supply 1 front panel

Close

B6134451

Front panel
product added to your basket
PC (IR)
90.7x90.7x2.2mm

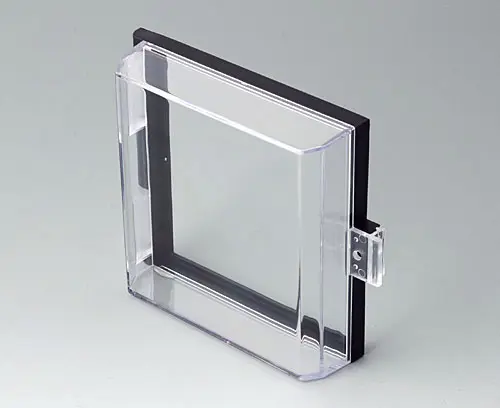

B6134533 Protection cover

B6134533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 96.

Supply 1 protection cover

Close

B6134533

Protection cover
product added to your basket
PC
transparent
B6143111 Front panel

B6143111

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Close

B6143111

Front panel
product added to your basket
Aluminium
matt anodised
139.2x67.3x1.5mm
B6143112 Rear panel

B6143112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

Close

B6143112

Rear panel
product added to your basket
Aluminium
matt anodised
118.9x62.6x1.5mm
B6143221 Front panel

B6143221

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Close

B6143221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
139.3x67.5x2mm
B6143222 Rear panel

B6143222

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

Close

B6143222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
119.1x62.7x2mm
B6143331 Front panel

B6143331

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Close

B6143331

Front panel
product added to your basket
Acrylic glass
transparent
139.2x67.3x2mm
B6143341 Front panel

B6143341

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Close

B6143341

Front panel
product added to your basket
Acrylic glass
red transparent
139.2x67.3x2mm
B6143451 Front panel

B6143451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Close

B6143451

Front panel
product added to your basket
PC (IR)
139.2x67.4x2mm
B6143533 Protection cover

B6143533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 72.

Supply 1 protection cover

Close

B6143533

Protection cover
product added to your basket
PC
transparent
B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Close

B6145111

Front panel
product added to your basket
Aluminium
matt anodised
138x138x1.5mm
B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 144.

Supply 1 rear panel

Close

B6145112

Rear panel
product added to your basket
Aluminium
matt anodised
131.3x118.6x1.5mm
B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Close

B6145331

Front panel
product added to your basket
Acrylic glass
transparent
138x138x3mm
B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 144 x 144.

Supply 1 front panel, 4 screws

Close

B6145341

Front panel
product added to your basket
Acrylic glass
red transparent
138x138x3mm
B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 144.

Supply 1 protection cover, 1 sealing kit

Close

B6145533

Protection cover
product added to your basket
PC
transparent

Customising options for DIN-Modular Cases Type A

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
