SMART-CONTROL - The enclosure for the corner

SMART-CONTROL enclosures

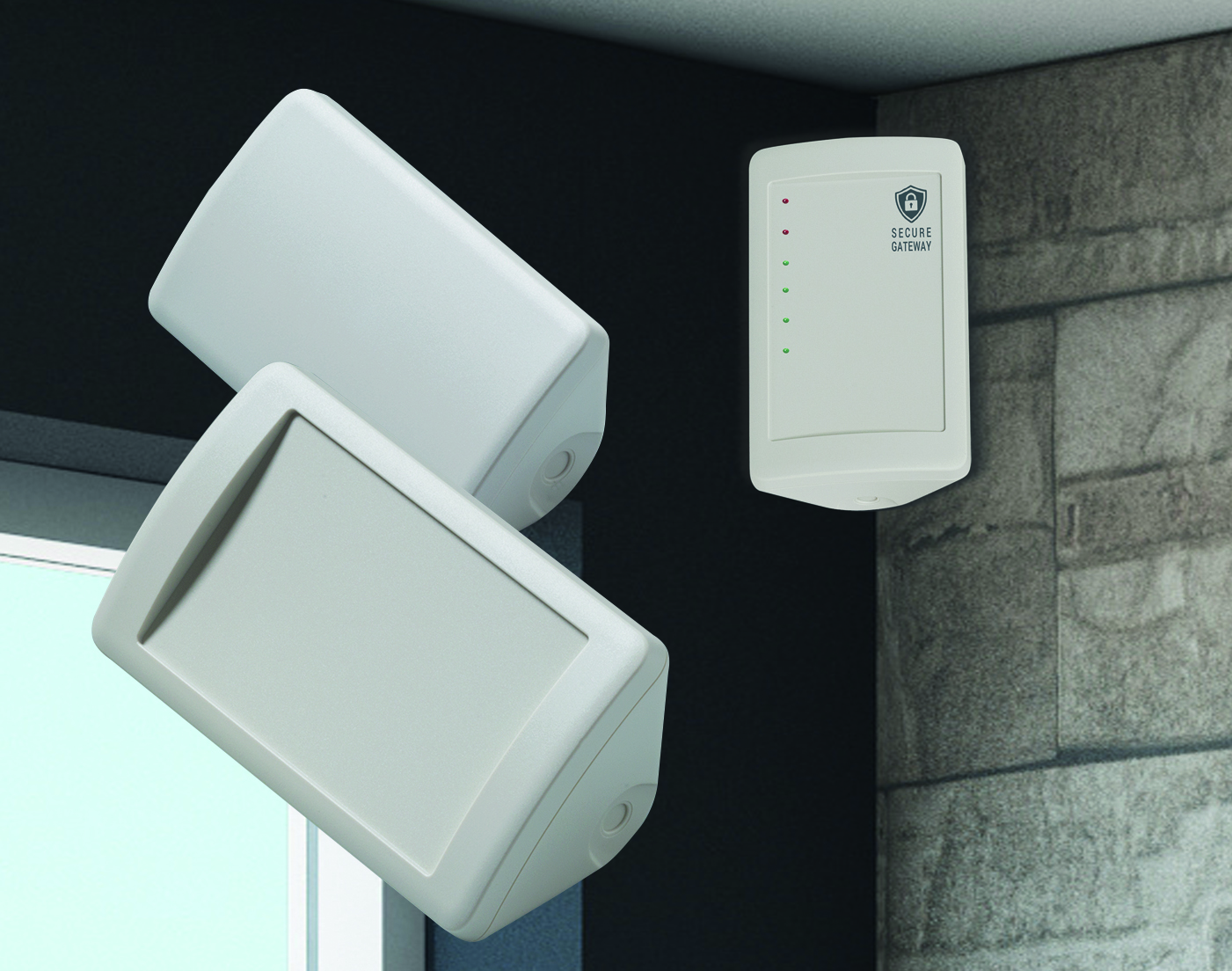

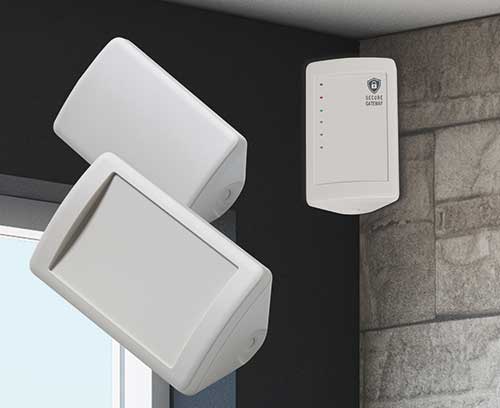

The new SMART-CONTROL by OKW Gehäusesysteme is the first enclosure for easy installation in standard room corners. As a rule, the equipment is placed as high up on the ceiling as possible; this position is ideal for wide-area room monitoring, saves space and protects the equipment from damage. In addition, this enclosure range can be used both on the wall and on the desk at an ergonomically inclined angle.

The plastic enclosures are available in 2 sizes: the smaller version S with 142 x 81 x 46 mm and the version M with 173 x 101 x 59 mm (each in H x W x D). The SMART-CONTROL is available from stock in the flame-resistant material ASA+PC-FR (UL 94 V-0) with high UV protection, in the colour RAL 9002 (off-white). The standard OKW enclosures can be finished by means of mechanical processing, printing / lettering, EMC aluminium coating and assembly processes in accordance with customer specifications – the options are extremely diverse.

The range of wall and table top enclosures was designed in two parts with one top part and one bottom part each. The upper parts can be ordered in 2 different versions – as convex curved parts or with recessed operating areas for membrane keypads. There are fastening pillars in the top part as well as in the bottom part for mounting parts and PCBs. Protection class up to IP55 is possible with the help of an optional seal (available from the accessory range). The individual parts are screwed together on the rear of the enclosure using Torx stainless steel screws. A desktop stand set (accessory) ensures reliable desktop positioning and an ergonomic reading angle of 45° when the enclosure is set up horizontally. Assembly is simple and quick through snap-in installation with an adapter which is screwed directly to the enclosure. The same universal adapter is also used to mount the enclosure on the wall or, innovatively, in 90° inside corners. The wall suspension element is also included in the range of accessories.

The SMART-CONTROL's fields of application are extremely diverse and range from security and monitoring technology, environmental technology, IoT/IIoT, gateways, measurement and control technology to medical and laboratory technology.

Link website SMART-CONTROL
