MEDITEC

Meditec

Large instrument enclosures

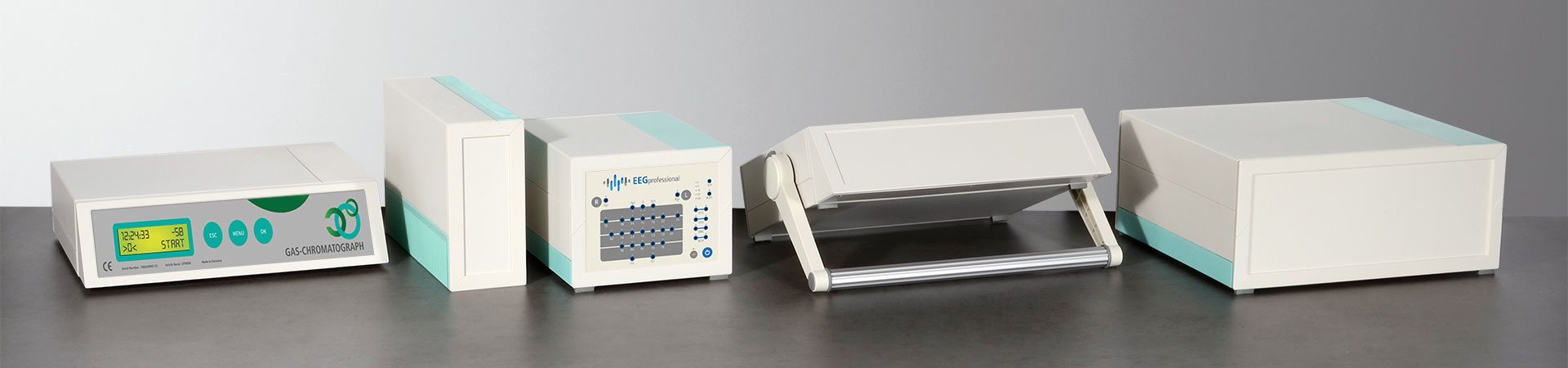

MEDITEC plastic enclosures are characterised by a modern, stylish and functional design which is ideal for housing contemporary high-quality electronics equipment.

  • stylish and functional design
  • versatile design for desktop, wall mount and portable applications
  • robust construction with strengthening ribs
  • easy assembly technique

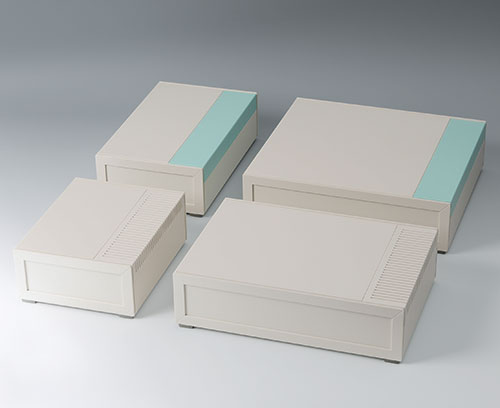

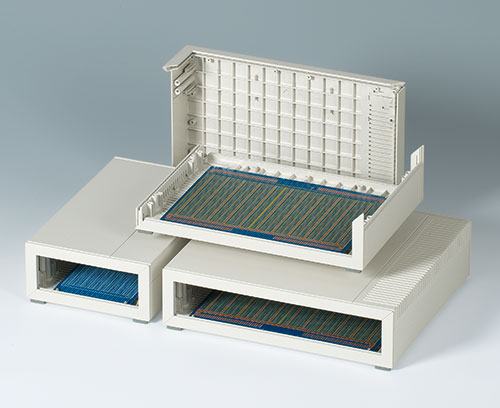

  • four plan sizes in accordance with eurocard-size PCBs, double and extended

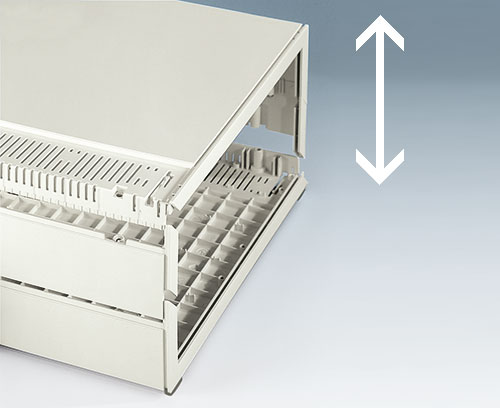

  • two standard heights, increased by adding side panels

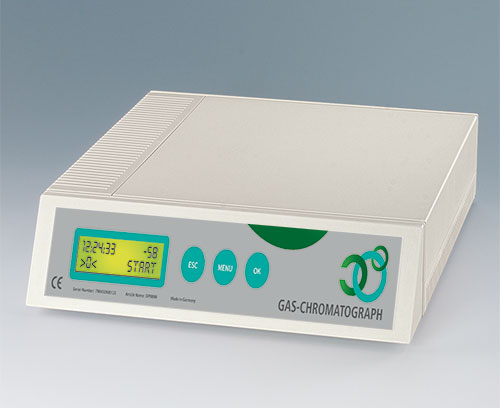

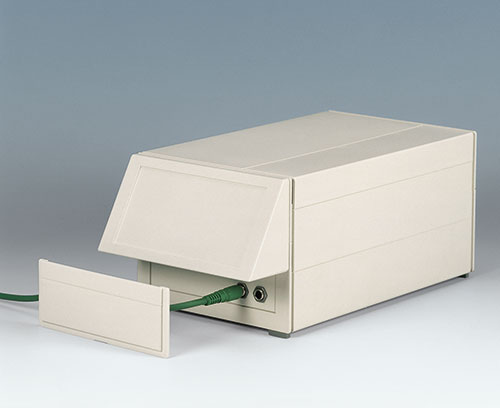

  • ergonomic sloping control panel; if also using a side panel, order the infill panel to close the open gap under the sloping control panel
  • plastic front and rear panels for identical surface finishes, easy to machine

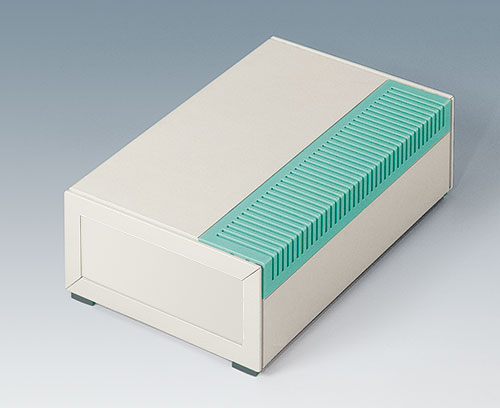

  • clip-in side trims with/without ventilation slots, in case colour or lagoon green, hide the case fixing screws, other colours on request
  • four screw-on non-slip feet included

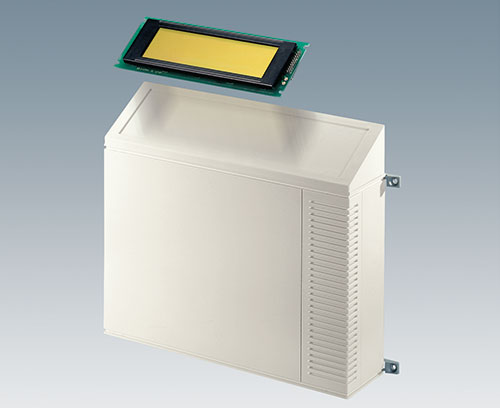

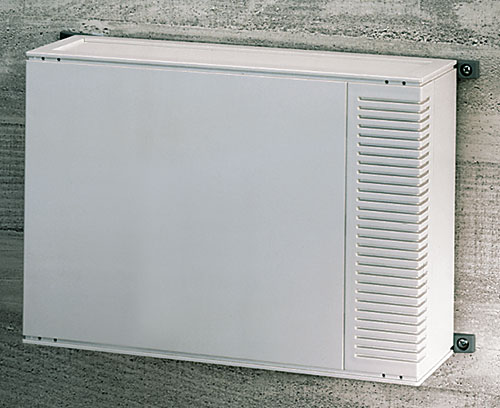

  • optional wall mounting with wall mounting brackets

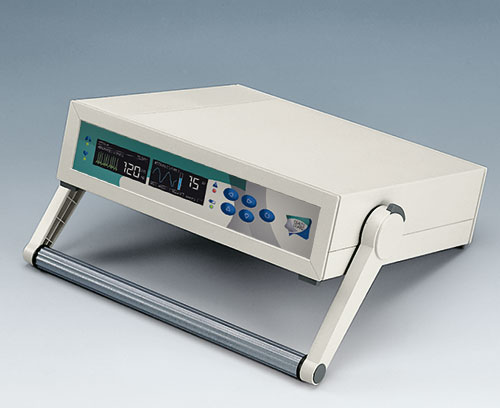

  • versions with handle; for portable applications, if necessary, the adjustment mechanism allows the user to set a practical angle, in increments of 30°

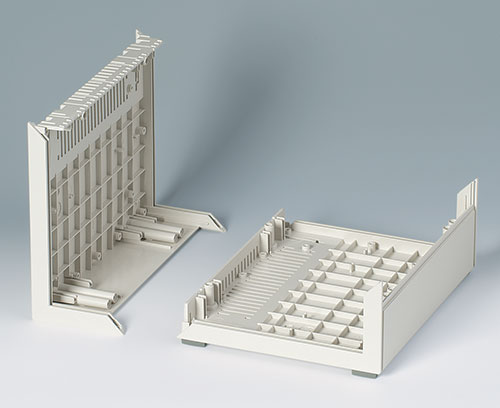

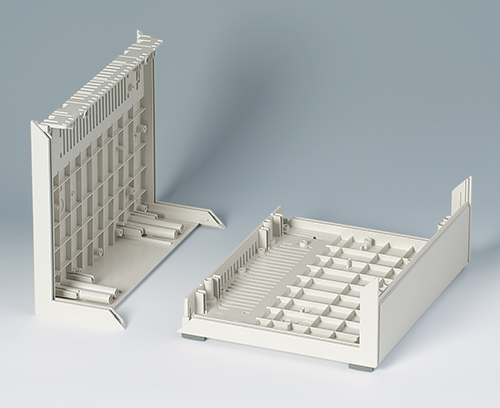

  • internal screw pillars for PCBs and components
  • Application Examples

Application fields

  • Medical, wellness and laboratory devices
  • Feedback control
  • Test and measurement systems
  • Control peripherals, modems and interfaces
  • Communication and network technology
  • Data collection
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".



Enclosures without handle

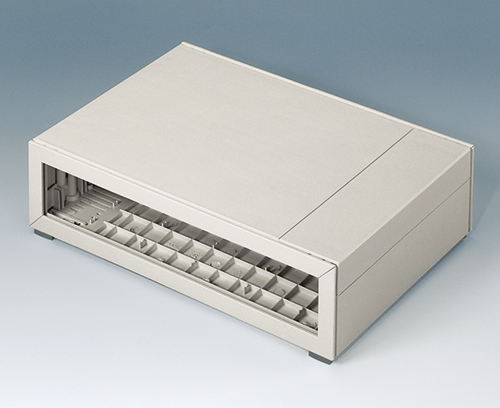

MEDITEC enclosures without handle

Enclosures with handle

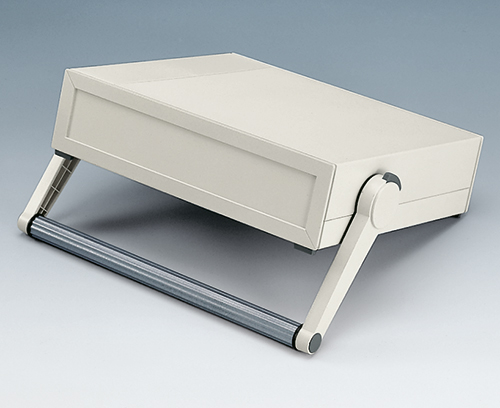

MEDITEC enclosures with handle

Separate parts for individual combinations

MEDITEC separate parts for individual combinations

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
B2030007 Side panels 220, without holes

B2030007

Side panels 220, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Close

B2030007

Side panels 220, without holes ABS (UL 94 HB)
off-white RAL 9002
B2030107 Side panels 220, with holes for handle

B2030107

Side panels 220, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Close

B2030107

Side panels 220, with holes for handle ABS (UL 94 HB)
off-white RAL 9002
B2031007 Side panels 160, without holes

B2031007

Side panels 160, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

Close

B2031007

Side panels 160, without holes ABS (UL 94 HB)
off-white RAL 9002
B2031107 Side panels 160, with holes for handle

B2031107

Side panels 160, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

Close

B2031107

Side panels 160, with holes for handle ABS (UL 94 HB)
off-white RAL 9002
B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Close

B2116007

Sloping control panel E ABS (UL 94 HB)
off-white RAL 9002
B2116307 Front / rear panel E, flat

B2116307

Front / rear panel E, flat For case without side panels.

Supply 1 front panel

Close

B2116307

Front / rear panel E, flat ABS (UL 94 HB)
off-white RAL 9002
141.6x55.6x3mm
B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Close

B2116407

Front / rear panel Z1 ABS (UL 94 HB)
off-white RAL 9002
141.6x105.6x3mm
B2116507 Handle bar E

B2116507

Handle bar E For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply 2 side arms, 1 al-profile, antislipping device, lid, assembly kit

Close

B2116507

Handle bar E PA 6
off-white RAL 9002
B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

Close

B2116707

Infill panel E ABS (UL 94 HB)
off-white RAL 9002
142x55x5mm
B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

Close

B2129007

Sloping control panel D ABS (UL 94 HB)
off-white RAL 9002
B2129307 Front / rear panel D, flat

B2129307

Front / rear panel D, flat For case without side panels.

Supply 1 front panel

Close

B2129307

Front / rear panel D, flat ABS (UL 94 HB)
off-white RAL 9002
271.6x55.6x3mm
B2129407 Front / rear panel Z1

B2129407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Close

B2129407

Front / rear panel Z1 ABS (UL 94 HB)
off-white RAL 9002
271.6x105.6x3mm
B2129507 Handle bar D

B2129507

Handle bar D For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply 2 side arms, 1 Al-profile, antislipping device, lid, assembly kit

Close

B2129507

Handle bar D PA 6
off-white RAL 9002
B2129707 Infill panel D

B2129707

Infill panel D When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version D

Supply 1 front cover (for locking)

Close

B2129707

Infill panel D ABS (UL 94 HB)
off-white RAL 9002
272x55x5mm
B2133012 Wall mounting brackets

B2133012

Wall mounting brackets Wall mounting brackets for simple external wall assembly.

Supply 4 Wall mounting brackets, screws

Close

B2133012

Wall mounting brackets PA 6
volcano
B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Close

B2134012

Stacking elements PA 6
volcano
B2135017 Connectors

B2135017

Connectors For secure connection of 2 side panels. Screwless assembly, simply pin and lock.

Supply 4 connectors

Close

B2135017

Connectors ABS (UL 94 HB)
off-white RAL 9002

Customising options for Meditec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
