C2320147

Cable grommet

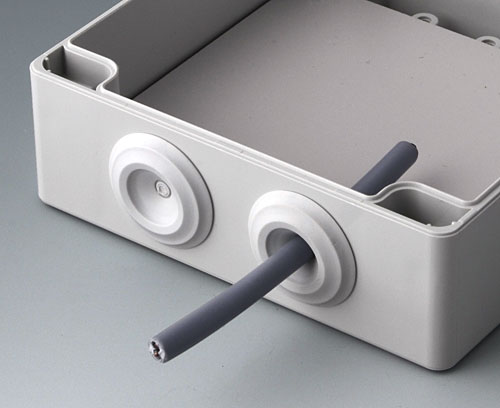

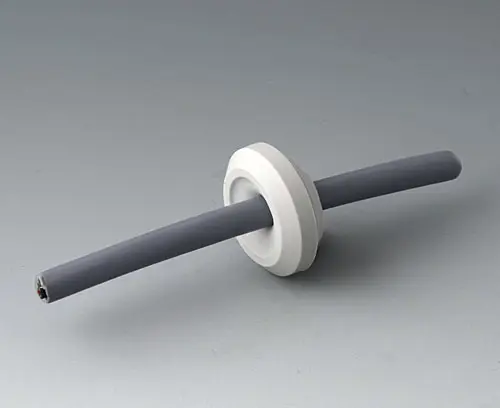

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply

1 cable grommet

  • To be used for
AltText

C3010101

SNAPTEC 100 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Close

C3010101

SNAPTEC 100 x 100
product added to your basket
ABS (UL 94 HB)
light grey RAL 7035
100x100x80mm
IP 65
AltText

C6011141

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011141

SMART-BOX WIDTH 110
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x110x60mm
IP 66
AltText

C6011201

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011201

SMART-BOX WIDTH 110
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
200x110x60mm
IP 66
AltText

C6013161

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013161

SMART-BOX WIDTH 130
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
160x130x60mm
IP 66
AltText

C6013221

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013221

SMART-BOX WIDTH 130
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x130x60mm
IP 66
AltText

C6015181

SMART-BOX WIDTH 150 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

Close

C6015181

SMART-BOX WIDTH 150
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x150x60mm
IP 66
AltText

C6017281

SMART-BOX WIDTH 170 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6017281

SMART-BOX WIDTH 170
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
280x170x60mm
IP 65
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Protection class
Colour
light grey RAL 7035
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Sweden
