B4126106

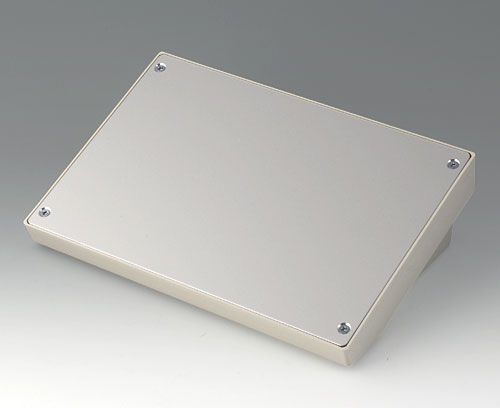

Front panel SL

Front panel SL for mounting of all kinds of operating elements.

Supply

1 front panel, 4 screws diameter 4.0 mm

  • To be used for
  • View Customising Options
AltText

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4026117

DATEC-TERMINAL SL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
264x180x86mm
IP 54 opt.

Customising options for B4126106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
259.4 mm
Depth
176 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
245 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
