A9021665

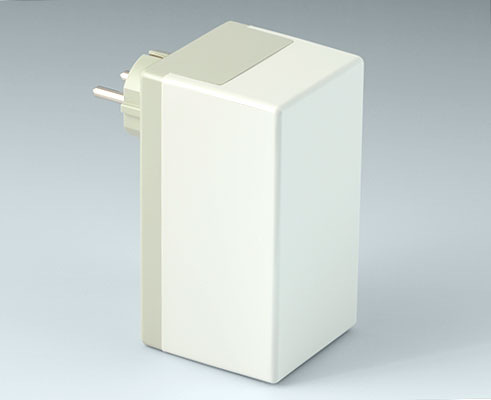

PLUG CASE F / D, Vers. I

Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version

Without integrated socket, plug according to DIN 49441 R2

Supply

1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for A9021665

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket

Customising options for A9021665

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Bottom part with plug section

Top part with integrated socket
Colour
Bottom part with plug section pebble grey RAL 7032,
Top part off-white RAL 9002
Standards
RoHS compliant
DIN 49441 R2
REACH compliant
Length
120 mm
Width
65 mm
Height
65 mm
PCB length, base
96 mm
PCB width, base
58 mm
PCB length, top
95 mm
PCB width, top
58.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
150 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9021665 and don't forget to request a quotation!
