Star-Knobs

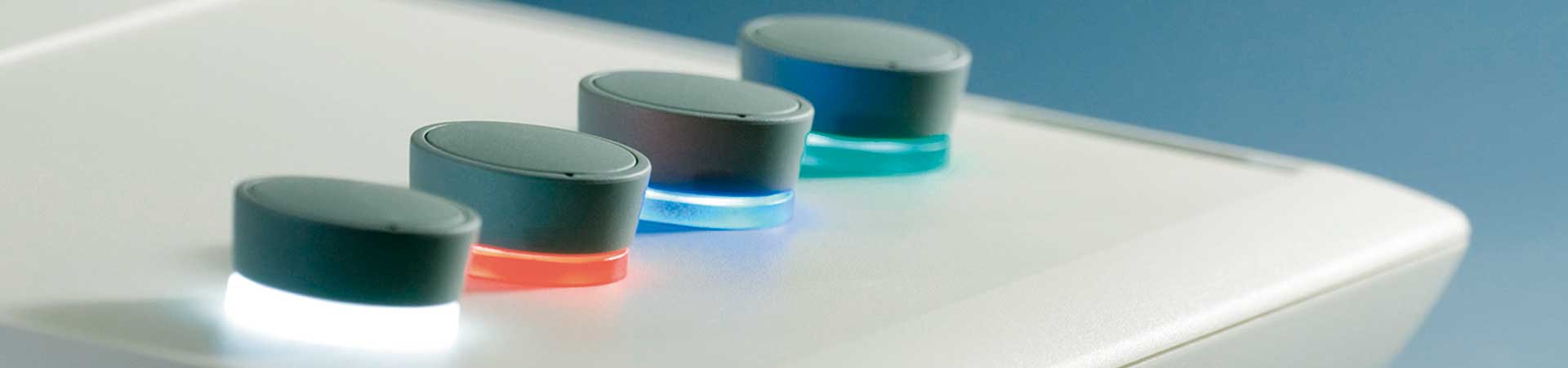

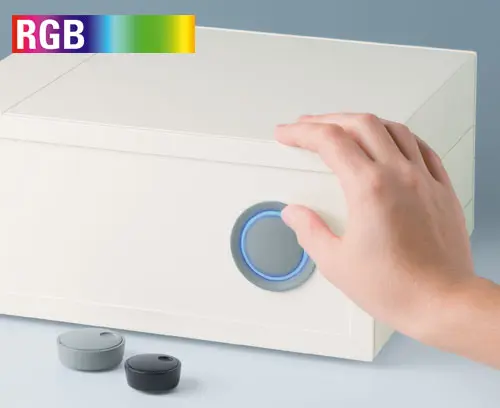

Modern illuminated tuning knobs

Our STAR-KNOBS are designed for menu driven interfaces, click rotation and click push-in for ‘OK’. This reduces the number of knobs and controls required on the front panel. The illumination is a visual highlight and enhances user operation of the equipment.

  • innovative design for flush fitting or surface mounting

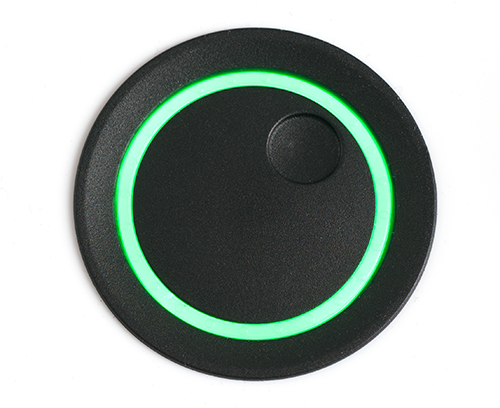

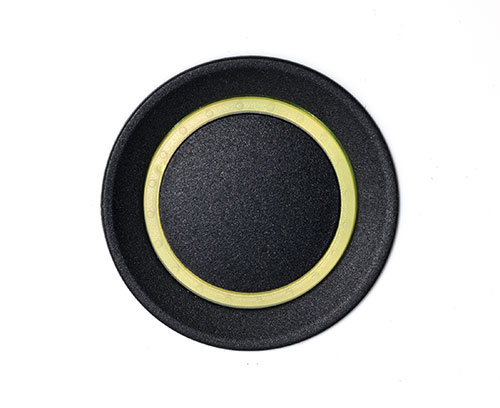

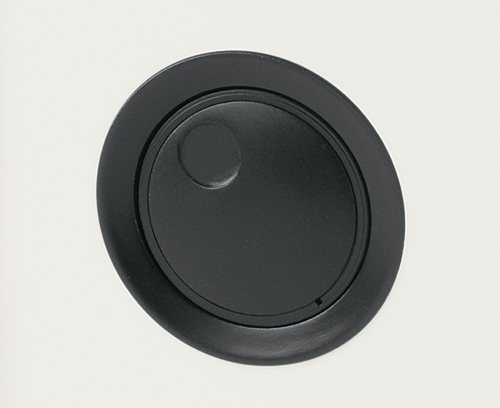

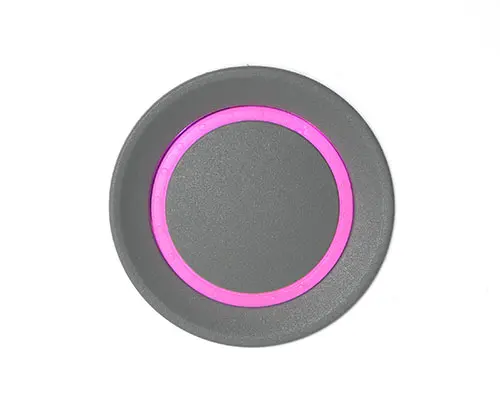

  • the flush-fitting version represents an attractive transition between the knob and the front of the device; the knob can be illuminated, that is, a ring lights up between the recess and the knob cover

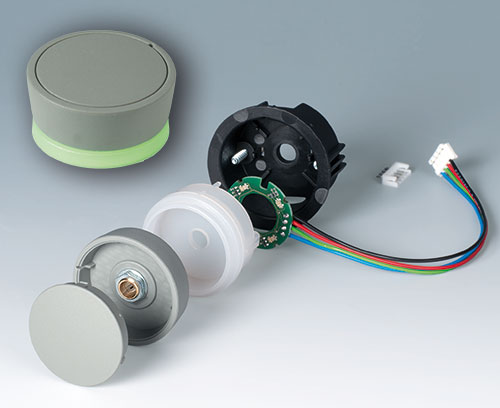

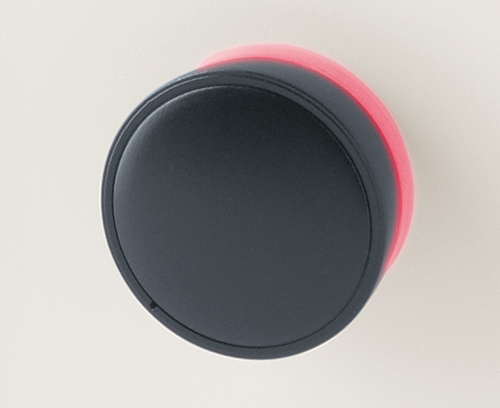

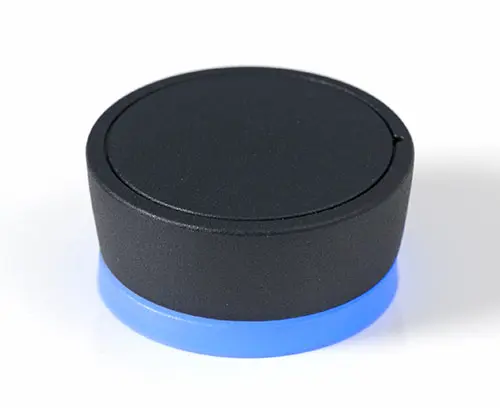

  • with the surface-mounted version, the knob design makes a great impression thanks to the slight inclination of the body towards the inner axis, thus allowing ergonomically comfortable operation; the knob is mounted on an approx. 3 mm high ring, which can be illuminated if required

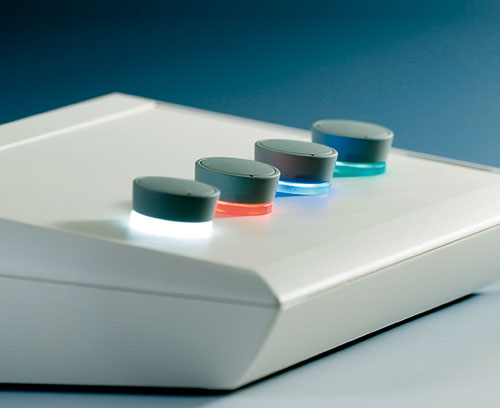

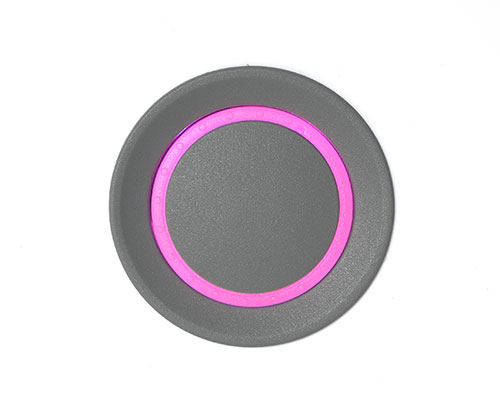

  • illumination possible with modern, energy-saving SMD LED technology for power supply units with 5 V: either white backlight for the colours diamond, emerald and sapphire or RGB backlight for individual colours as accessory

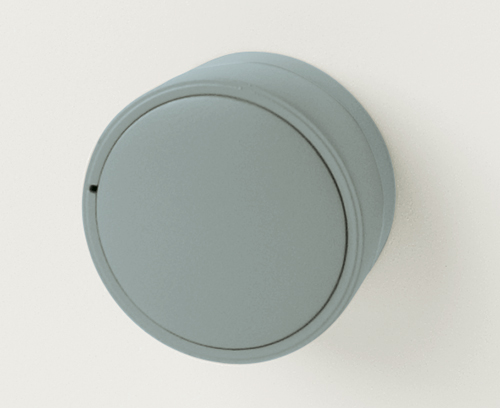

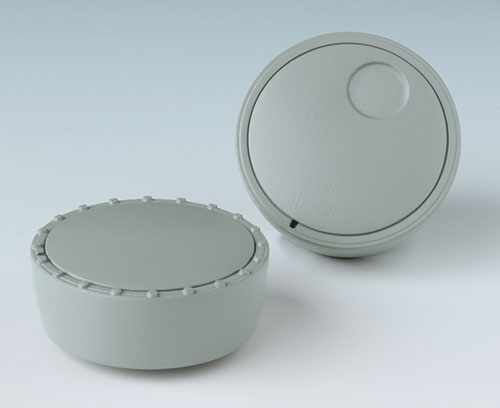

  • knob with or without knurls
  • cover with or without finger recess for fine adjustments

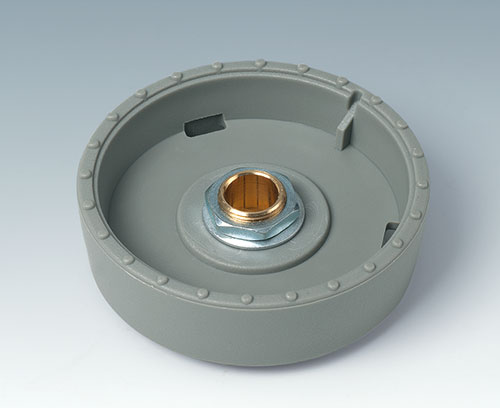

  • tried and tested collet fixture system with secure fit on the axle
  • max. torques: assembly = 1.5 Nm, function = 1.2 Nm

knob sizes  boreholes
ø 33 mm  6 mm, 1/4"
ø 41 mm   6 mm

Minimum Components for 1 STAR-KNOB:
1 knob, 1 cover, 1 assembly kit

Generate PDF
  • Application Examples

Application fields

For rotary potentiometers or rotary pulse generators with round shaft ends in accordance with DIN 41591, including touch function.
Measuring and control technology, health care, heating and air conditioning, communication devices, building management, smart factory,

  • Select Versions
  • Accessories
  • View Customising Options
  • Documents

Select which version/size you want below or browse full product list

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Close

A6300000

Spanner
product added to your basket
B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

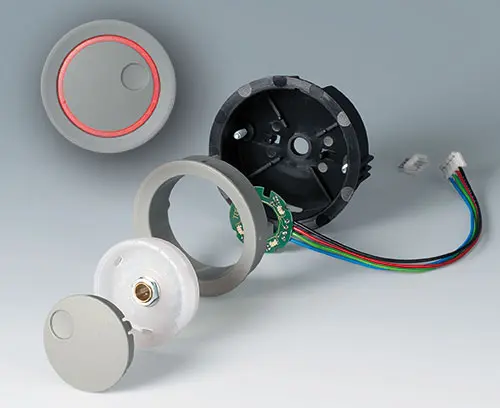

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Close

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
product added to your basket
B8733001 Assembly support 33

B8733001

Assembly support 33 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

Close

B8733001

Assembly support 33
product added to your basket
ABS (UL 94 HB)
green
B8733004 LED illumination kit

B8733004

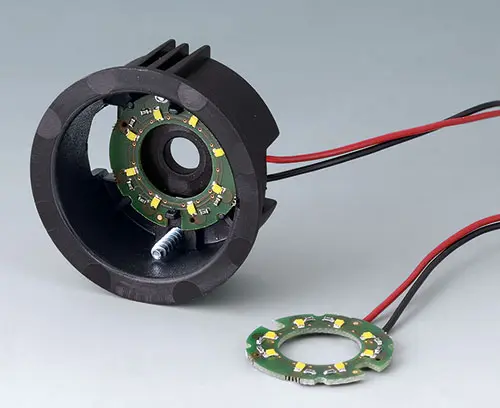

LED illumination kit PCB D = 27 mm with 8 LEDs (white light), SMD-technology, connecting cable 120 mm long, 2-pin connector at the end, incl. PCB connector. Universally applicable for knob sizes 33 and 41 mm.
Recommended for flush-fitting version: only in conjunction with the translucent* knob.
Recommended for surface-mounted version: only in conjunction with the translucent* assembly kit.
(*translucent = colours diamond, ruby, emerald, sapphire).

Supply 1 LED illumination kit

Close

B8733004

LED illumination kit
product added to your basket
B8741001 Assembly support 41

B8741001

Assembly support 41 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

Close

B8741001

Assembly support 41
product added to your basket
ABS (UL 94 HB)
green

Customising options for Star-Knobs

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
