Accessories for enclosures
A8145300
Lid 45 x 30
Suitable for case A8045150 and A8045250.
Supply1 lid
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A8145300
Please select the product details you would like to include in the PDF.
Add to my basket
A8045150
POTTING BOXES, Vers. I
Special case for potting electronic assemblies. Especially resistant to deformation, extreme temperatures, not resistant to fracture. Production-limited surface quality.
Supply 1 case
A8045150
POTTING BOXES, Vers. Iproduct added to your basket
black RAL 9005
45.1x30.1x15mm

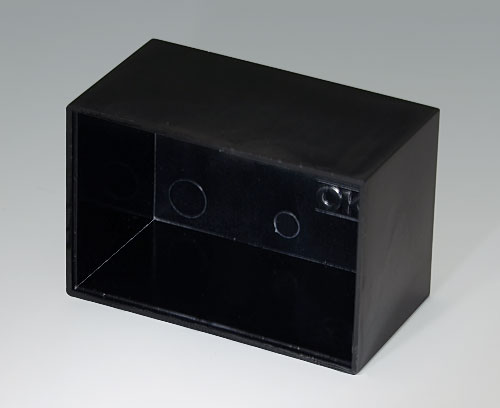

A8045250
POTTING BOXES, Vers. I
Special case for potting electronic assemblies. Especially resistant to deformation, extreme temperatures, not resistant to fracture. Production-limited surface quality.
Supply 1 case
A8045250
POTTING BOXES, Vers. Iproduct added to your basket
black RAL 9005
45.1x30x24.9mm
Customising options for A8145300
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 161 KB
- AutoCAD DWG-File 290 KB
- AutoCAD DXF-File 864 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 36 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007350.x_t 103 KB
- 00007350.step 268 KB
- 00007350.sat 211 KB
Weight/1 part
2.4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Taiwan
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A8145300 and don't forget to request a quotation!
