CIME/E/FE0000E

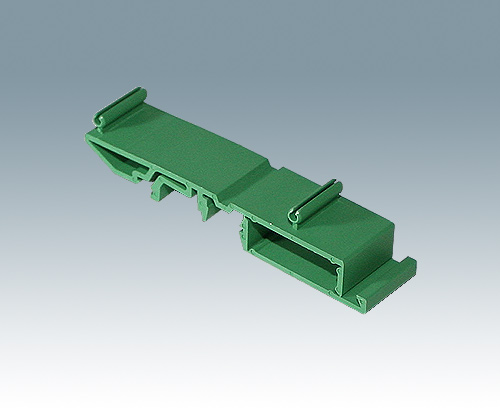

RAILTEC SUP. EXT 107, DIN rail foot

DIN rail foot for TH35 and G32 DIN rails. Fits into grooves in the RAILTEC-SUPPORT extruded base section. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.

Supply

1 DIN rail foot

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for CIME/E/FE0000E

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Material

Colour
green
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Width
20.5 mm
Height
12.5 mm
Depth
91.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
