B3407022

SMART-TERMINAL 200

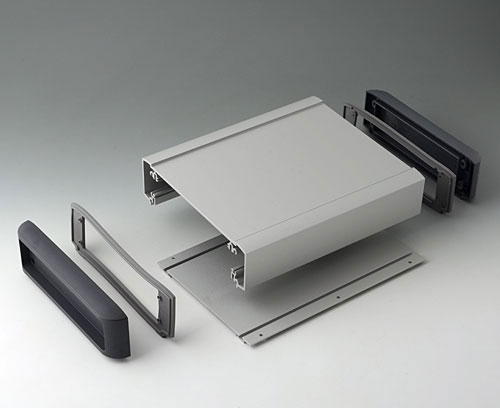

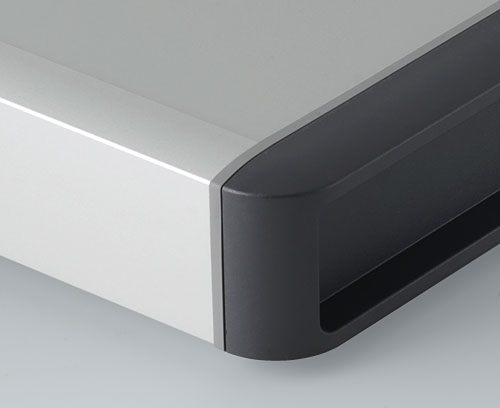

Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply

Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B3407022

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "station"

B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting mouldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

B3507030

Case canting kit
product added to your basket

lava

Accessory "wall/holder"

A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
product added to your basket

anthracite grey RAL 7016
100x100x20mm
B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.
Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

B3507020

Wall suspension element
product added to your basket

Accessory "screws"

A0330080 Screw M3 x 8 mm (T10)

A0330080

Screw M3 x 8 mm (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

A0330080

Screw M3 x 8 mm (T10)
product added to your basket
B3500001 Set of M3 square-head nuts

B3500001

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

B3500001

Set of M3 square-head nuts
product added to your basket

Customising options for B3407022

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Profiles

Side covers

Designer seals
Protection class
Colour
Profiles matt anodised,
Side covers lava,
Designer seals volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
242 mm
Width
170 mm
Height
50 mm
PCB length, top
200 mm
PCB width, top
117 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
743 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3407022 and don't forget to request a quotation!
