B3507025

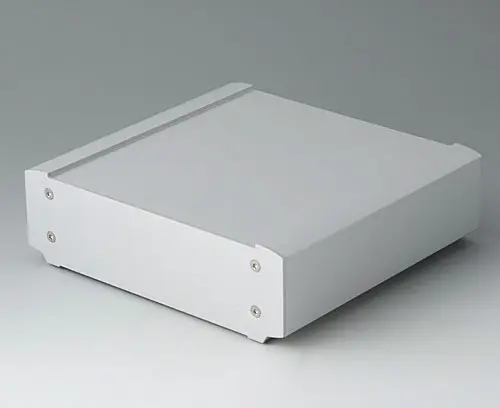

Aluminium end plate

(Order when specifying a SMART-TERMINAL enclosure from individual parts). Simple end plate for fitting to the case profile. Fitted by four screws.
Cannot to be used in conjunction with the designer seals.
Enclosure length = profile length + 4 mm (when using the end plates on both sides).

Supply

1 end plate, 4 screws

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for B3507025

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

A9209229 Anti-slide feet 8.5 x 2.2 mm

A9209229

Anti-slide feet 8.5 x 2.2 mm For SMART-TERMINAL enclosures fitted with the aluminium end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

A9209229

Anti-slide feet 8.5 x 2.2 mm
product added to your basket
black

Customising options for B3507025

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
42 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3507025 and don't forget to request a quotation!
