Accessories for enclosures
A9257409

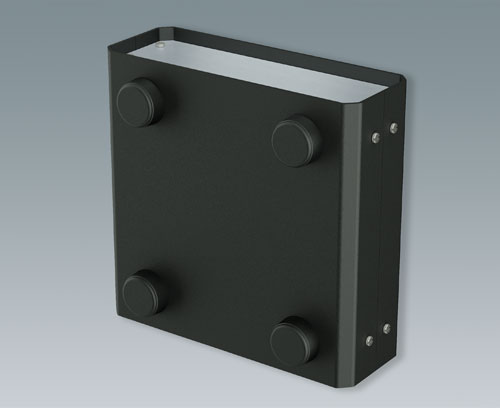

Case feet, Vers. I
Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.
VersionWithout tilt legs
Supply4 foot mouldings, 4 rubber inserts, 4 self-tapping screws
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9257409
Please select the product details you would like to include in the PDF.
Add to my basket
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Diameter
⌀ 30 mm
Height
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 96 KB
- AutoCAD DWG-File 272 KB
- AutoCAD DXF-File 791 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,711 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020304.x_t 396 KB
- 00020304.step 824 KB
- 00020304.sat 3,804 KB
Weight/1 part
28 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
