C3604708 COMMUNITEC M, basic housing
Scroll

C3604708

COMMUNITEC M, basic housing

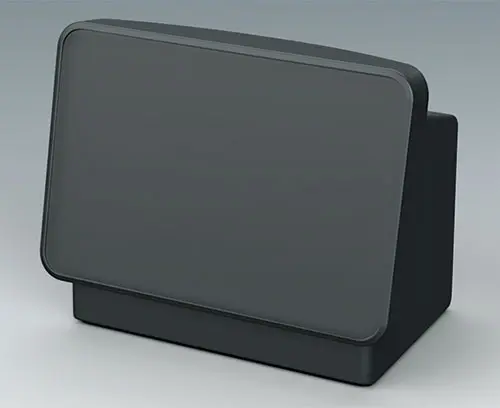

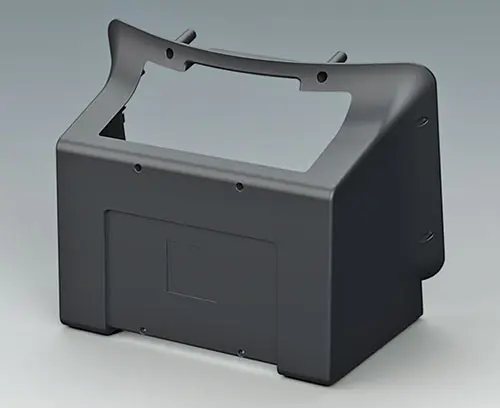

Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.

Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.

Supply

1 basic housing

2D PDF Drawing
3D PDF View
3D/2D download Generate my PDF Datasheet

Generate Your PDF Datasheet for C3604708

Please select the product details you would like to include in the PDF.

Close
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
  • Components/Accessories
  • View Customising Options
  • Video

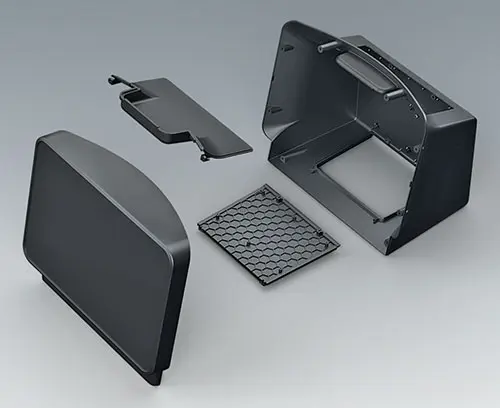

System components to complete

C3602601 Handle recess panel

C3602601

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Close

C3602601

Handle recess panel
product added to your basket
ASA+PC (UL 94 V-0)
traffic grey A RAL 7042
C3602607 Handle recess panel

C3602607

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Close

C3602607

Handle recess panel
product added to your basket
ASA+PC (UL 94 V-0)
traffic white RAL 9016
C3602608 Handle recess panel

C3602608

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Close

C3602608

Handle recess panel
product added to your basket
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
C3602807 Bottom panel

C3602807

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

Close

C3602807

Bottom panel
product added to your basket
ASA+PC (UL 94 V-0)
traffic white RAL 9016
188x150x5mm
C3602808 Bottom panel

C3602808

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

Close

C3602808

Bottom panel
product added to your basket
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
188x150x5mm
C3604407 Operating panel M

C3604407

Operating panel M

Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Supply 1 operating panel, assembly kit incl. 4 non-slip feet

Close

C3604407

Operating panel M
product added to your basket
ASA+PC (UL 94 V-0)
traffic white RAL 9016
328x78x275mm
C3604408 Operating panel M

C3604408

Operating panel M

Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Supply 1 operating panel, assembly kit incl. 4 non-slip feet

Close

C3604408

Operating panel M
product added to your basket
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
328x78x275mm

Accessory "screws"

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your basket
Stainless steel

Customising options for C3604708

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

  • Technical Data
  • 3D-Models & Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 40
Necessary accessories: operating panel, bottom panel, and handle recess panel
Colour
anthracite grey RAL 7016
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
340 mm
Depth
194 mm
Height
273 mm
PCB length, base
266 mm
PCB width, base
148 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
681 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for C3604708 and dont forget to request a quotation!
