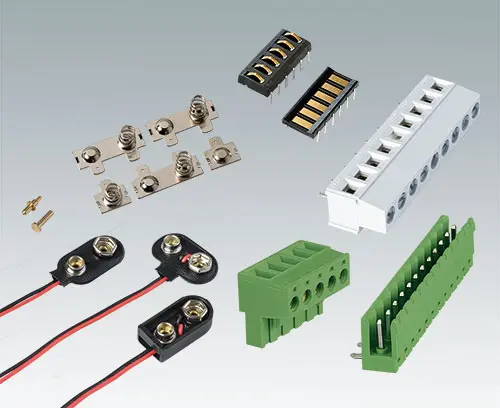

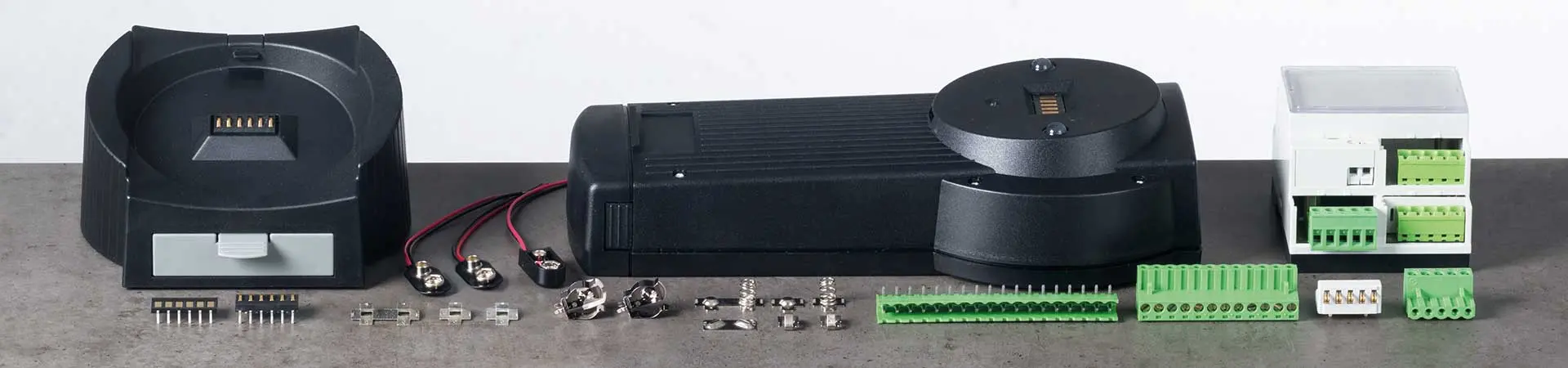

Contacts, connections

Contacts, connections

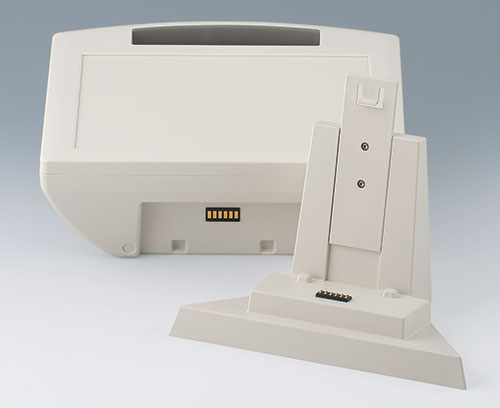

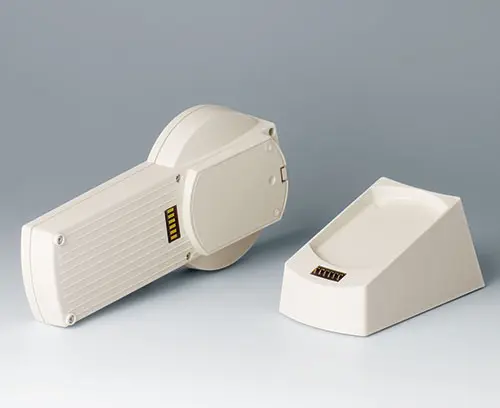

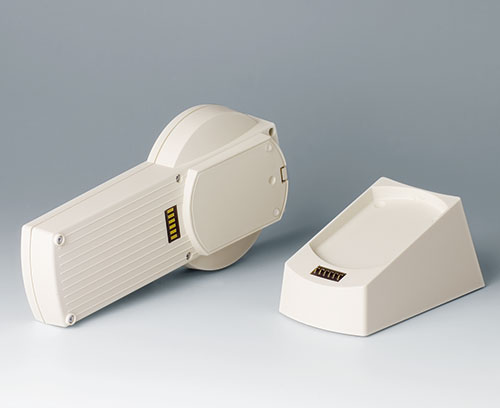

  • We offer a range of contacts for cordless energy and data transmission. The gold-plated surfaces are highly conductive and corrosion-resistant, thus guaranteeing secure and reliable connection between the enclosures and station/holder.

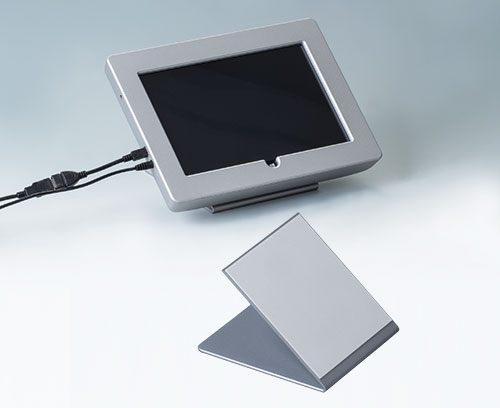

  • The OKW range already includes a selection enclosures, stations and holders with pre-moulded apertures for fitting these contacts. In this way, the user can charge batteries in the device and then transmit data wirelessly in the field – ideal for mobile communication equipment!

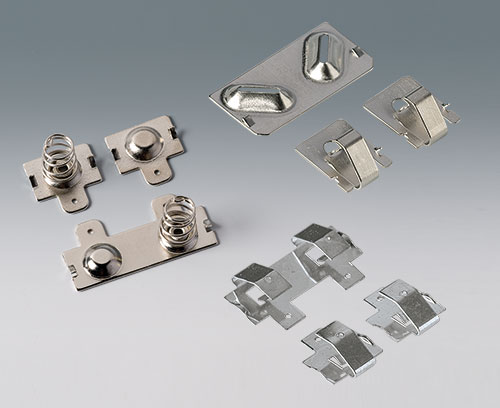

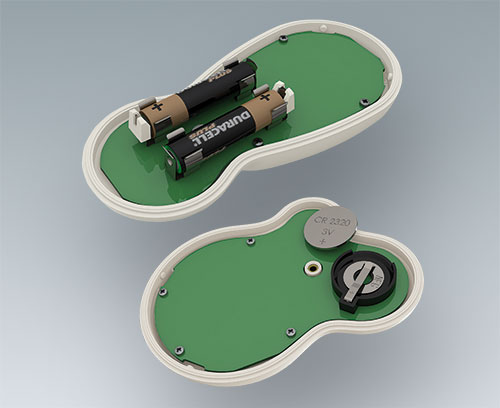

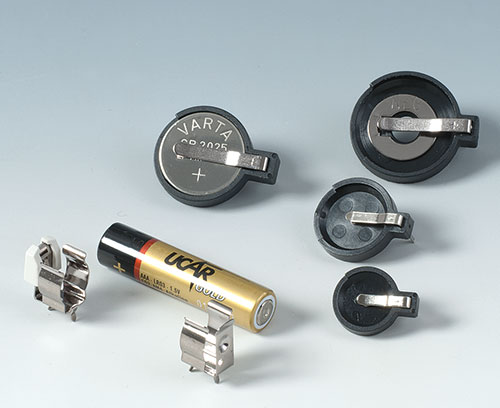

  • Huge range of battery clips, suitable for OKW enclosures.

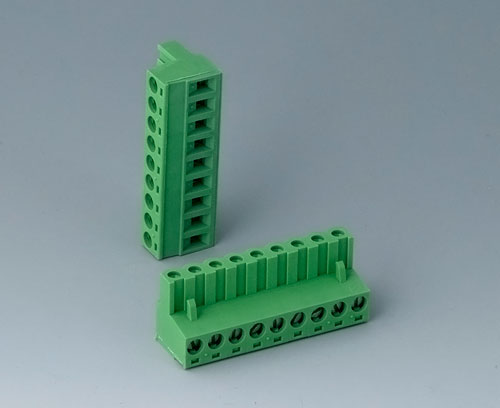

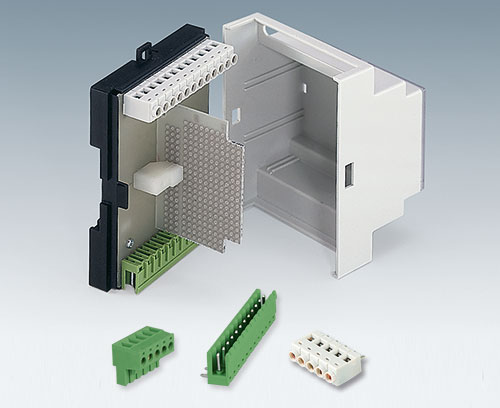

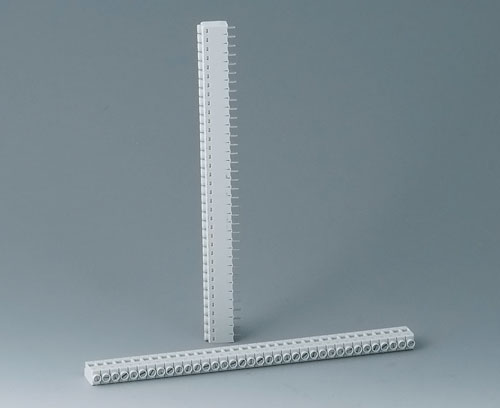

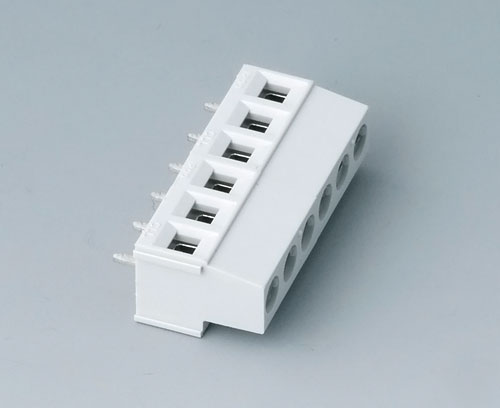

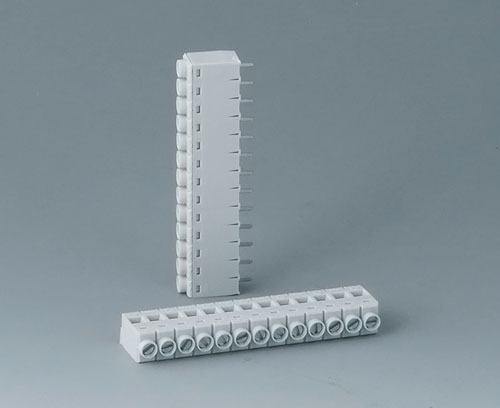

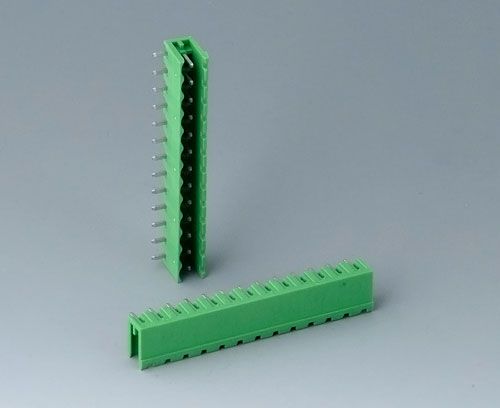

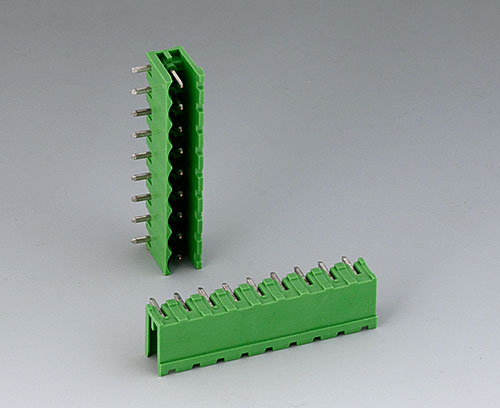

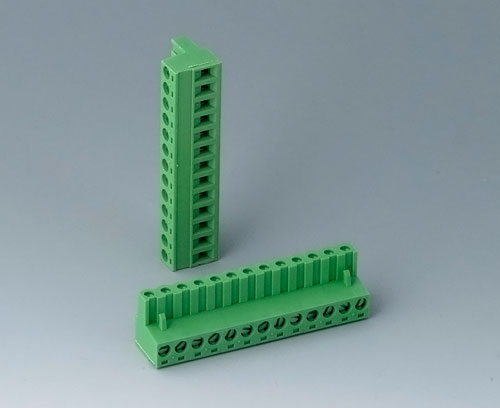

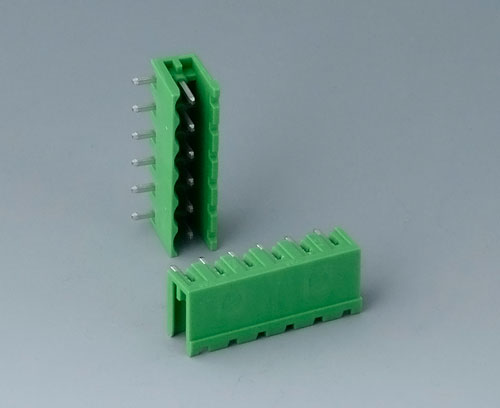

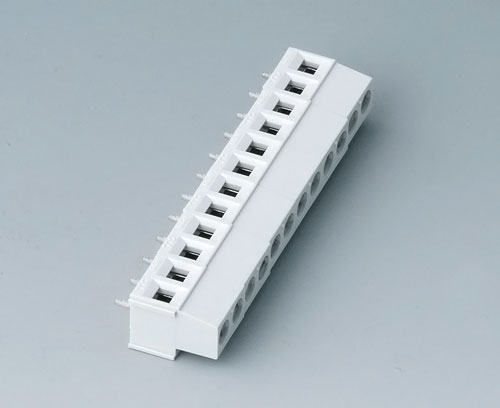

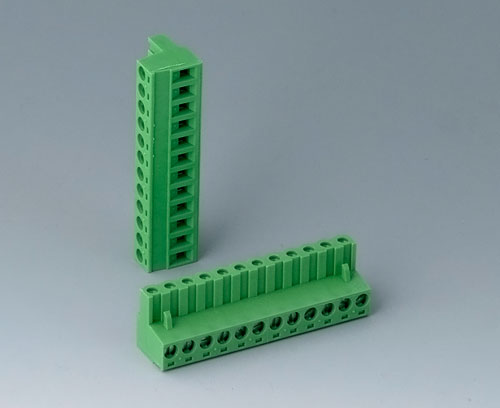

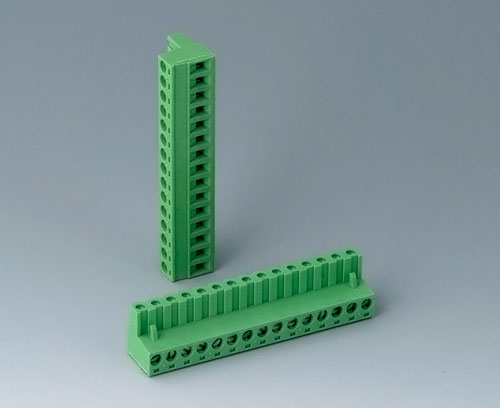

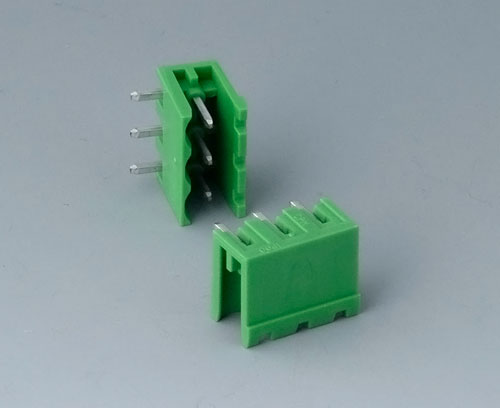

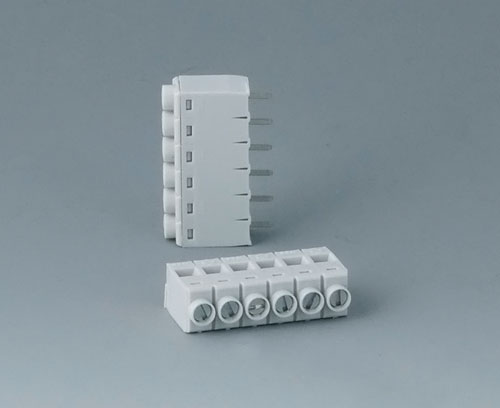

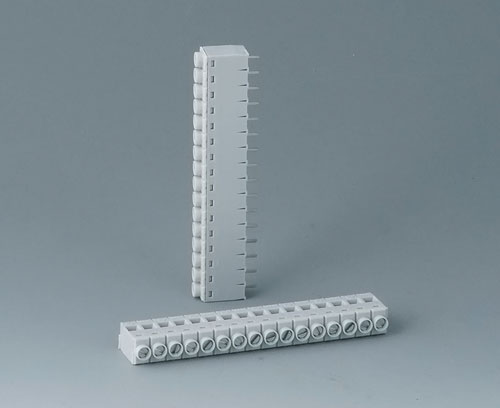

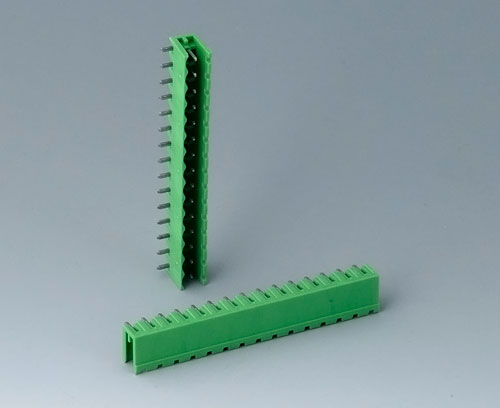

  • Different terminal blocks and plug headers.
  • Browse Full List
  • Catalogue Documents

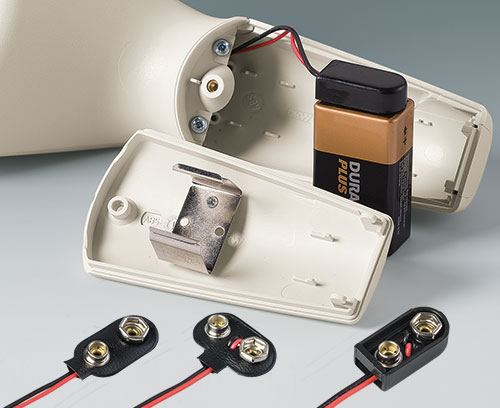

A9156002 Plug-in contact, 1 x 9 V (PP3)

A9156002

Plug-in contact, 1 x 9 V (PP3) Version: With protective case. Cable length approx. 152 mm. Contact diameters 5.7 / 5.3 mm.
Application: suitable for 9 V flat battery (PP3) or battery holder A9156001.

Supply 1 plug-in contact

Close

A9156002

Plug-in contact, 1 x 9 V (PP3)
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
A9161001 Set of battery clips, 4 x AA

A9161001

Set of battery clips, 4 x AA For contacting the batteries.

Supply 3 double contacts, 2 Single contacts

Close

A9161001

Set of battery clips, 4 x AA Steel
tin-plated
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Close

A9161002

Set of battery clips, 2 x 9 V or 4 x AA Steel
tin-plated
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V Steel
tin-plated
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178008

Contacts, female gold-plated
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9190003

Set of battery clips, 2xN/2xAA/2xAAA Steel
nickel-plated

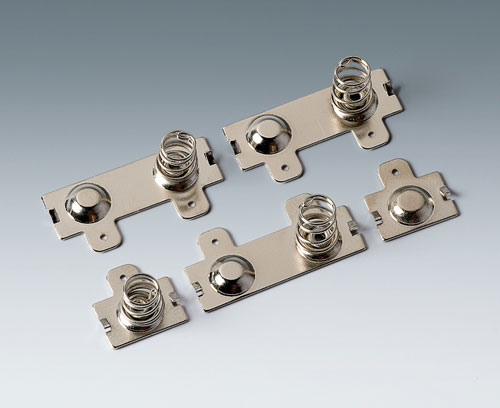

A9190010 Set of battery clips, 4 x AA

A9190010

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190010

Set of battery clips, 4 x AA Steel
nickel-plated
A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190011

Set of battery clips, 2 x AA Steel
nickel-plated
A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

Close

A9190012

Set of battery clips, 4 x AA Steel
nickel-plated
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190013

Set of battery clips, 4 x AA Steel
nickel-plated
A9190014 Set of battery clips, 2 x AA

A9190014

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190014

Set of battery clips, 2 x AA Steel
nickel-plated

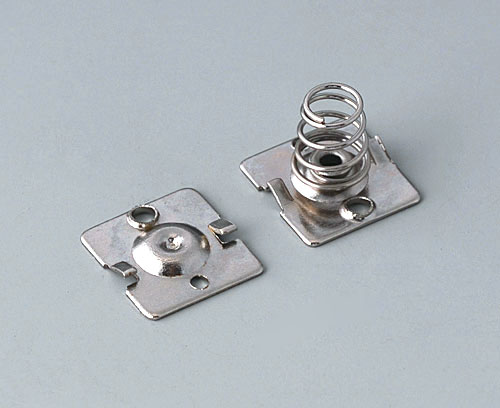

A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

Close

A9190015

Set of battery clips, 2 x AA Steel
nickel-plated
A9190023 Set of battery clips, 3 x AA

A9190023

Set of battery clips, 3 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190023

Set of battery clips, 3 x AA Steel
nickel-plated
A9190024 Set of battery clips, 3 x AAA

A9190024

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Close

A9190024

Set of battery clips, 3 x AAA Steel
nickel-plated
A9193002 Plug-in contacts, 1 x 9 V (PP3)

A9193002

Plug-in contacts, 1 x 9 V (PP3) Version: Cable exit T-shape. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: For a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9193002

Plug-in contacts, 1 x 9 V (PP3)
A9193003 Battery-clips, double contact

A9193003

Battery-clips, double contact Version large, for double contact. Supply as separate part.

Supply 1 battery clip

Close

A9193003

Battery-clips, double contact Steel
tin-plated
A9193004 Battery-clips, single contact

A9193004

Battery-clips, single contact Version small, for single contact. Supply as separate part.

Supply 1 battery clip

Close

A9193004

Battery-clips, single contact Steel
tin-plated
A9193005 Battery clips, double contact

A9193005

Battery clips, double contact Version large, for double contact. Supply as separate part.

Supply 1 battery clip

Close

A9193005

Battery clips, double contact Steel
nickel-plated
A9193006 Battery-clips, single contact

A9193006

Battery-clips, single contact Version small, for single contact. Supply as separate part.

Supply 1 battery clip

Close

A9193006

Battery-clips, single contact Steel
nickel-plated
A9193008 Battery clips, double contact

A9193008

Battery clips, double contact Version large, for double contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply 1 battery clip

Close

A9193008

Battery clips, double contact CuBe
nickel-plated
A9193009 Battery clips, single contact

A9193009

Battery clips, single contact Version small, for single contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply 1 battery clip

Close

A9193009

Battery clips, single contact CuBe
nickel-plated

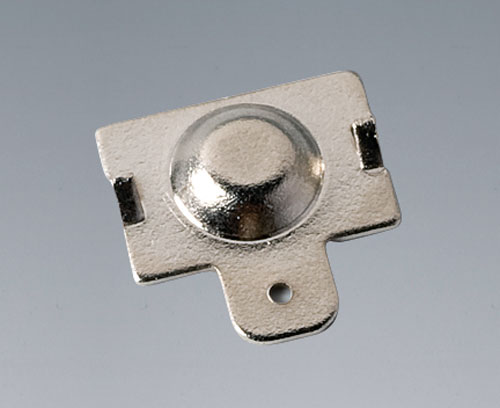

A9193011 Battery-clips, single contact

A9193011

Battery-clips, single contact For contacting the batteries. Compliant with DIN EN 60601. Designed for battery compartments with 1.5 V AA batteries.

Supply 1 single contact positive

Close

A9193011

Battery-clips, single contact Steel
nickel-plated

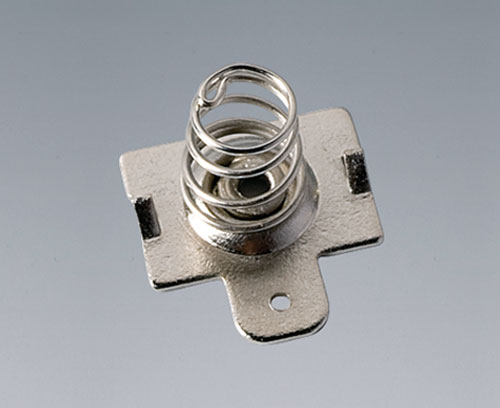

A9193012 Battery-clips, single contact

A9193012

Battery-clips, single contact For contacting the batteries. Compliant with DIN EN 60601. Designed for battery compartments with 1.5 V AA batteries.

Supply 1 single contact negative

Close

A9193012

Battery-clips, single contact Steel
nickel-plated

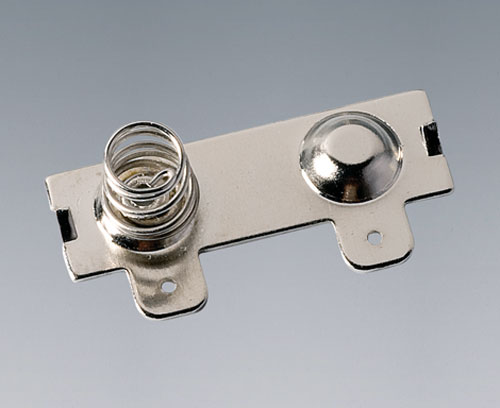

A9193013 Battery-clips, double contact

A9193013

Battery-clips, double contact For contacting the batteries. Compliant with DIN EN 60601. Designed for battery compartments with 1.5 V AA batteries.

Supply 1 double contact left

Close

A9193013

Battery-clips, double contact Steel
nickel-plated
A9193014 Battery-clips, double contact

A9193014

Battery-clips, double contact For contacting the batteries. Compliant with DIN EN 60601. Designed for battery compartments with 1.5 V AA batteries.

Supply 1 double contact right

Close

A9193014

Battery-clips, double contact Steel
nickel-plated
A9193030 Contact pin

A9193030

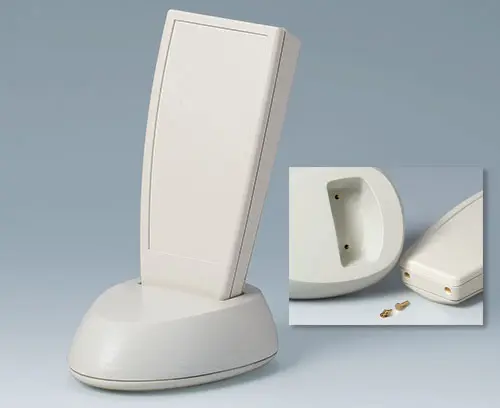

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin gold-plated
A9193031 Spring contact

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193031

Spring contact gold-plated
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193032

Spring contact
A9193033 Polarity reversal protection device, positive terminal

A9193033

Polarity reversal protection device, positive terminal For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193033

Polarity reversal protection device, positive terminal ABS (UL 94 HB)
off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal

A9193034

Polarity reversal protection device, positive terminal For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193034

Polarity reversal protection device, positive terminal ABS (UL 94 HB)
off-white RAL 9002
A9193035 Battery clip

A9193035

Battery clip For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193035

Battery clip Steel
nickel-plated
A9193036 Battery clip

A9193036

Battery clip For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193036

Battery clip Steel
nickel-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Close

A9193042

Mounting plates for contacts ABS (UL 94 HB)
black RAL 9005
A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Close

A9193044

Contacting kit, 6-pin ABS (UL 94 HB)
black RAL 9005

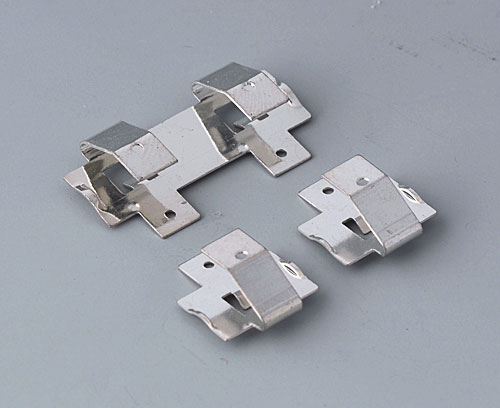

A9194001 Set of battery clips, 2 x AA

A9194001

Set of battery clips, 2 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9194001

Set of battery clips, 2 x AA Steel
tin-plated
