Attractive low profile plastic enclosures

These highly attractive enclosures are especially suitable for living and working environments – ideal for communication and network equipment.

  • modern, flat enclosure design for wall mounted and desktop electronics

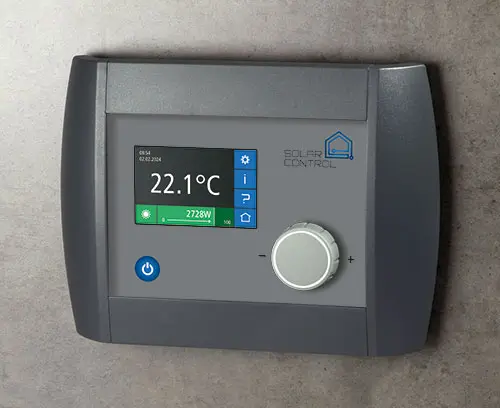

  • central control panel for mounting a keypad, touch screen or display unit

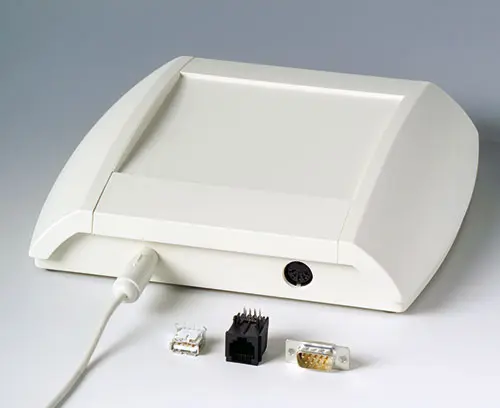

  • recessed area for installation and protection of interfaces, plug-in connections, cable glands etc.

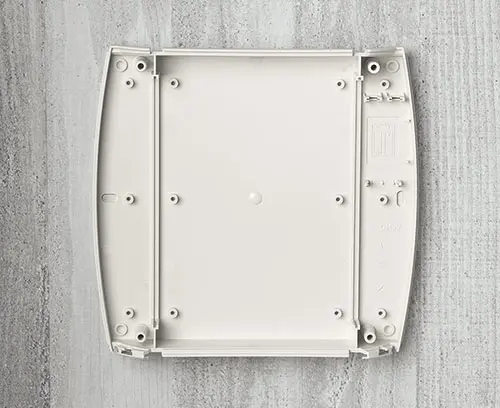

  • easy, invisible wall mounting; knockouts in base for wall fixings
  • four sizes in two colours

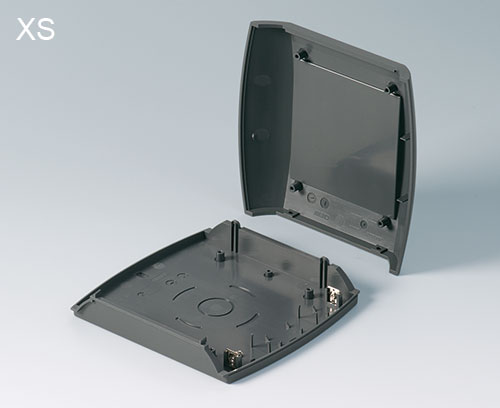

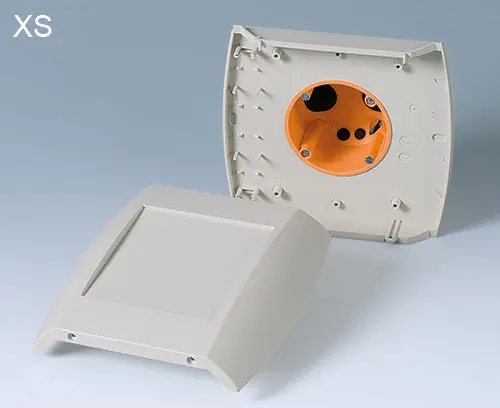

  • DIATEC XS: two-piece case, consisting of a top and bottom part, screwed together with Torx T10 stainless steel screws, integrated battery holder for 2 x AA, pre-shaped flush-mounting box contoured in the bottom part

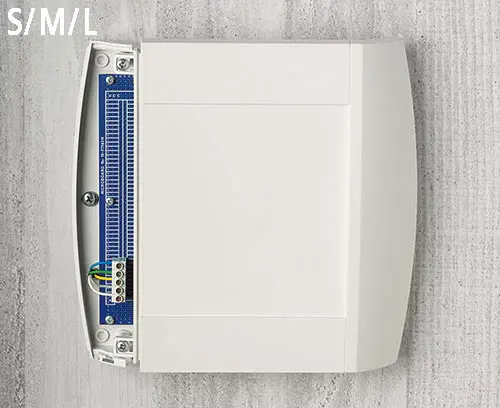

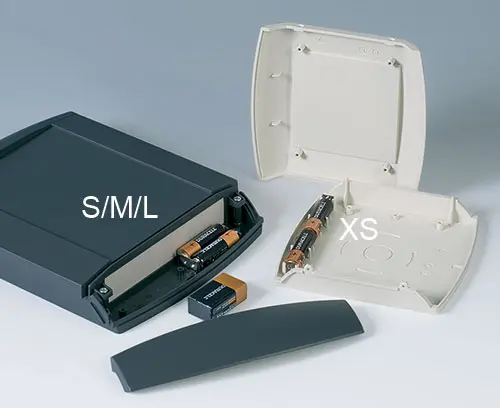

  • DIATEC S, M, L: four-piece case, consisting of a top and bottom part as well as two covers for concealing the assembly screws; if required, the snap-on covers can be locked to prevent unauthorised access; integrated battery compartment for 2 x AA or 1 x 9 V

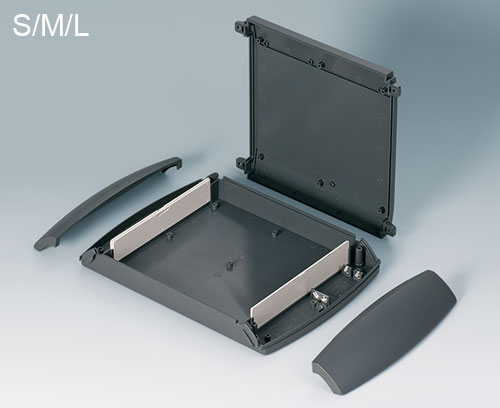

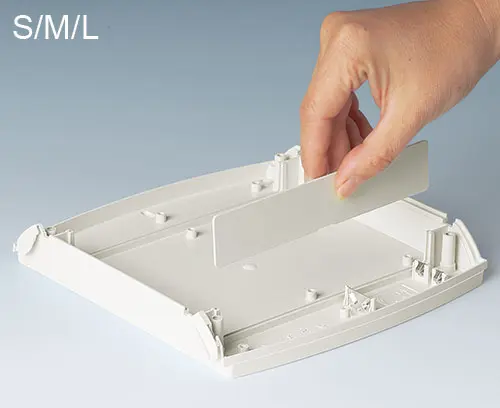

  • slot-in panels (accessories) can be used to separate the electronics and terminal areas
  • protection class IP 40
  • snap-on side panels allow installation without disassembly of the top panel  (S, M, L)
  • internal screw pillars for mounting PCBs
Generate PDF

Application Fields

Peripheral equipment for computers, IoT/IIoT, gateways, data system engineering, systems for data collection on the job, access and security controls, measuring and controlling devices, medical, wellness and laboratory technology, etc.

A9092107 DIATEC XS

A9092107

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

A9092107

DIATEC XS
product added to your basket

off-white RAL 9002
150x37x155mm
A9092108 DIATEC XS

A9092108

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

A9092108

DIATEC XS
product added to your basket

lava
150x37x155mm
A9093107 DIATEC S

A9093107

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9093107

DIATEC S
product added to your basket

off-white RAL 9002
210x48x200mm
A9093108 DIATEC S

A9093108

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9093108

DIATEC S
product added to your basket

lava
210x48x200mm
A9094107 DIATEC M

A9094107

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9094107

DIATEC M
product added to your basket

off-white RAL 9002
270x48x200mm
A9094108 DIATEC M

A9094108

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9094108

DIATEC M
product added to your basket

lava
270x48x200mm
A9095107 DIATEC L

A9095107

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9095107

DIATEC L
product added to your basket

off-white RAL 9002
330x48x200mm
A9095108 DIATEC L

A9095108

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

A9095108

DIATEC L
product added to your basket

lava
330x48x200mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your basket
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
product added to your basket

tin-plated
A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

A9190015

Set of battery clips, 2 x AA
product added to your basket

nickel-plated
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

A9194007

Slot-in panel
product added to your basket

off-white RAL 9002
156x30x3mm
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent
A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9212330

Anti-slide feet 12 x 3.5 mm
product added to your basket
transparent
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
product added to your basket

pebble grey RAL 7032

Customising options for Diatec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
