A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply
1 pole/mast mounting bracket
Close
Pole/mast mounting bracket
product added to your basket
ASA
(UL 94 HB)
anthracite grey RAL 7016
100x100x20mm

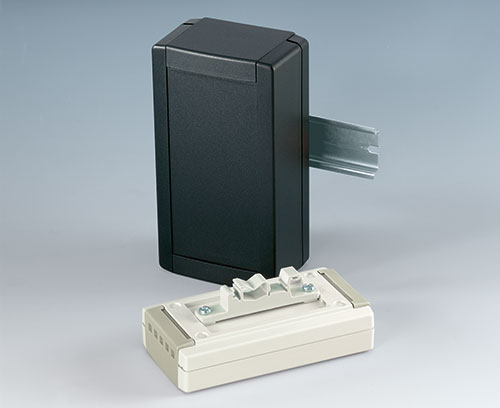

B1300017
Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply
1 piece incl, assembly kit
Close
Fastening element for DIN-Rails
product added to your basket
PA 6
off-white RAL 9002
B1300019
Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply
1 piece incl, assembly kit
Close
Fastening element for DIN-Rails
product added to your basket
PA 6
black RAL 9005

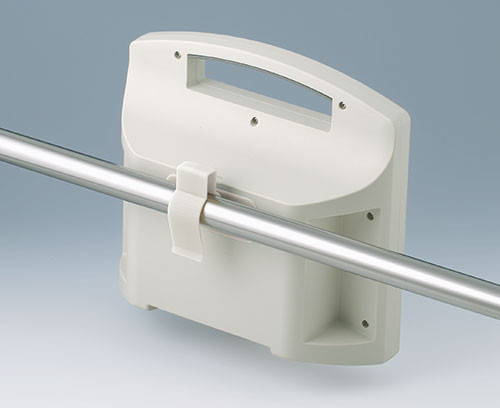

B4308237
Holding clamps

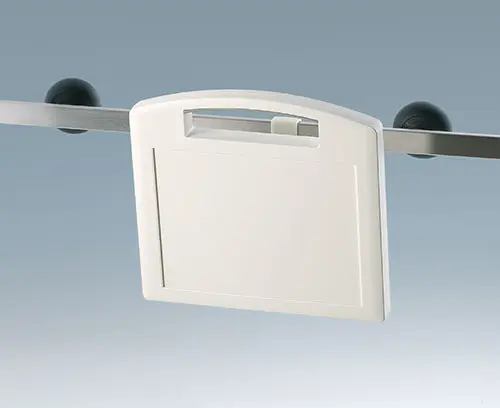

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply
1 holding clamp, assembly kit
Close
Holding clamps
product added to your basket
PA 6
off-white RAL 9002

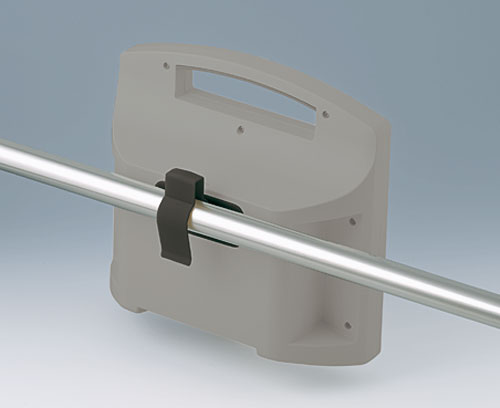

B4308238
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply
1 holding clamp, assembly kit
Close
Holding clamps
product added to your basket
PA 6
lava

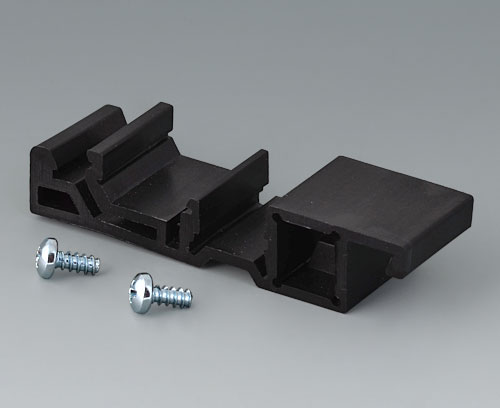

B6811751
DIN rail adapter
Universal suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.
Supply
1 piece, 2 screws
Close
DIN rail adapter
product added to your basket
PA 66
(UL 94 V-0)
black RAL 9005

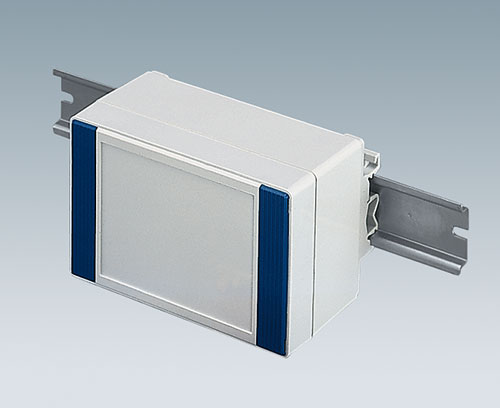

C2201088
Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.
Supply
2 fastening elements, assembly kit
Close
Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035
C2203128
Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.
Supply
2 fastening elements, assembly kit
Close
Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035
C2204168
Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.
Supply
2 fastening elements, assembly kit
Close
Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035

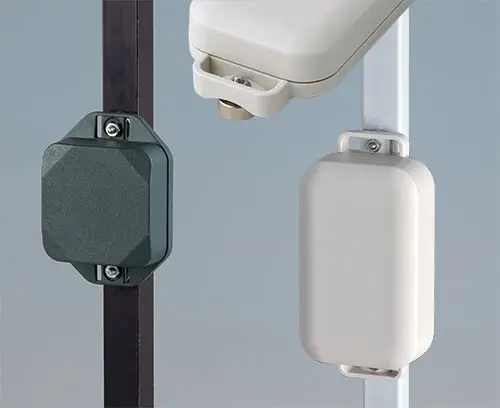

Customising options for Holding devices
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
