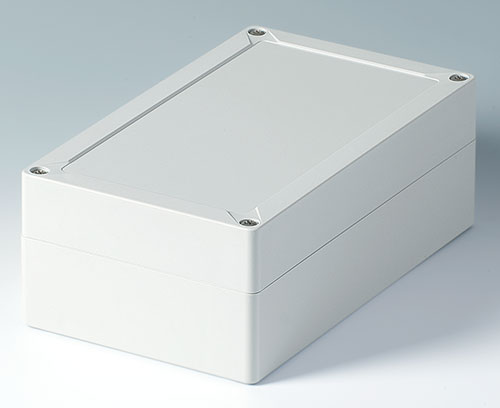

In-Box

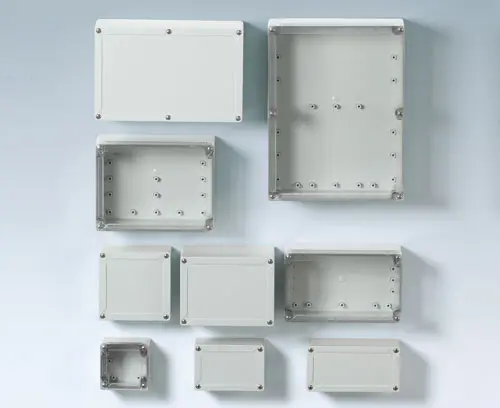

Tough industrial plastic enclosures

As enclosures for terminal installations, as well as for electronics equipment, the IN-BOX series offers versatile options for electrical and electronics engineers.

  • nine base enclosures with high gloss surfaces and different heights
  • two standard materials: ABS (UL 94 HB) or PC (V-2);
    the complete enclosures in PC comply with fire safety standard UL 94 5V (better than V-0), although the material only has the classification V-2
  • RF permeable enclosure materials
  • high protection classes IP 66/67; sealing gasket pre-foamed in the top
  • high impact strength IK07 (ABS) and IK08 (PC)

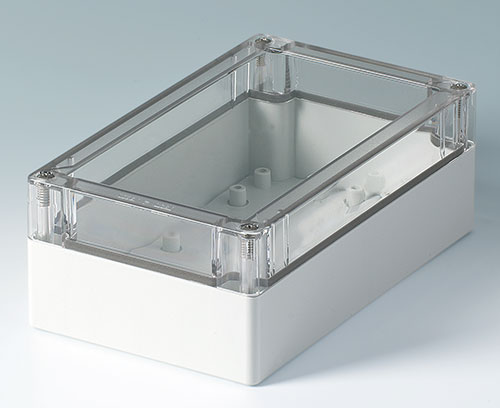

  • top parts in case colour or transparent

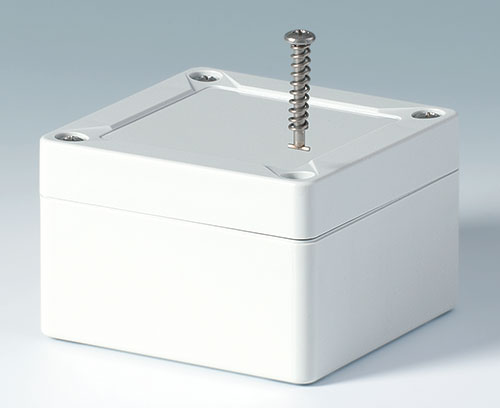

  • efficient quarter-turn lid screws in stainless steel

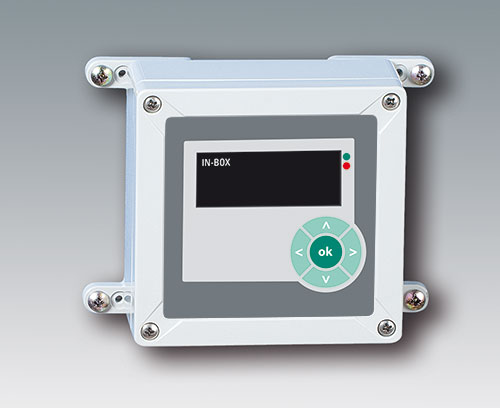

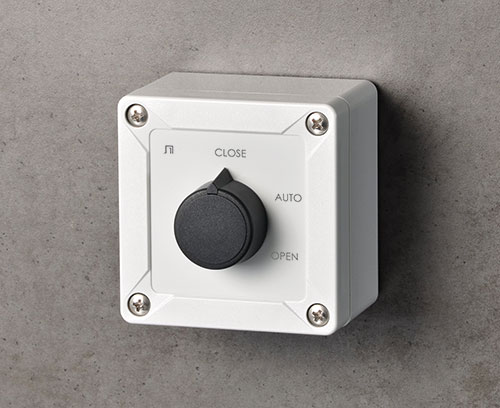

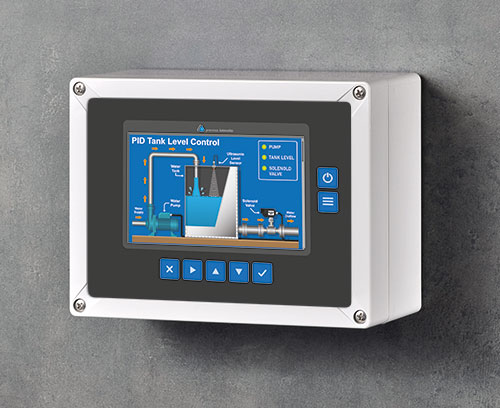

  • recessed operating area for protecting a membrane keypad or decorative foil/label
  • direct wall mounting or exterior wall mounting with wall mounting brackets; if required an internal hinge kit can be supplied as an accessory

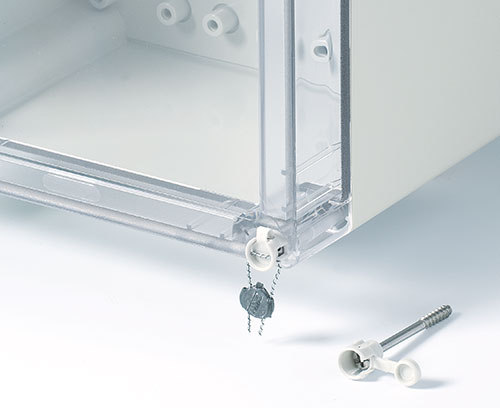

  • optional security kit for use with lead tags

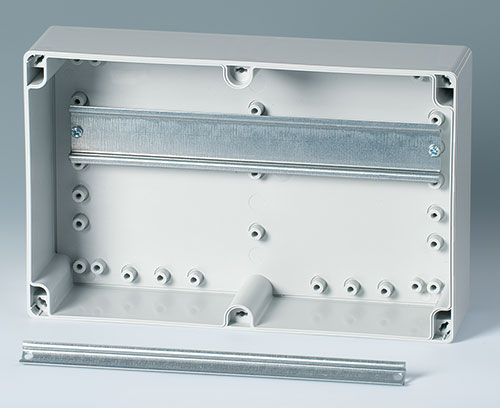

  • DIN rails and mounting plates for individual installation and configurations
  • internal screw pillars for PCBs, DIN rails and mounting plates
Generate PDF
  • Application Examples

Application fields

Ideal for industrial electronics such as digital and analogue instruments, sensors, interfaces and security systems. Also, for electrical applications such as heating, climate and ventilation systems, machine building and construction equipment. Also in Smart Factory / Industry 4.0

  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalisation element M6x0.75
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalisation element M10x1
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

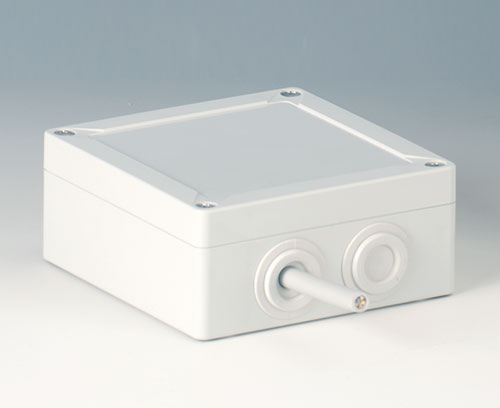

C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light grey RAL 7035
IP 67
C7100092 Wall-mounting brackets

C7100092

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

Close

C7100092

Wall-mounting brackets
product added to your basket
PC GF15

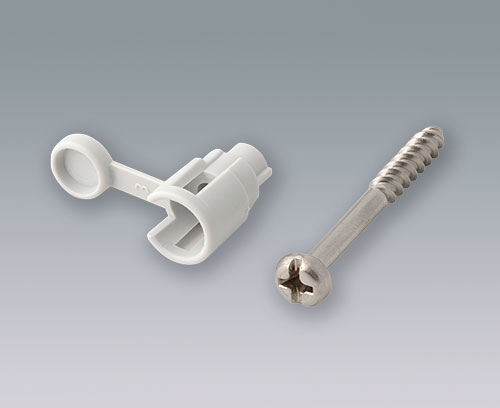

C7100128 Security kit

C7100128

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Close

C7100128

Security kit
product added to your basket
PP
C7100138 Security kit

C7100138

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Close

C7100138

Security kit
product added to your basket
PP

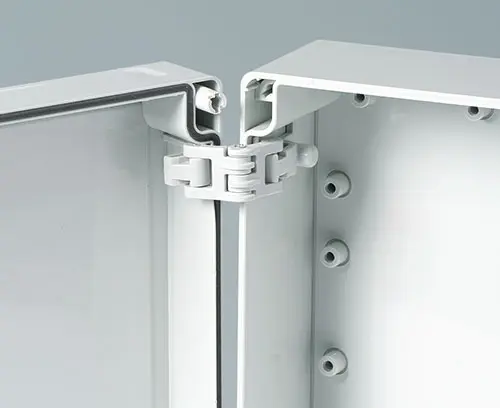

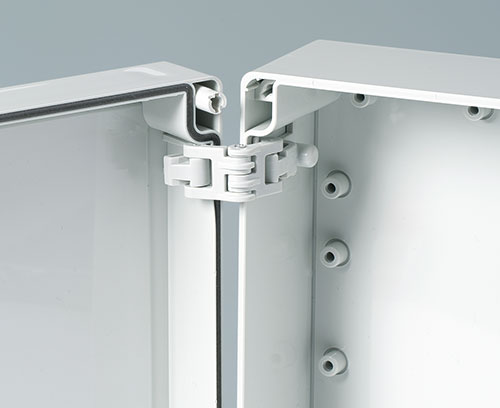

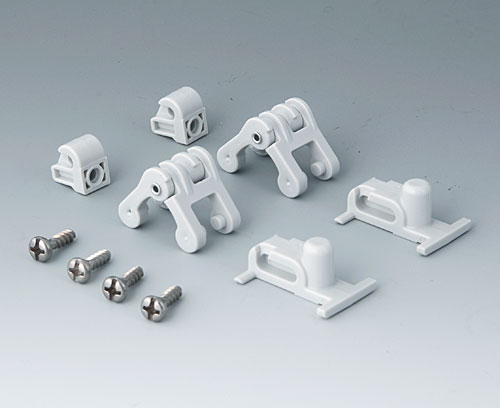

C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

Close

C7100142

Inside hinge
product added to your basket
PC
C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Close

C7100167

Screw 3.9 x 9 mm
product added to your basket

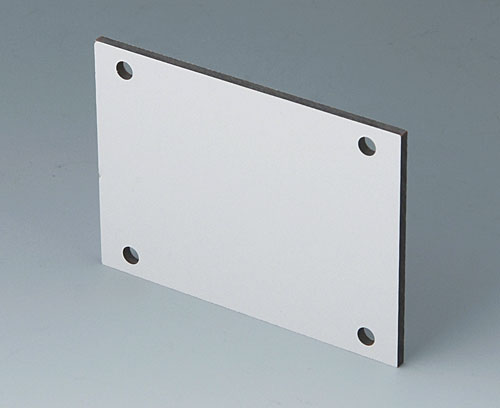

C7110056 Mounting plate

C7110056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7110056

Mounting plate
product added to your basket
73x53x2.5mm

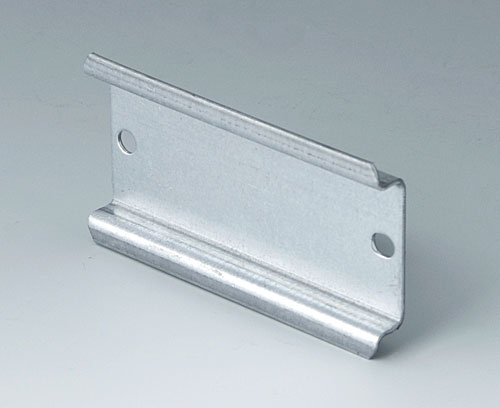

C7110077 Standard DIN rail, Type TH 35

C7110077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7110077

Standard DIN rail, Type TH 35
product added to your basket
Steel
66x35x7.5mm
C7110087 Standard DIN rail, Type TH 15

C7110087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7110087

Standard DIN rail, Type TH 15
product added to your basket
Steel
66x15x5.5mm
C7111056 Mounting plate

C7111056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7111056

Mounting plate
product added to your basket
91x73x2.5mm
C7111077 Standard DIN rail, Type TH 35

C7111077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7111077

Standard DIN rail, Type TH 35
product added to your basket
Steel
104x35x7.5mm

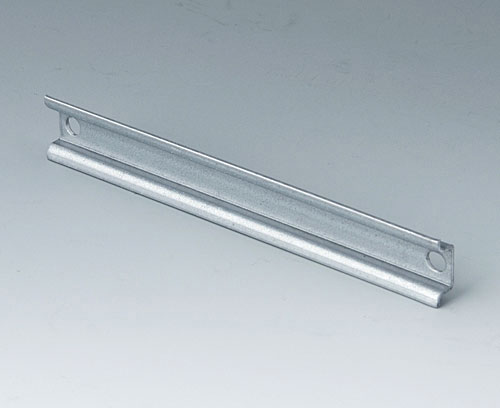

C7111087 Standard DIN rail, Type TH 15

C7111087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7111087

Standard DIN rail, Type TH 15
product added to your basket
Steel
104x15x5.5mm

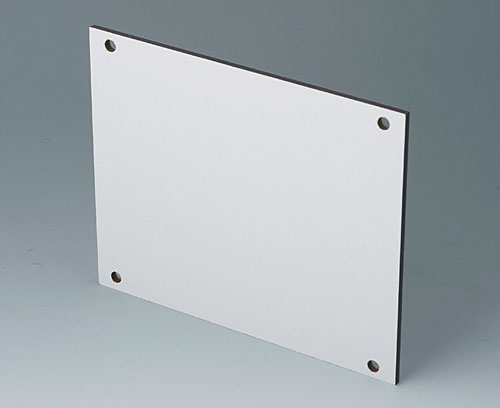

C7112056 Mounting plate

C7112056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7112056

Mounting plate
product added to your basket
113x93x2.5mm

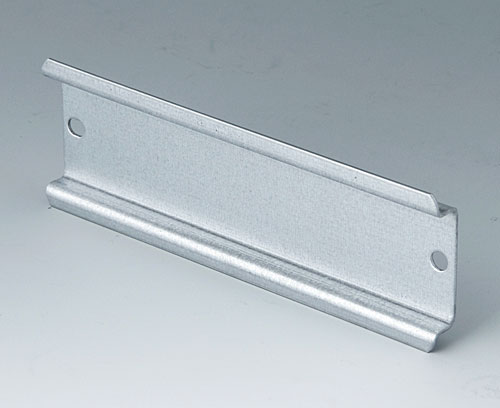

C7112077 Standard DIN rail, Type TH 35

C7112077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7112077

Standard DIN rail, Type TH 35
product added to your basket
Steel
108x35x7.5mm

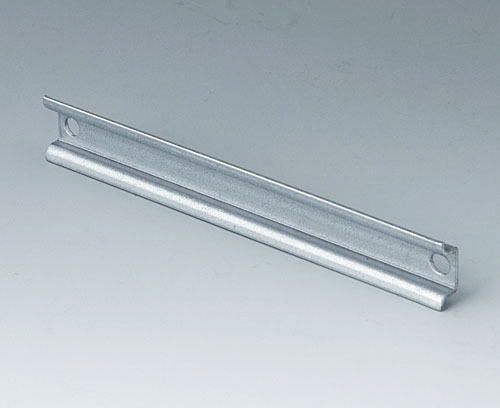

C7112087 Standard DIN rail, Type TH 15

C7112087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7112087

Standard DIN rail, Type TH 15
product added to your basket
Steel
108x15x5.5mm

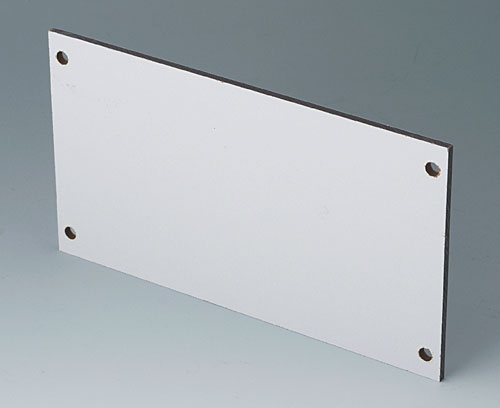

C7113056 Mounting plate

C7113056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7113056

Mounting plate
product added to your basket
131x73x2.5mm

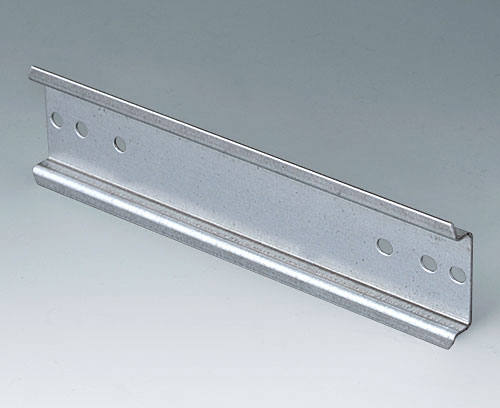

C7113077 Standard DIN rail, Type TH 35

C7113077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7113077

Standard DIN rail, Type TH 35
product added to your basket
Steel
144x35x7.5mm

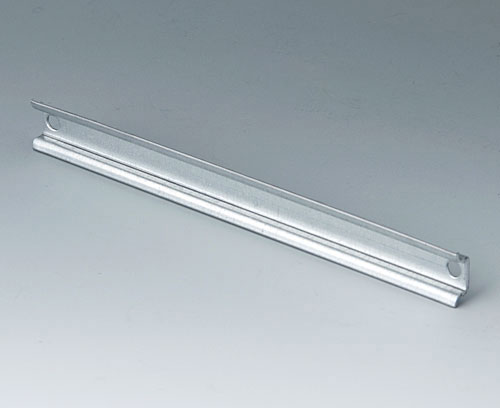

C7113087 Standard DIN rail, Type TH 15

C7113087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7113087

Standard DIN rail, Type TH 15
product added to your basket
Steel
144x15x5.5mm

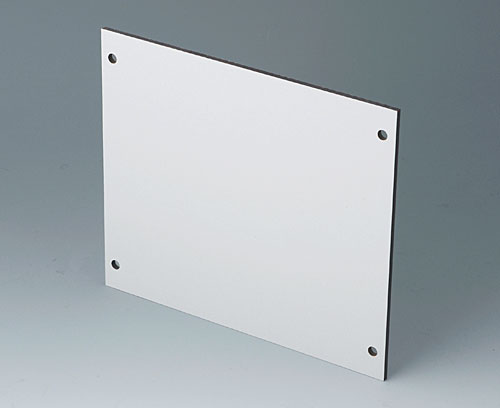

C7114056 Mounting plate

C7114056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7114056

Mounting plate
product added to your basket
131x113x2.5mm

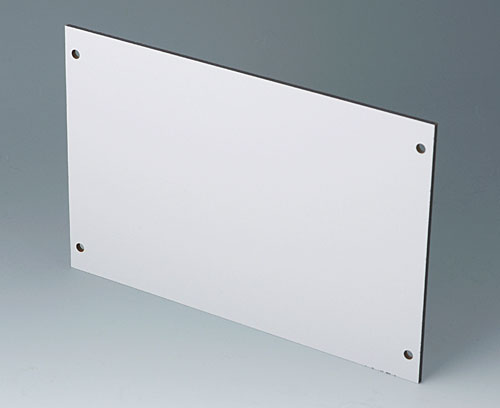

C7115056 Mounting plate

C7115056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7115056

Mounting plate
product added to your basket
171x113x2.5mm
C7115077 Standard DIN rail, Type TH 35

C7115077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7115077

Standard DIN rail, Type TH 35
product added to your basket
Steel
184x35x7.5mm
C7115087 Standard DIN rail, Type TH 15

C7115087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7115087

Standard DIN rail, Type TH 15
product added to your basket
Steel
184x15x5.5mm

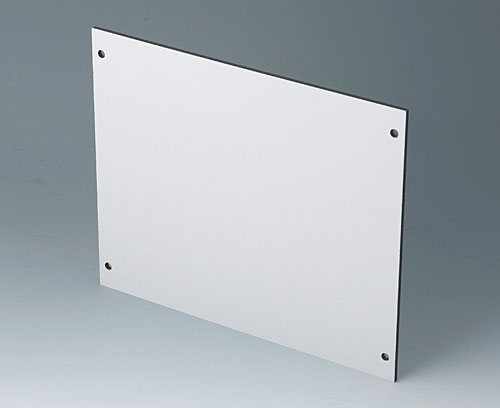

C7116056 Mounting plate

C7116056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7116056

Mounting plate
product added to your basket
171x143x2.5mm
C7116077 Standard DIN rail, Type TH 35

C7116077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7116077

Standard DIN rail, Type TH 35
product added to your basket
Steel
168x35x7.5mm

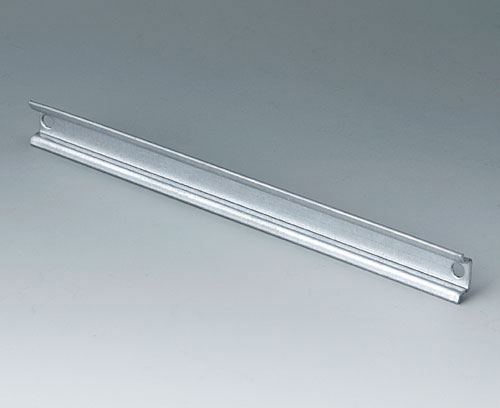

C7116087 Standard DIN rail, Type TH 15

C7116087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7116087

Standard DIN rail, Type TH 15
product added to your basket
Steel
168x15x5.5mm

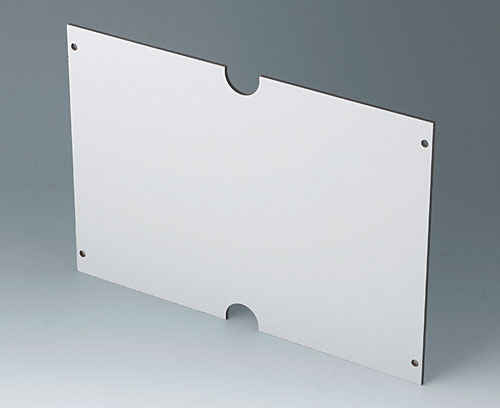

C7117056 Mounting plate

C7117056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7117056

Mounting plate
product added to your basket
220.5x152.5x2.5mm
C7117077 Standard DIN rail, Type TH 35

C7117077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7117077

Standard DIN rail, Type TH 35
product added to your basket
Steel
220x35x7.5mm

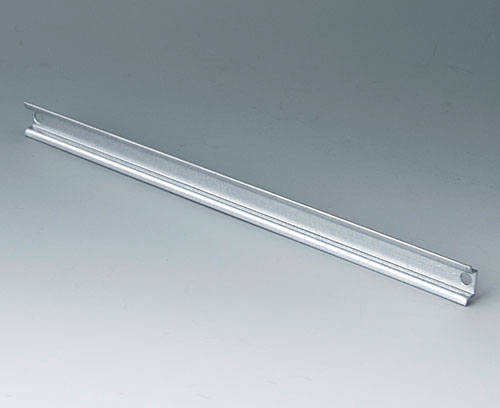

C7117087 Standard DIN rail, Type TH 15

C7117087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7117087

Standard DIN rail, Type TH 15
product added to your basket
Steel
220x15x5.5mm

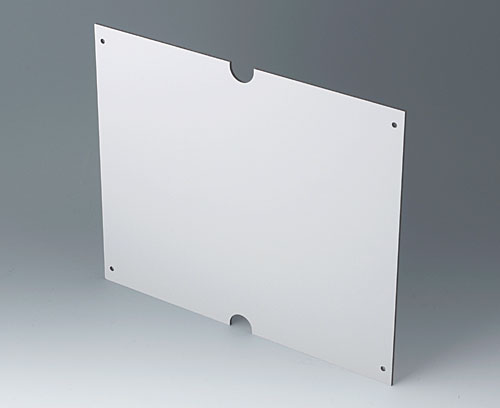

C7118056 Mounting plate

C7118056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Close

C7118056

Mounting plate
product added to your basket
270.5x222.5x2.5mm
C7118077 Standard DIN rail, Type TH 35

C7118077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Close

C7118077

Standard DIN rail, Type TH 35
product added to your basket
Steel
283.5x35x7.5mm

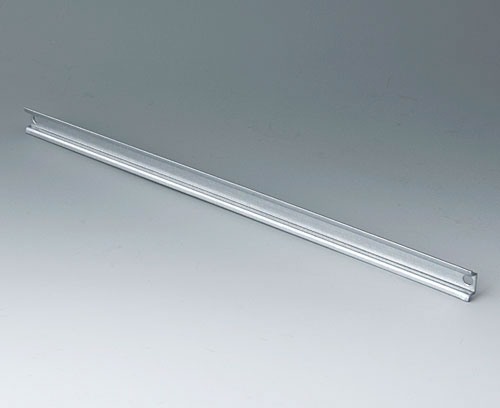

C7118087 Standard DIN rail, Type TH 15

C7118087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Close

C7118087

Standard DIN rail, Type TH 15
product added to your basket
Steel
283.5x15x5.5mm

Customising options for In-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
