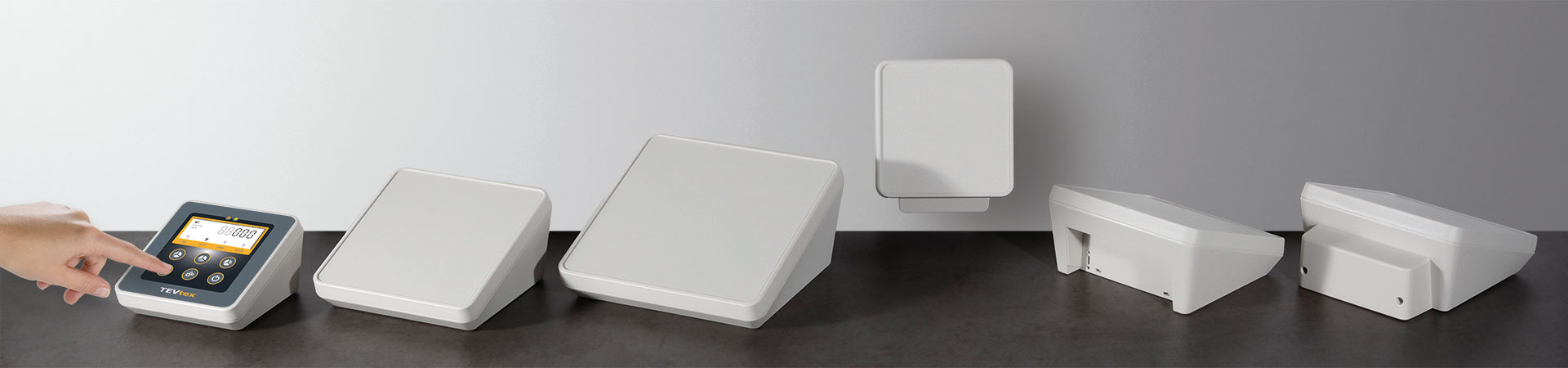

PROTEC desktop and wall-mounted enclosures

Protec

Square control centre

PROTEC enclosures have a modern and highly attractive square design with soft contours. As a result, these wall-mount and desktop housings are ideal for modern electronics applications, both indoors and outdoors.

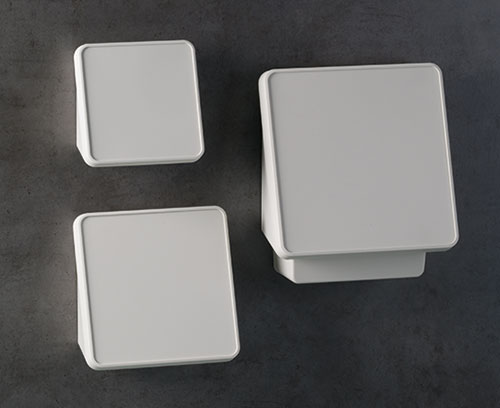

  • three sizes 140 / 180 / 220, each in the following versions:

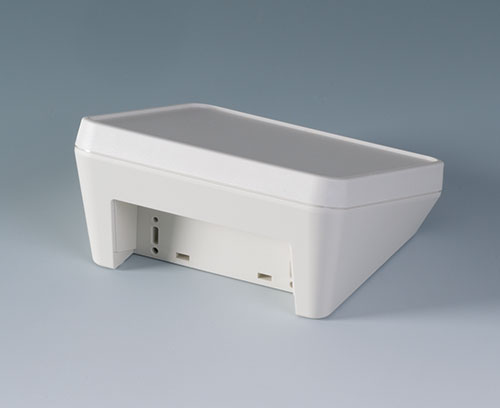

    Version I

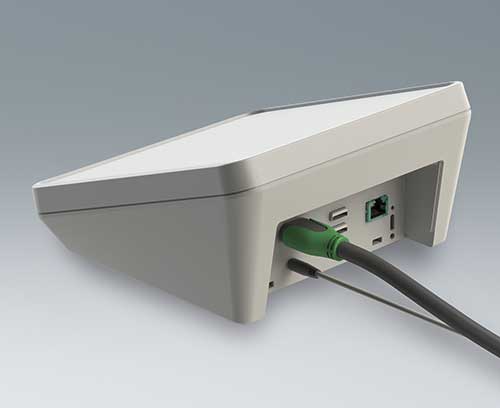

    With a deep recessed interface area at the rear of the enclosure for the installation and protection of connectors, interfaces, switches and cables.

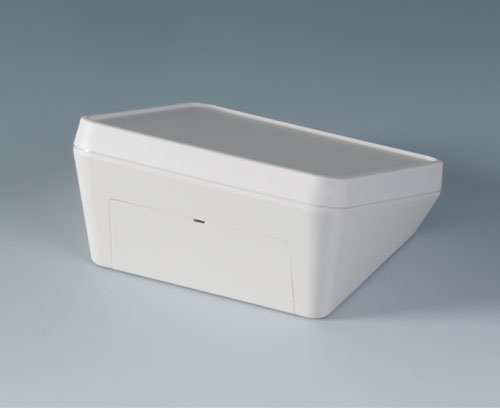

    Version II

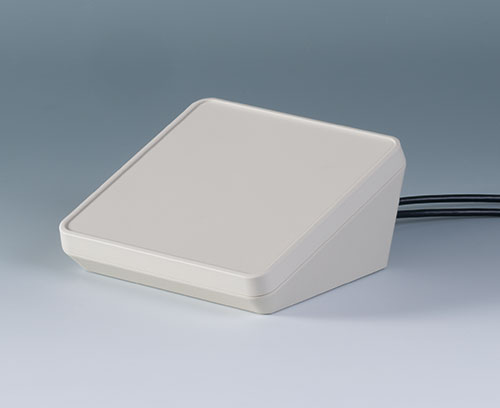

    As version I, but also with a snap-on cover for flush covering of the recessed interface area.

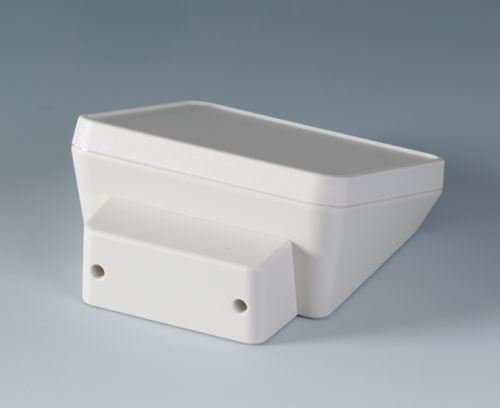

    Version III
    As version I, but with a deep cover for the recessed interface area which is fitted by screws. The deep cover provides additional internal space for the electronics, cabling and connections.

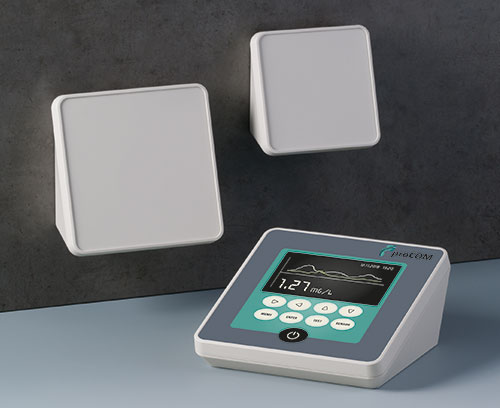

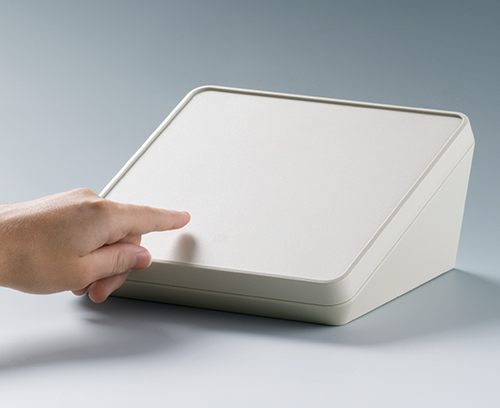

  • front operating panel ergonomically inclined by 20°

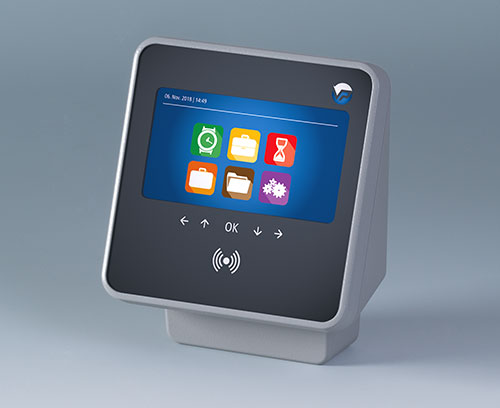

  • recessed operating area for protecting a membrane keypad

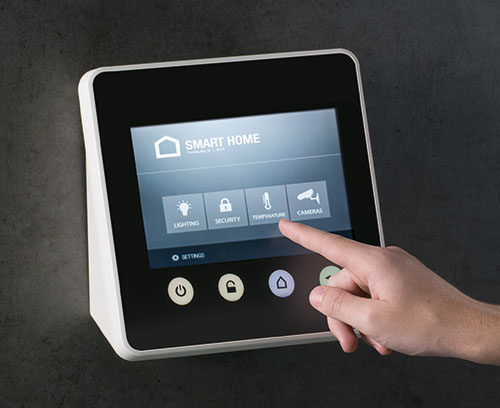

  • plenty of space for touch screens (PROTEC 140: 5.7"/14.5 cm, PROTEC 180: 7"/17.8 cm, PROTEC 220: 8.4"/21.3 cm)
  • no visible fixings screws, all fixings hidden on the underside
  • high-quality V-0 material in off-white (RAL 9002) for tough applications

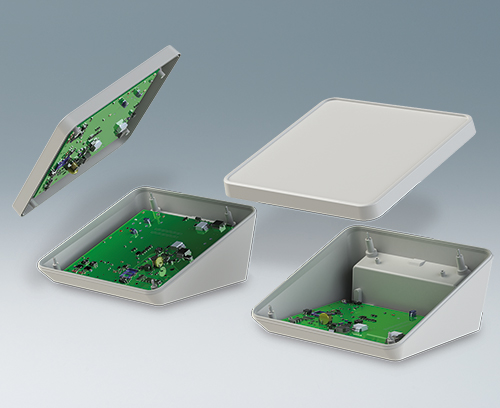

  • sealed electronics compartment with 3 board levels; plenty of space for the components and assemblies
  • concealed, flush wall mounting with removal prevention feature (accessory wall suspension element)
  • corrosion-free stainless steel screws with reliable Torx heads
  • non-slip rubber feet ensure that desktop devices do not skid
  • Application Examples

Application fields

  • Surveillance systems, access and security control
  • Data acquisition systems
  • Building services systems, central control units
  • IoT/IIoT
  • Smart factory
  • Industry 4.0
  • Gateways
  • Data systems engineering
  • Measuring and control technology
  • Medical technology, health care
  • Browse Full List
  • Accessories
  • View Customising Options
B4414107 PROTEC 140, Vers. I

B4414107

PROTEC 140, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Close

B4414107

PROTEC 140, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x140x76mm
B4414207 PROTEC 140, Vers. II

B4414207

PROTEC 140, Vers. II

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Close

B4414207

PROTEC 140, Vers. II ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x140x76mm
B4414307 PROTEC 140, Vers. III

B4414307

PROTEC 140, Vers. III

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Close

B4414307

PROTEC 140, Vers. III ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x160x76mm
B4418107 PROTEC 180, Vers. I

B4418107

PROTEC 180, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Close

B4418107

PROTEC 180, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x180x92mm
B4418207 PROTEC 180, Vers. II

B4418207

PROTEC 180, Vers. II

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Close

B4418207

PROTEC 180, Vers. II ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x180x92mm
B4418307 PROTEC 180, Vers. III

B4418307

PROTEC 180, Vers. III

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Close

B4418307

PROTEC 180, Vers. III ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x201x92mm
B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Close

B4422107

PROTEC 220, Vers. I ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x220x108mm
B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Close

B4422207

PROTEC 220, Vers. II ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x220x108mm
B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Close

B4422307

PROTEC 220, Vers. III ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x243x108mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
B4514030 Sealing 140

B4514030

Sealing 140

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4514030

Sealing 140

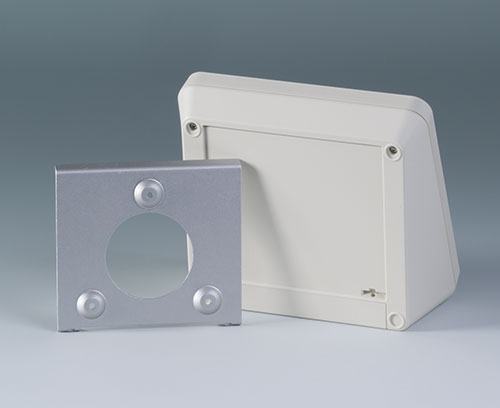

B4514101 Wall suspension element 140

B4514101

Wall suspension element 140

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Close

B4514101

Wall suspension element 140 Steel
galvanized
B4518030 Sealing 180

B4518030

Sealing 180

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4518030

Sealing 180
B4518101 Wall suspension element 180

B4518101

Wall suspension element 180

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Close

B4518101

Wall suspension element 180 Steel
galvanized
B4522030 Sealing 220

B4522030

Sealing 220

To raise the protection class. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4522030

Sealing 220
B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Close

B4522101

Wall suspension element 220 Steel
galvanized

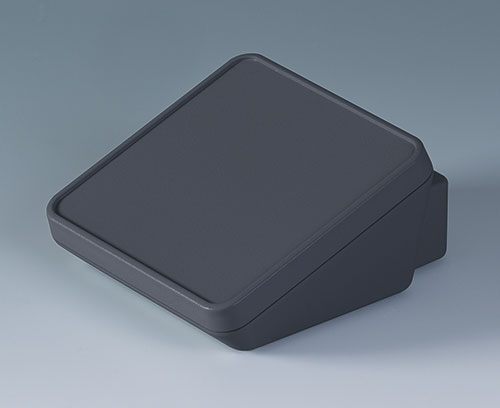

Customising options for Protec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
