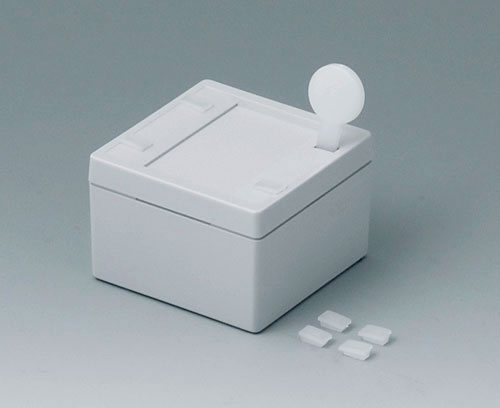

C3006061
SNAPTEC 60 x 60

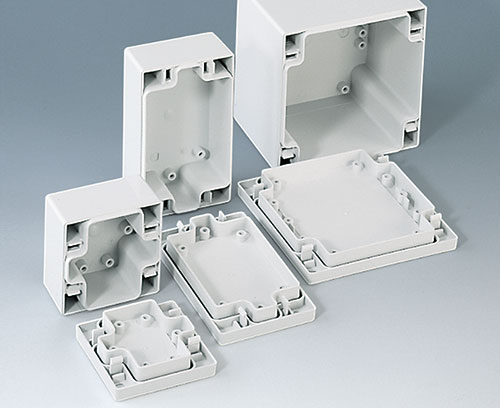

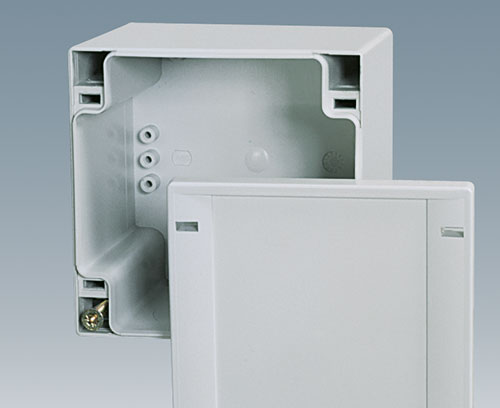

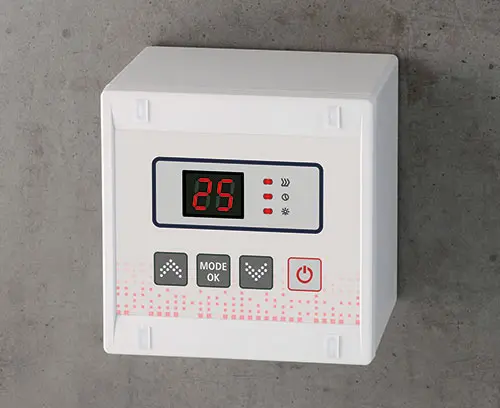

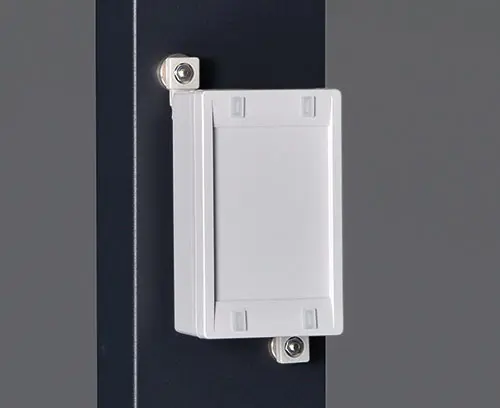

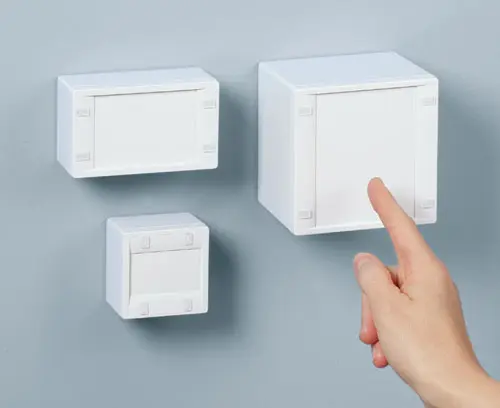

Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply

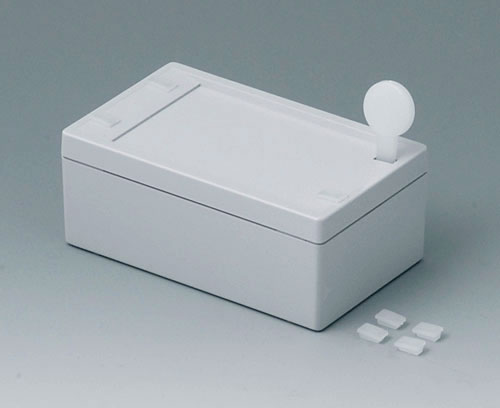

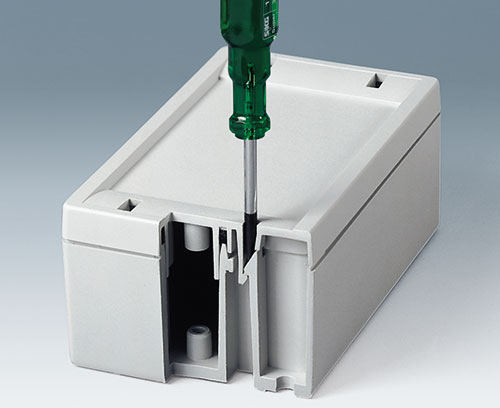

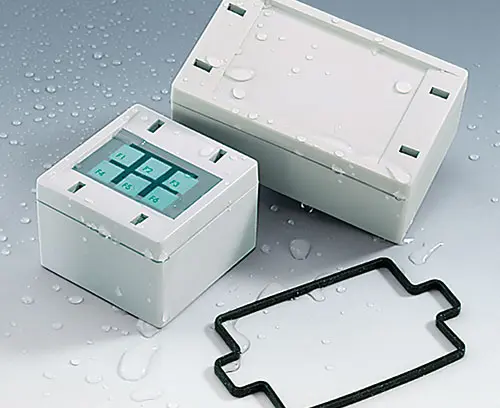

1 top and base part with sealing, cover for the locking openings, dismantling key
Close
SNAPTEC 60 x 60
product added to your basket
ABS
(UL 94 HB)
light grey RAL 7035
60x60x40mm
IP 65
C3006101
SNAPTEC 60 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply
1 top and base part with sealing, covers for the locking openings, dismantling key
Close
SNAPTEC 60 x 100
product added to your basket
ABS
(UL 94 HB)
light grey RAL 7035
60x100x40mm
IP 65
C3010101
SNAPTEC 100 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply
1 top and base part with sealing, covers for the locking openings, dismantling key
Close
SNAPTEC 100 x 100
product added to your basket
ABS
(UL 94 HB)
light grey RAL 7035
100x100x80mm
IP 65
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
Close
Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
C2299028

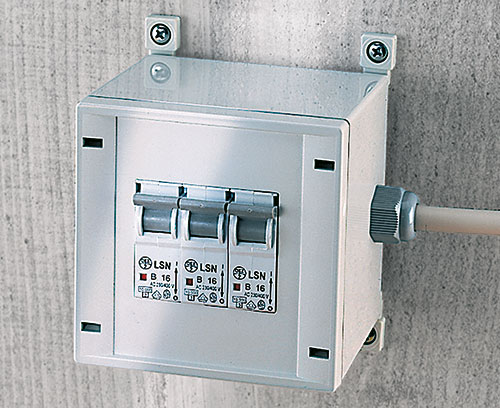

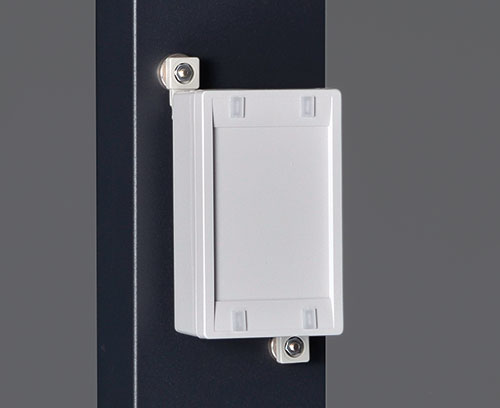

Wall mounting brackets
Elements for exterior wall mounting after assembly of the unit.
Supply
4 pieces including fixing elements
Close
Wall mounting brackets
product added to your basket
PA 6
(UL 94 HB)
light grey RAL 7035
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply
1 pressure equalisation element, 1 seal washer, 1 nut
Close
Pressure equalisation element M6x0.75
product added to your basket
PA 6
(UL 94 HB)
light grey RAL 7035
IP 56
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply
1 pressure equalisation element, 1 seal washer, 1 nut
Close
Pressure equalisation element M10x1
product added to your basket
PA 6
(UL 94 HB)
light grey RAL 7035
IP 56
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply
1 cable grommet
Close
Cable grommet
product added to your basket
TPE
light grey RAL 7035
IP 67
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply
1 cable grommet
Close
Cable grommet
product added to your basket
EPDM
light grey RAL 7035
IP 67
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply
1 cable grommet
Close
Cable grommet
product added to your basket
TPE
light grey RAL 7035
IP 67

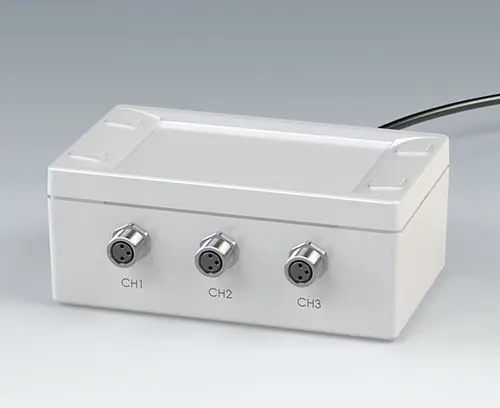

Customising options for Snaptec
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
