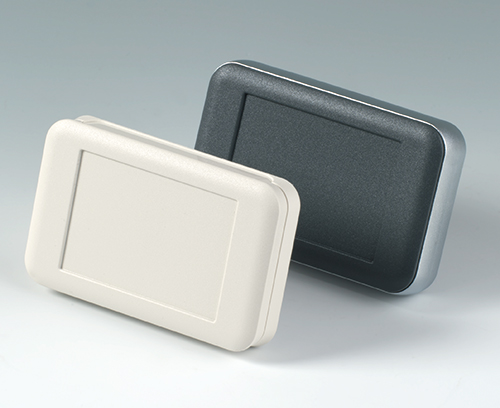

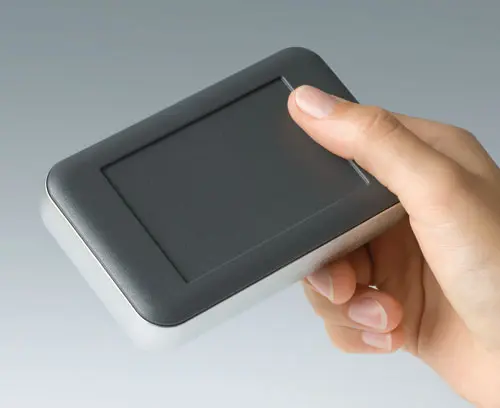

Soft-Case

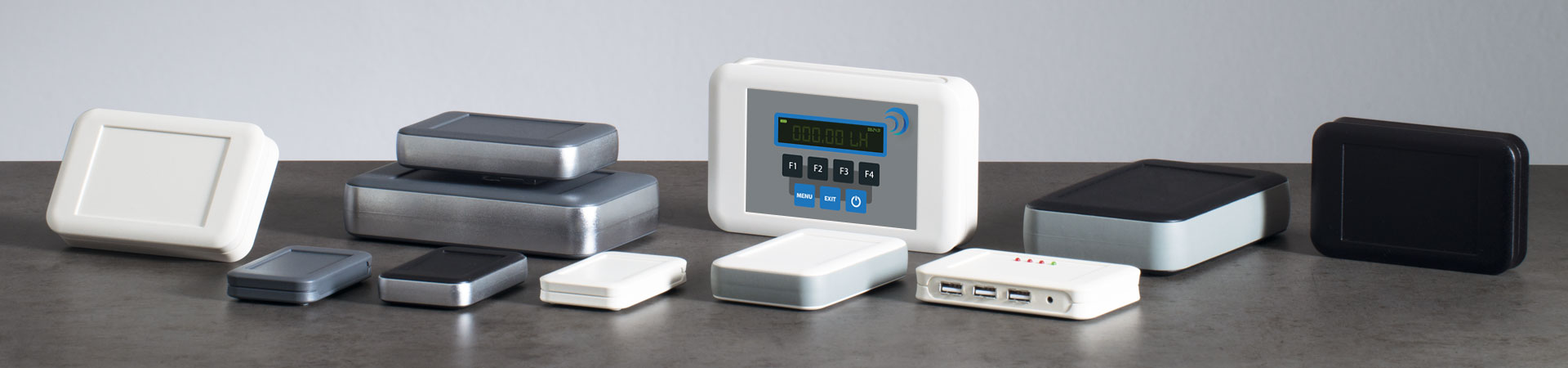

Wide-format handheld enclosures

SOFT-CASE plastic enclosures convince design engineers, because they correspond with today’s design and technology needs.

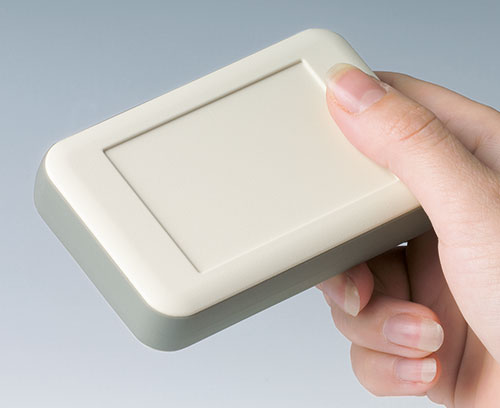

  • handy design with soft contours for a pleasant touch sensation
  • unique “wide-format” offers a generous interface area as well as sufficient room for larger displays, while also ensuring user comfort

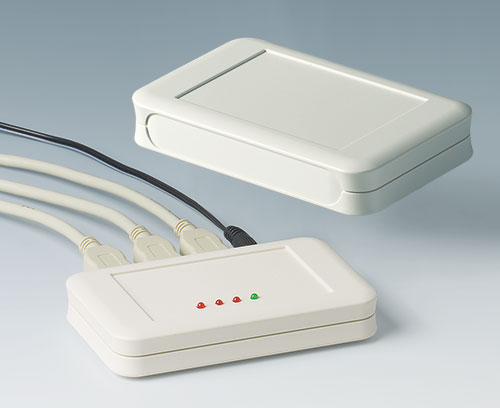

  • raised connector mounting panel on the wide edge to accommodate more connections

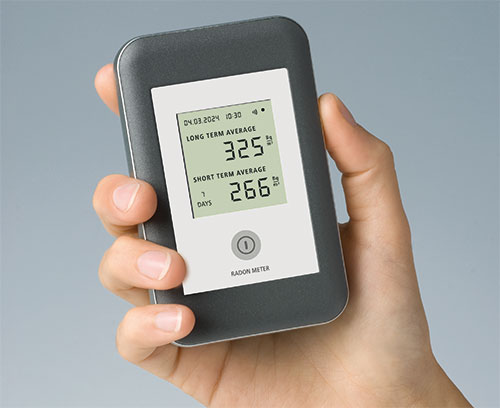

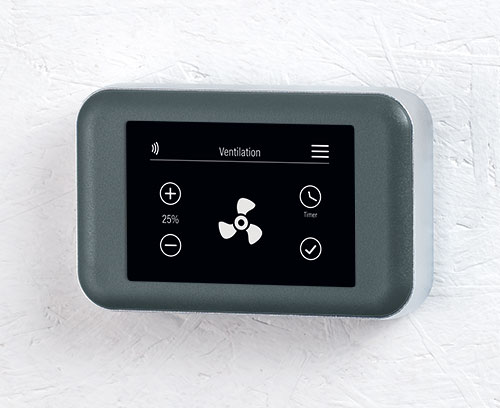

  • universal use for handheld, desktop and wall mount applications

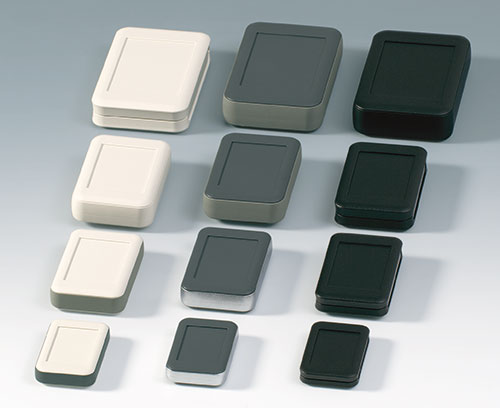

  • four sizes

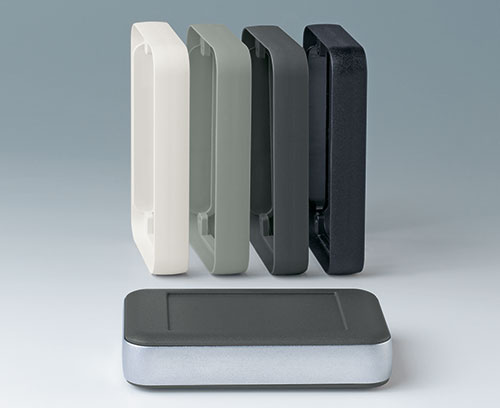

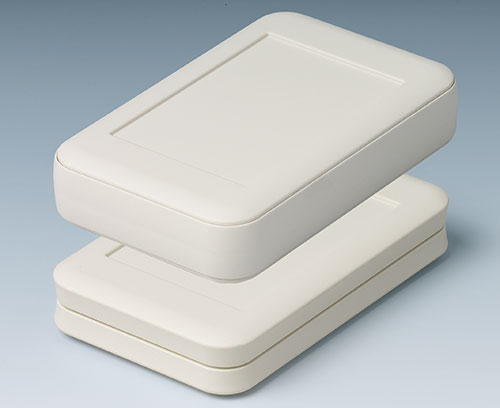

  • optional intermediate rings provide more installation height. Different versions: ABS rings in case colour or chromated, soft TPE ring
  • with soft TPE ring protection class IP 54 possible (enclosure versions without battery compartment in ABS or PMMA)

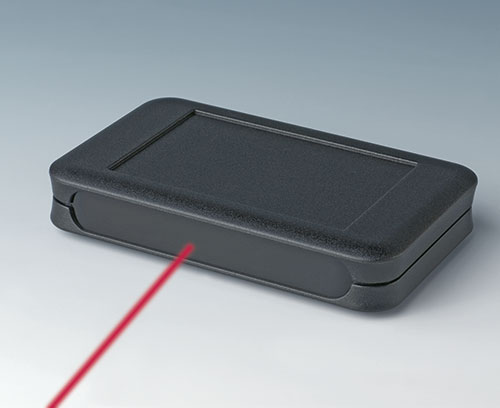

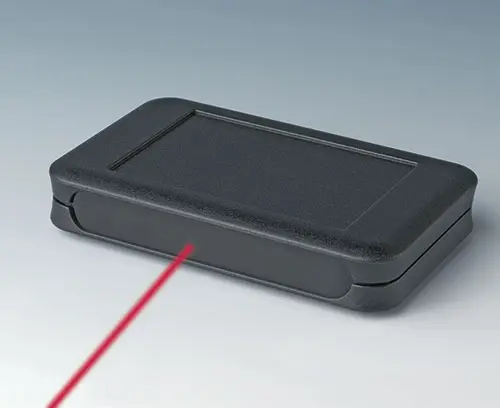

  • two materials: ABS (UL 94 HB) or PMMA infra-red light-permeable (UL 94 HB)

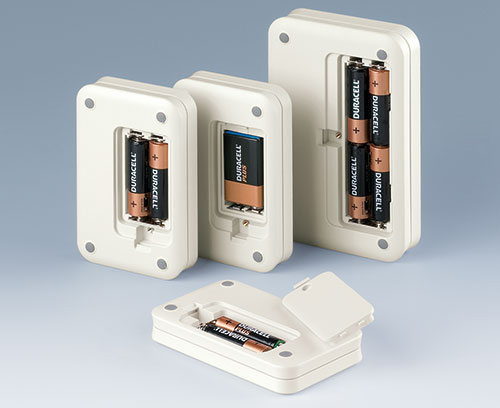

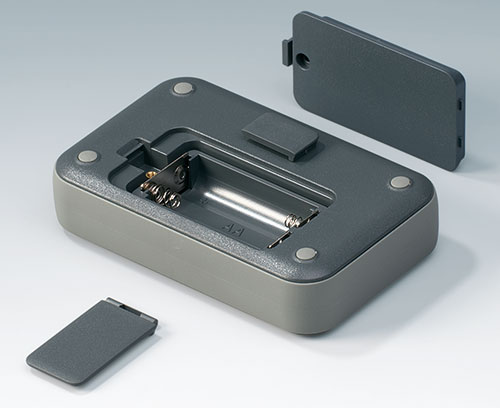

  • without/with battery compartment for 2 x AAA, 2 x AA, 4 x AA or 1 x 9 V;
  • clip-on battery compartment lid can be screw fixed

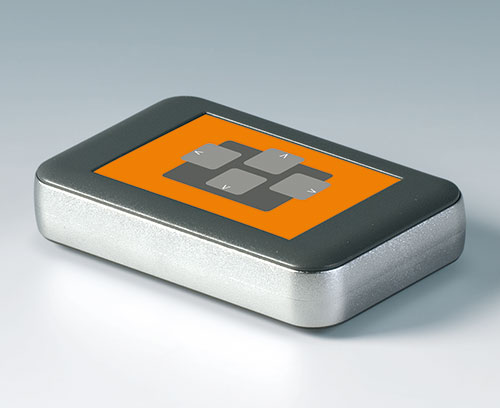

  • recessed operating area for protecting the membrane keypad or decorative foil/label

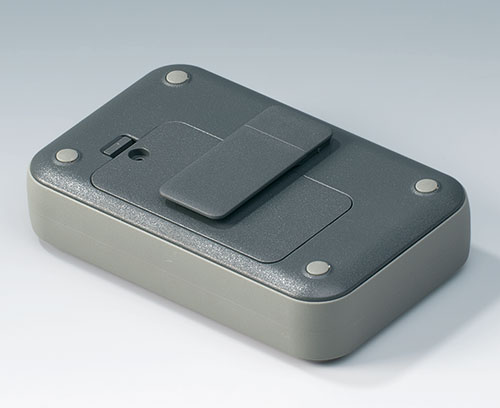

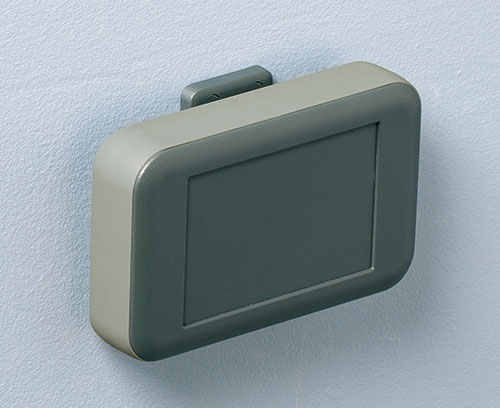

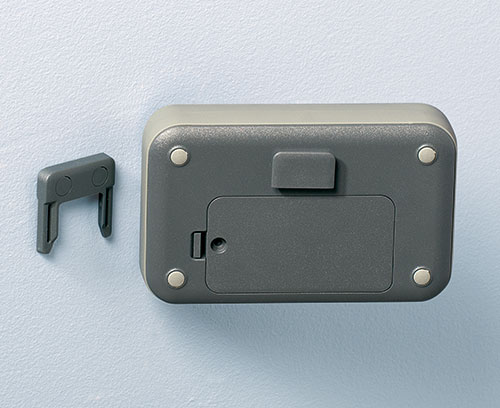

  • combi-clip serves as a belt clip and/or wall suspension element (accessory)

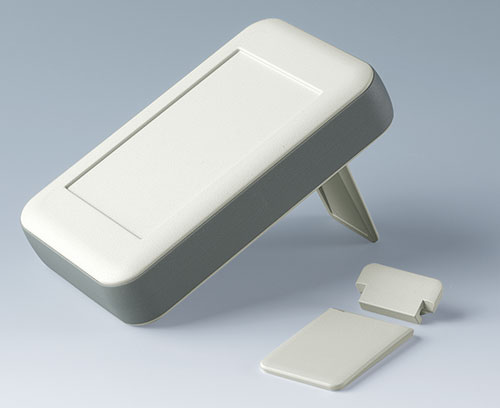

  • tilt foot bar for ergonomic canting on a desk

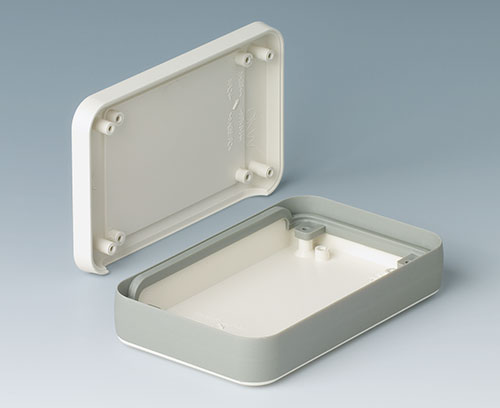

  • internal fastening pillars for PCBs
Generate PDF
  • Application Examples

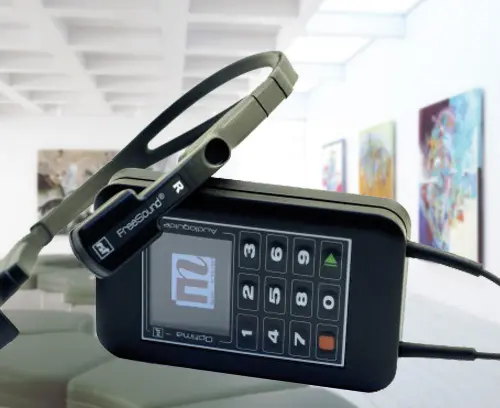

Application fields

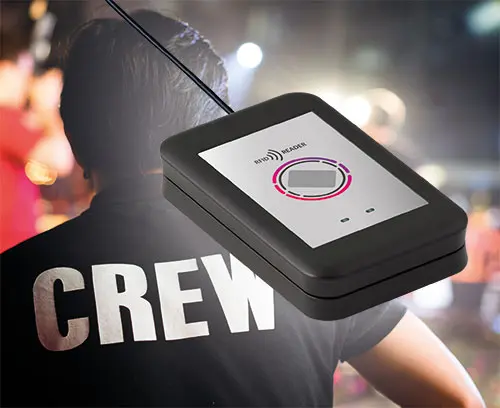

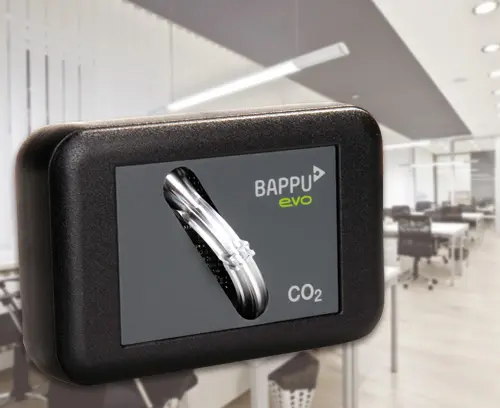

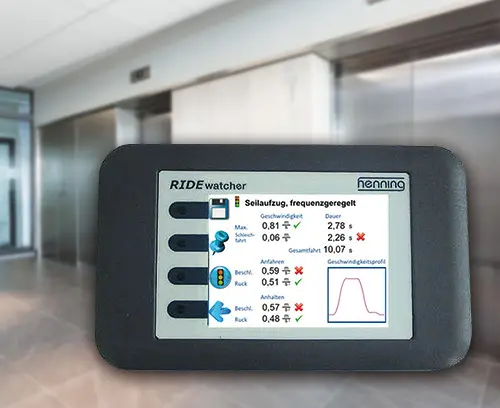

All types of remote control devices, wireless or with cable, measurement and control engineering, digital control technology, medical and laboratory technology, peripheral and interface equipment, communications technology, IoT/IIoT, environmental engineering, energy management, etc.

  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
product added to your basket

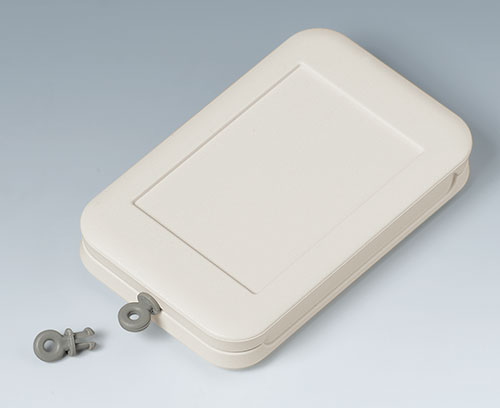

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Close

A9100001

Ring eyelet
product added to your basket
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano
A9150011 Intermediate ring S

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9150011

Intermediate ring S
product added to your basket
ABS (UL 94 HB)
matt chromed
54x85x12mm

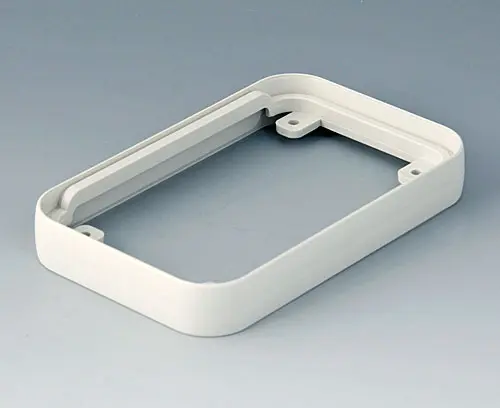

A9150017 Intermediate ring S

A9150017

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150017

Intermediate ring S
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
54x85x12mm

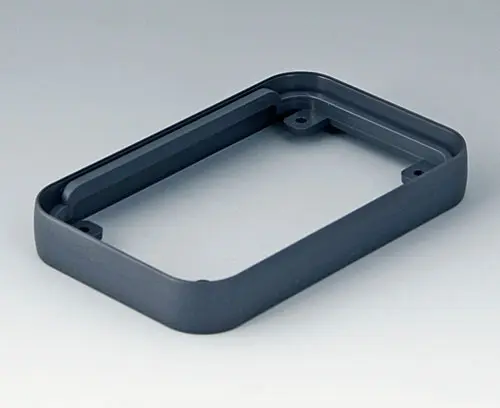

A9150018 Intermediate ring S

A9150018

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150018

Intermediate ring S
product added to your basket
ABS (UL 94 HB)
lava
54x85x12mm
A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150118

Intermediate protection ring S
product added to your basket
SEBS (TPE)
volcano
54x85x12mm
A9150219 Intermediate ring S

A9150219

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9150219

Intermediate ring S
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
54x85x12mm

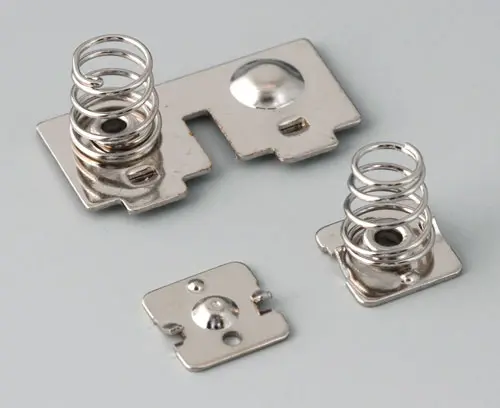

A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9151010

Set of battery clips, 2 x AAA
product added to your basket
Steel
nickel-plated

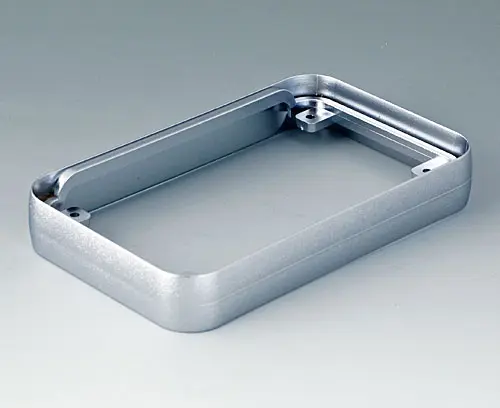

A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9151011

Intermediate ring M
product added to your basket
ABS (UL 94 HB)
matt chromed
68x108x16mm

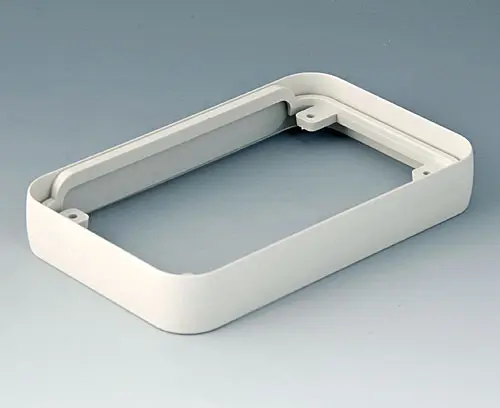

A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151017

Intermediate ring M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm
A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151018

Intermediate ring M
product added to your basket
ABS (UL 94 HB)
lava
68x108x16mm

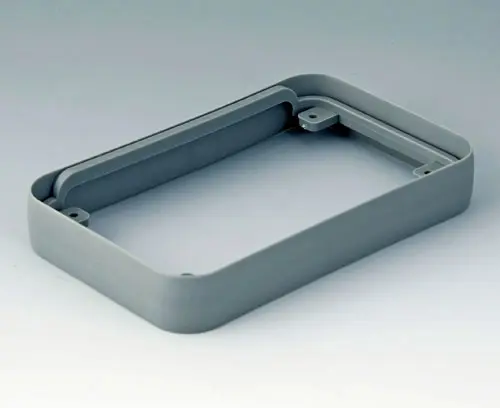

A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151118

Intermediate protection ring M
product added to your basket
SEBS (TPE)
volcano
68x108x16mm
A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9151219

Intermediate ring M
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm

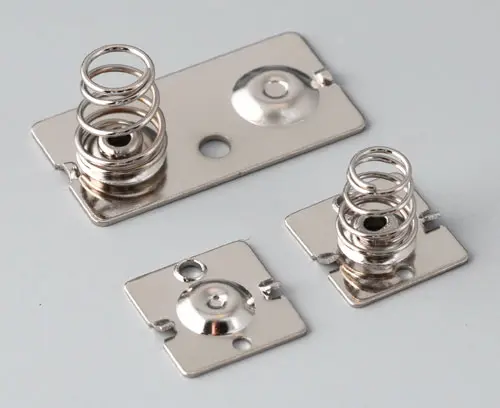

A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9152010

Set of battery clips, 2/4 x AA
product added to your basket
Steel
nickel-plated

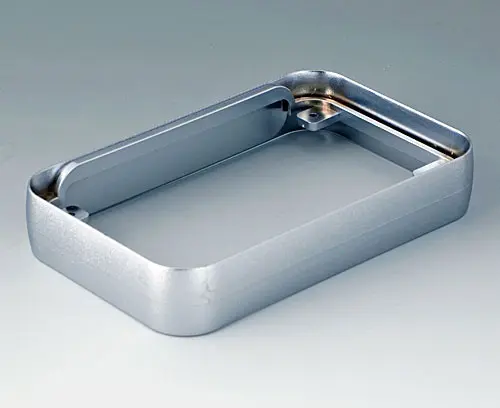

A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9152011

Intermediate ring L
product added to your basket
ABS (UL 94 HB)
matt chromed
76x120x21mm

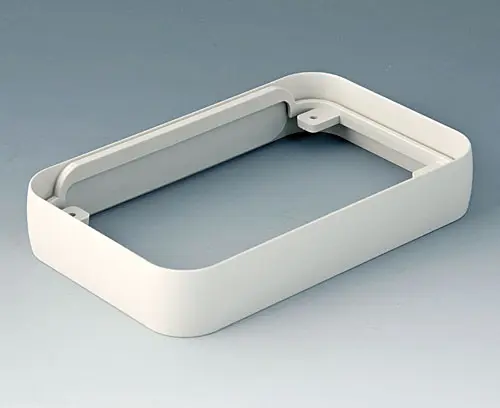

A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152017

Intermediate ring L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152018

Intermediate ring L
product added to your basket
ABS (UL 94 HB)
lava
76x120x21mm

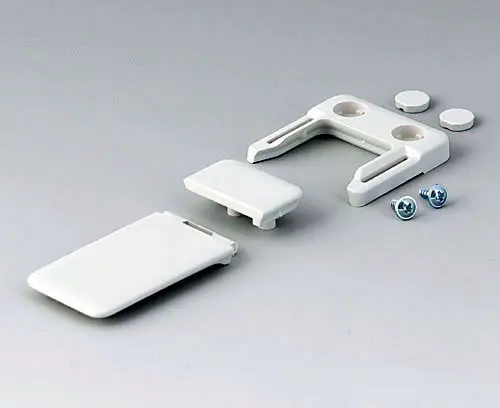

A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152047

Combi-Clip
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
45x27mm
A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152048

Combi-Clip
product added to your basket
ABS (UL 94 HB)
lava
45x27mm
A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152049

Combi-Clip
product added to your basket
ABS (UL 94 HB)
black RAL 9005
45x27mm

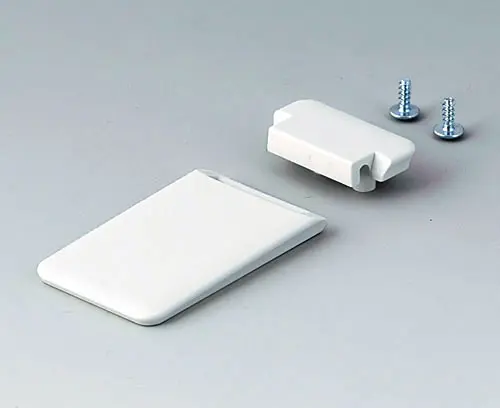

A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152057

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152058

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
lava
A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152059

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
black RAL 9005

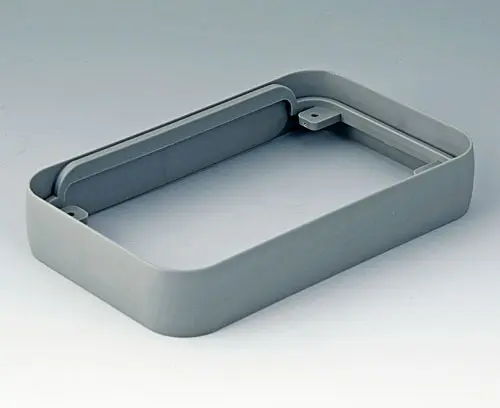

A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152118

Intermediate protection ring L
product added to your basket
SEBS (TPE)
volcano
76x120x21mm

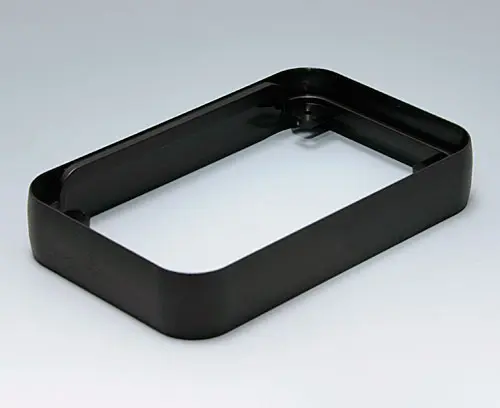

A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9152219

Intermediate ring L
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm
A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153011

Intermediate ring XL
product added to your basket
ABS (UL 94 HB)
matt chromed
96x154x26mm
A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153017

Intermediate ring XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm
A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153018

Intermediate ring XL
product added to your basket
ABS (UL 94 HB)
lava
96x154x26mm
A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153118

Intermediate ring XL
product added to your basket
SEBS (TPE)
volcano
96x154x26mm
A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153219

Intermediate ring XL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V
product added to your basket
Steel
tin-plated

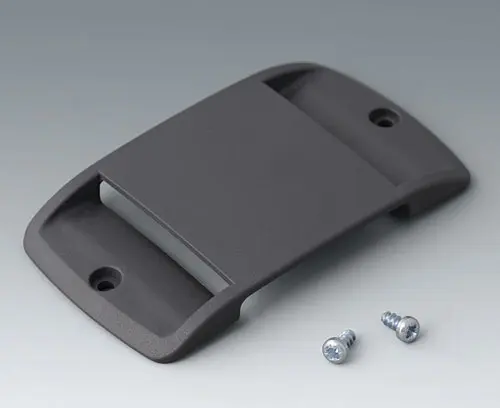

B9106128 Strap eyelet

B9106128

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

Close

B9106128

Strap eyelet
product added to your basket
ABS (UL 94 HB)
lava

Customising options for Soft-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
