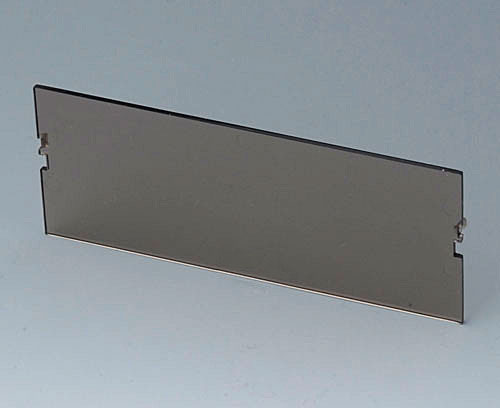

B6604580

Front panel, 6 modules, Vers. VI

Snap-in.

Supply

1 front panel

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for B6604580

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

B6504121

RAILTEC B, 6 modules, Vers. VI
product added to your basket

light grey RAL 7035
105x90x58mm

Customising options for B6604580

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
smoked glass
Standards
RoHS compliant
REACH compliant
Width
102 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
8 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6604580 and don't forget to request a quotation!
