Accessories for enclosures
A9167017

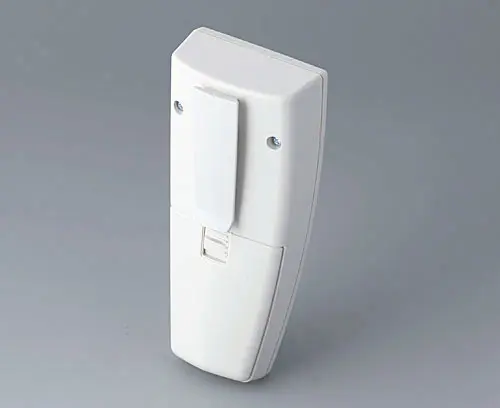

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 Clip, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9167017
Please select the product details you would like to include in the PDF.
Add to my basket
A9066107
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. Iproduct added to your basket
off-white RAL 9002
96x47x24mm
A9066117
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIproduct added to your basket
off-white RAL 9002
96x47x24mm
A9066127
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIproduct added to your basket
off-white RAL 9002
96x47x24mm
A9066137

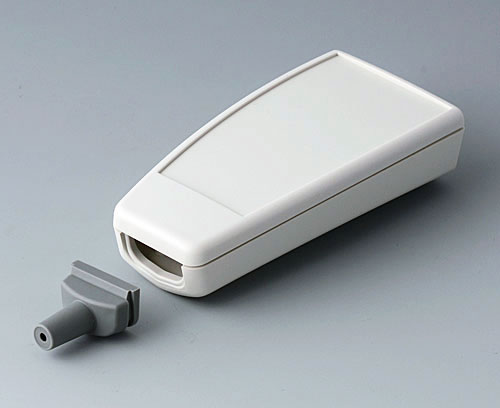

SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVproduct added to your basket
off-white RAL 9002
96x47x24mm
A9066147
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. Vproduct added to your basket
off-white RAL 9002
96x47x24mm
A9066317
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIproduct added to your basket
off-white RAL 9002
96x47x24mm
A9067107
SMART-CASE L, Vers. I
Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. Iproduct added to your basket
off-white RAL 9002
140x62.7x30.5mm
A9067117
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIproduct added to your basket
off-white RAL 9002
140x62.7x30.5mm
,
A9067127
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIproduct added to your basket
off-white RAL 9002
140x62.7x30.5mm
,
A9067137

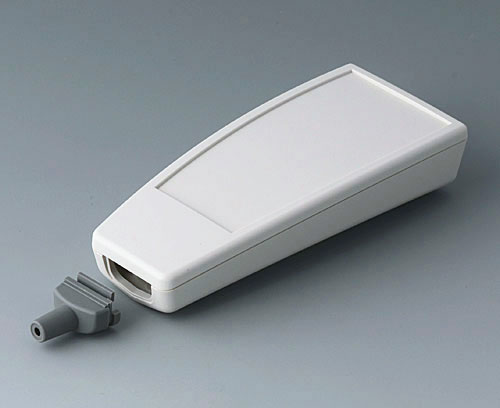

SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVproduct added to your basket
off-white RAL 9002
140x62.7x30.5mm
,
A9067147
SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. Vproduct added to your basket
off-white RAL 9002
140x62.7x30.5mm
,
A9068107

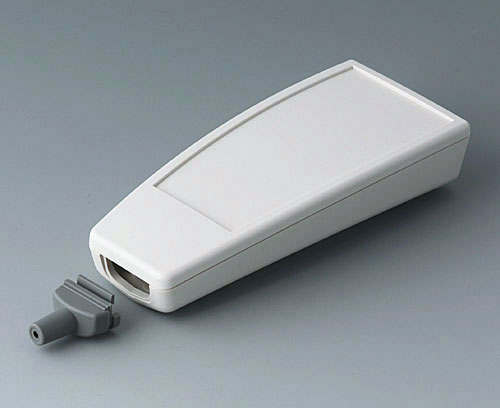

SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068107
SMART-CASE XL, Vers. Iproduct added to your basket
off-white RAL 9002
168x74.4x35.4mm
A9068117
SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068117
SMART-CASE XL, Vers. IIproduct added to your basket
off-white RAL 9002
168x74.4x35.4mm
,
A9068127
SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068127
SMART-CASE XL, Vers. IIIproduct added to your basket
off-white RAL 9002
168x74.4x35.4mm
,
A9068137
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068137
SMART-CASE XL, Vers. IVproduct added to your basket
off-white RAL 9002
168x74.4x35.4mm
,
A9068147
SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068147
SMART-CASE XL, Vers. Vproduct added to your basket
off-white RAL 9002
168x74.4x35.4mm
,
Customising options for A9167017
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 684 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9167017 and don't forget to request a quotation!
