ART-CASE

Art-Case

Uniquely styled electronic enclosures

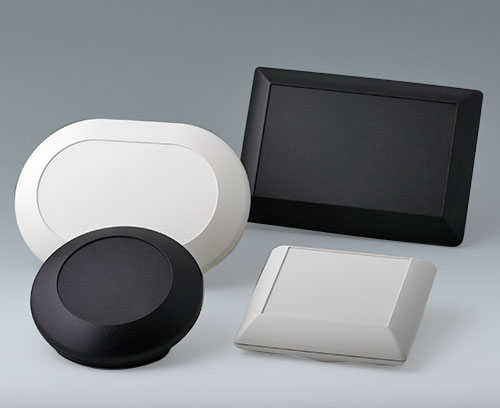

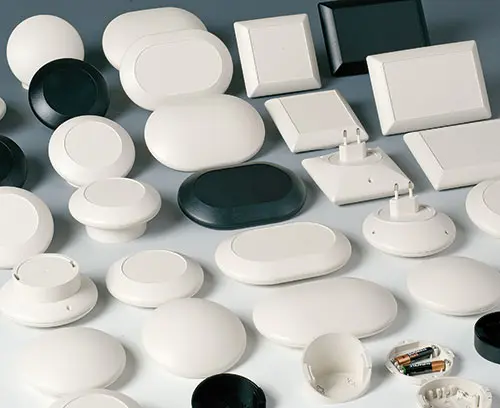

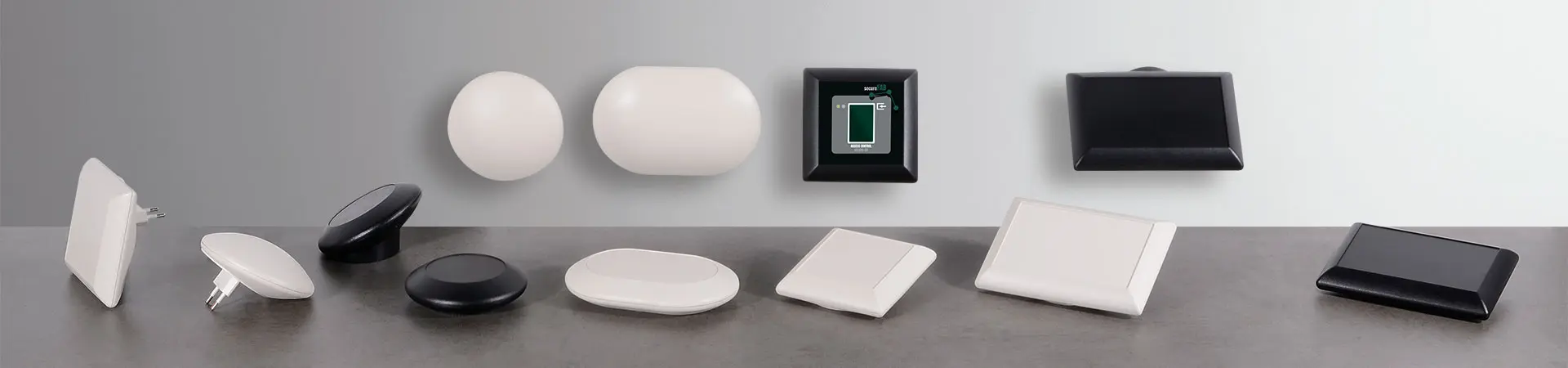

The ART-CASE plastic enclosures series sets new standards for design and function with four uniquely contoured shapes: “round”, “square”, “oval” and “edge”

  • attractive eye-catching design for indoor electronics used in the living and working environments
  • four designs in two standard colours

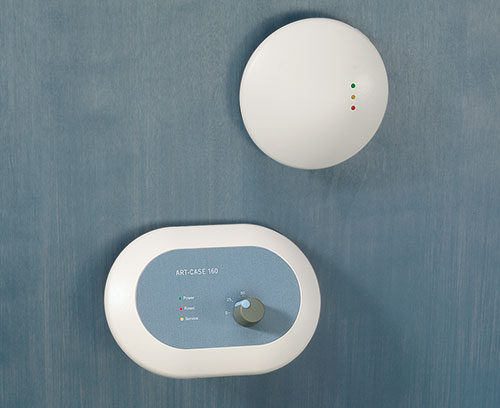

  • huge range of possible combinations for mobile, desktop, wall or ceiling mounted applications
  • order the basic case then select either a bottom lid or base section
  • top convex (H) or flat with recessed area (F)
  • lid screw fitted to the bottom

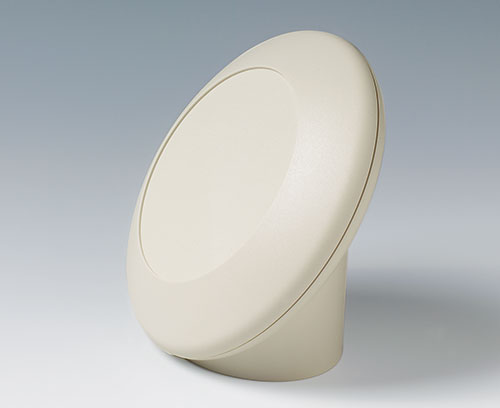

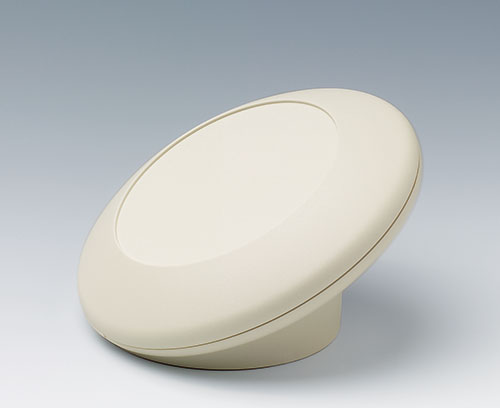

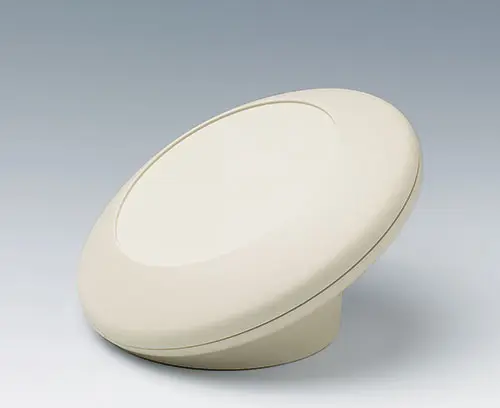

  • base 30° or 55° inclined for user-friendly installation and assembly angles

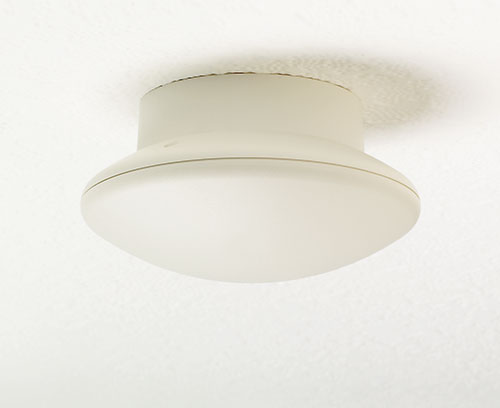

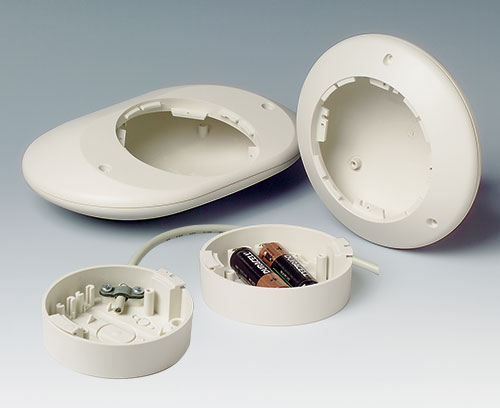

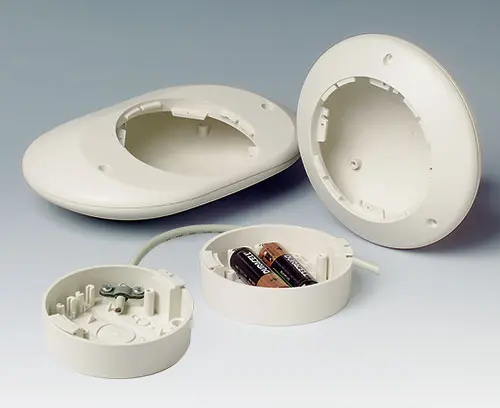

  • base level spacer for ceiling/wall mounting, incl. supports 2 x AA and strain relief

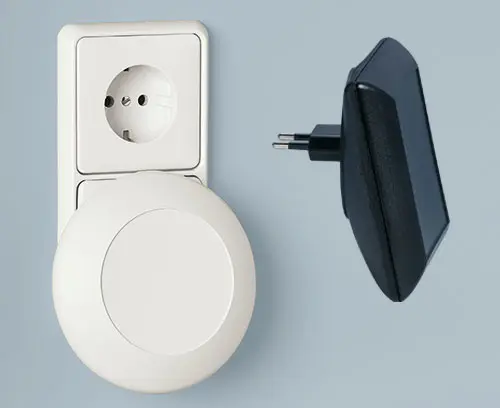

  • Euro plug module according DIN VDE 0620 part 101

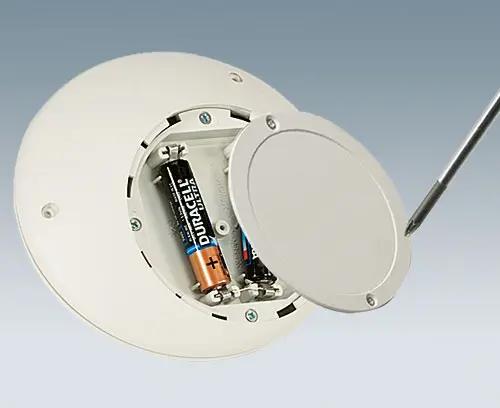

  • battery compartment for 2 x AAA cells (accessory)
  • protection class IP 40
  • internal fastening pillars for PCBs etc.

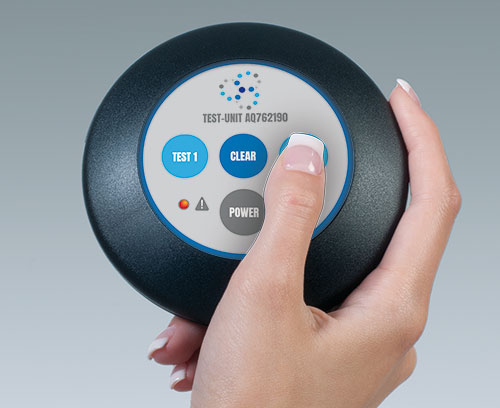

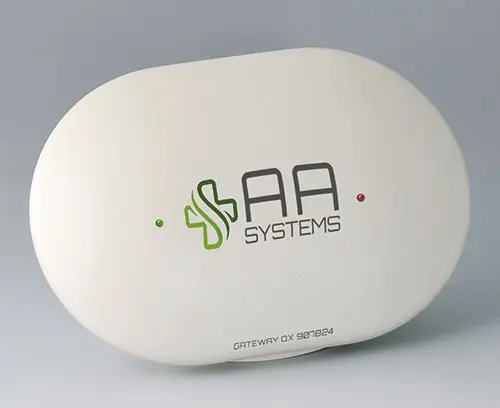

  • Application Examples

Application fields

Ideal indoor electrical and electronic applications, e.g.
  • Transmission and reception units in building services management systems and building installations
  • Medical technology, health care
  • Computer peripherals
  • Security technology
  • Sensors, optoelectronics
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".

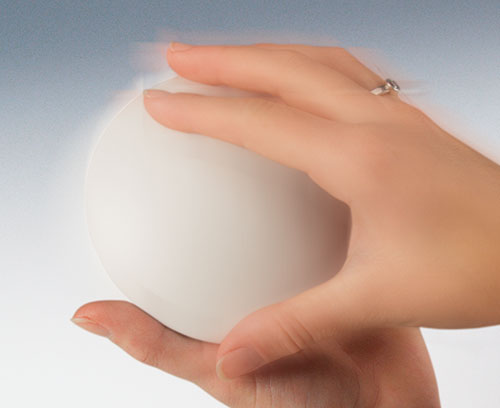

Design R

ART-CASE R

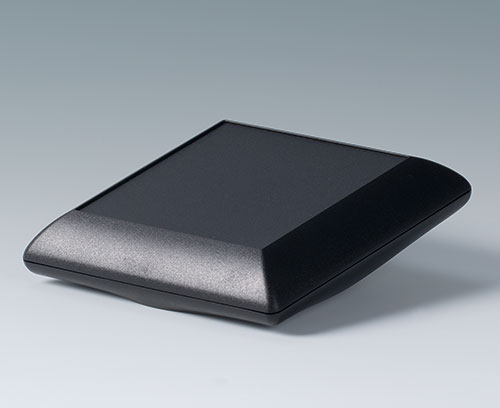

Design S

ART-CASE S

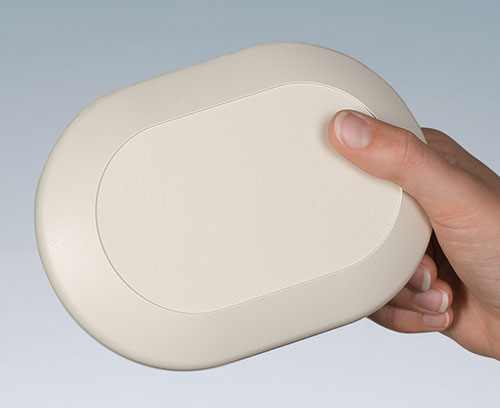

Design O

ART-CASE O

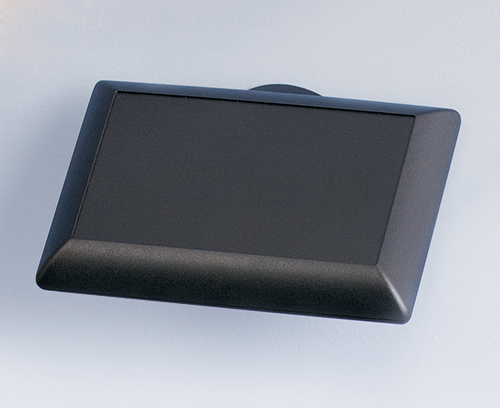

Design E

ART-CASE E

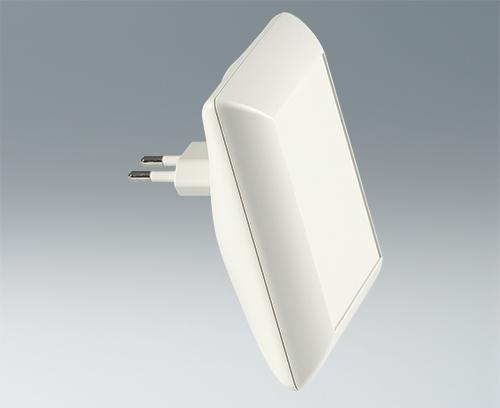

With Euro plug-in module

ART-CASE with Euro plug-in module

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Close

A9166001

Set of battery clips, 2 x AAA Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Close

A9166002

Battery contact, 2 x AAA Steel
tin-plated

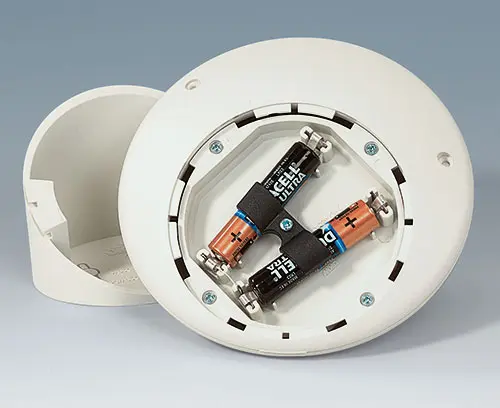

A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Close

A9166003

Battery holder, 2 x AAA PA 6 (UL 94 HB)
black RAL 9005
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA Steel
tin-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports.

Supply 1 strain relief device, 2 screws

Close

A9199005

Strain relief PA 6
volcano
A9207150 Rubber feet 6.5 x 2 mm

A9207150

Rubber feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Rubber feet 6.5 x 2 mm transparent
B5111107 Battery compartment, 2 x AAA

B5111107

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

Close

B5111107

Battery compartment, 2 x AAA ABS (UL 94 HB)
off-white RAL 9002
B5111109 Battery compartment, 2 x AAA

B5111109

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

Close

B5111109

Battery compartment, 2 x AAA ABS (UL 94 HB)
black RAL 9005
B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Close

B5111201

Set of screws

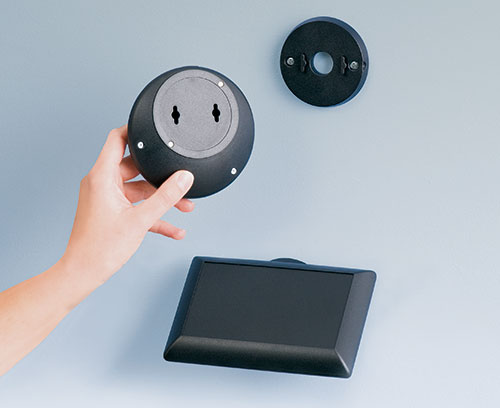

B5111307 Wall mounting set

B5111307

Wall mounting set Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screw

Close

B5111307

Wall mounting set ABS (UL 94 HB)
off-white RAL 9002

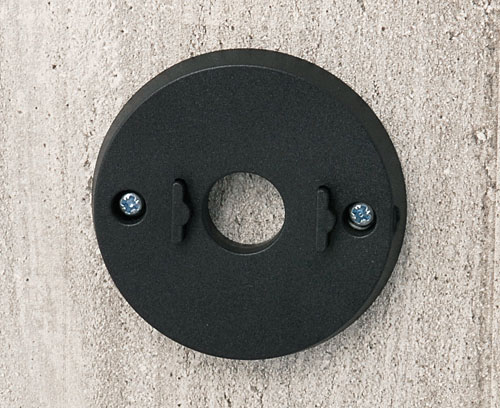

B5111309 Wall mounting set

B5111309

Wall mounting set Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screws

Close

B5111309

Wall mounting set ABS (UL 94 HB)
black RAL 9005
B5111707 Anti-rotation device

B5111707

Anti-rotation device To prevent the base from being removed.

Supply Anti-rotation device, incl. screws

Close

B5111707

Anti-rotation device ABS (UL 94 HB)
off-white RAL 9002

Customising options for Art-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
