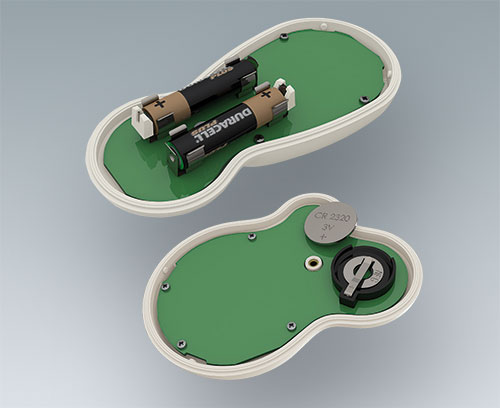

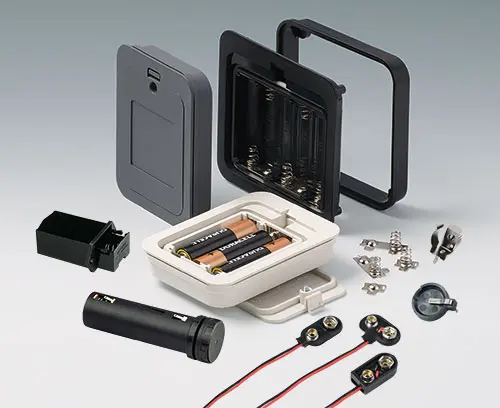

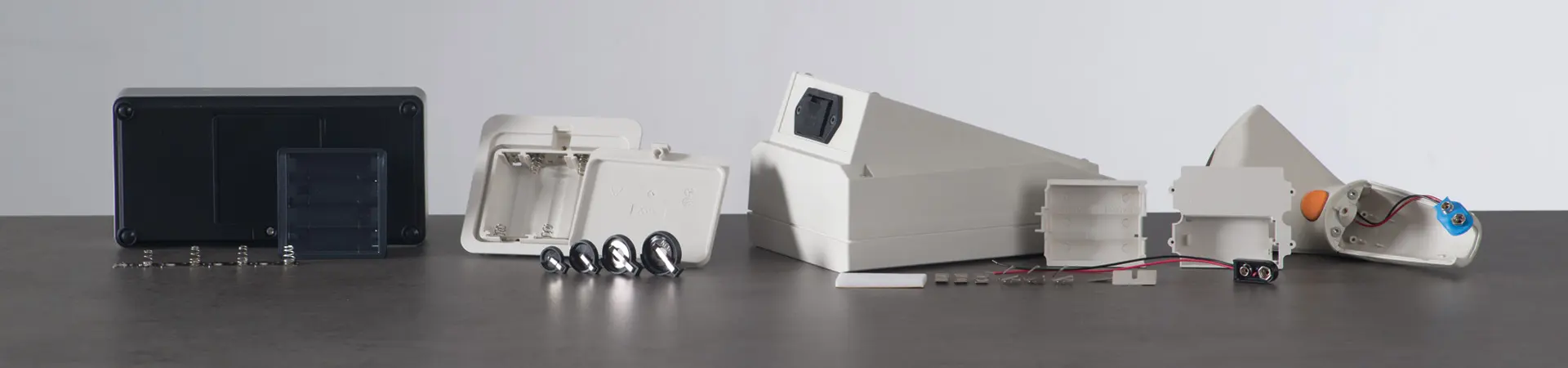

Battery compartments and holders, button cell holders

Battery compartments and holders, button cell holders

  • Universal battery compartments and holders for AAA, AA, C and 9V size batteries for direct installation in front panels or enclosure walls.
  • Also, button cell holders for installation on PCBs.
  • Browse Full List
  • View Customising Options
A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

Close

A9156001

Battery holder, 2 x AA
product added to your basket
PP
black RAL 9005

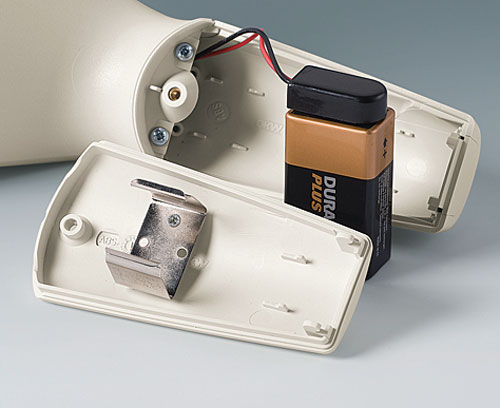

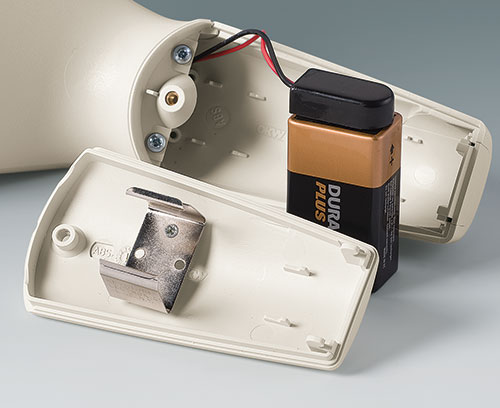

A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

Close

A9156003

Battery holder, 1 x 9 V (PP3)
product added to your basket
Steel
nickel-plated
A9174004 Battery compartment, 4 x AA

A9174004

Battery compartment, 4 x AA Application: for 4 x 1.5 V mignon-cells (AA).

Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.

Supply 1 battery compartment, assembly kit

Close

A9174004

Battery compartment, 4 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193037

Button cell holder, Ø 20 mm
product added to your basket
A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193038

Button cell holder, Ø 23 mm
product added to your basket

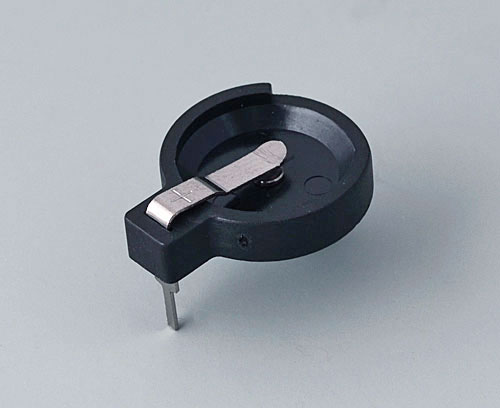

A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193039

Button cell holder, Ø 12 mm
product added to your basket
A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193040

Button cell holder, Ø 16 mm
product added to your basket

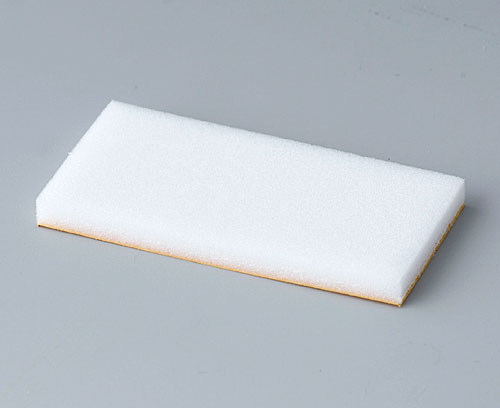

A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your basket
PE foam
50x25x4mm
A9250251 Battery spacer

A9250251

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply 1 spacer

Close

A9250251

Battery spacer
product added to your basket
PE foam
50x25x3mm

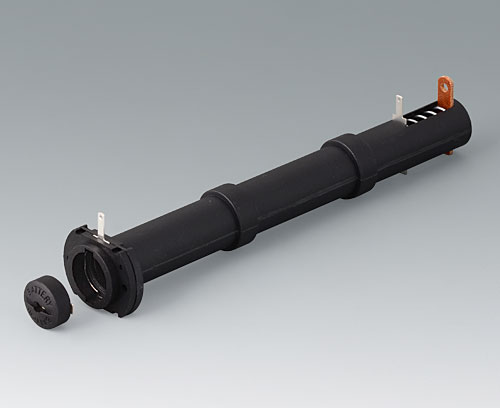

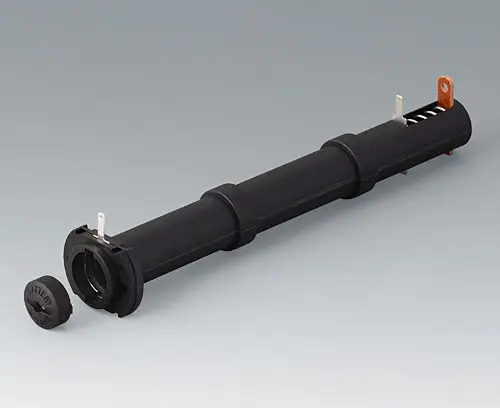

A9301330 Battery holder, 3 x AA

A9301330

Battery holder, 3 x AA Battery holder for direct installation in front and rear panels. Battery replacement is considerably easier - housings need not be opened.

Version For 3 mignon cells 1.5 V (AA), mounting lenght 169.5 mm

Supply 1 battery holder

Close

A9301330

Battery holder, 3 x AA
product added to your basket
PA
black RAL 9005

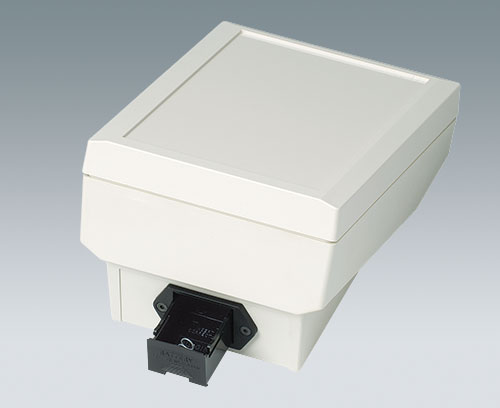

A9302510 Battery holder, 1 x 9 V (PP3)

A9302510

Battery holder, 1 x 9 V (PP3) Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version For 1 flat battery 9 V (PP3)

Supply 1 battery holder, 1 drawer

Close

A9302510

Battery holder, 1 x 9 V (PP3)
product added to your basket
PA
black RAL 9005
A9302540 Battery holder, 4 x AA

A9302540

Battery holder, 4 x AA Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery holder, 1 drawer

Close

A9302540

Battery holder, 4 x AA
product added to your basket
PA
black RAL 9005

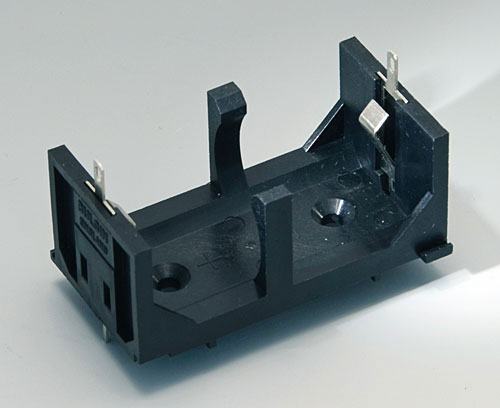

A9303210 Battery holder, 1 x C

A9303210

Battery holder, 1 x C Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.

Version For 1 baby cell 1.5 V (C/LR14)

Supply 1 battery holder

Close

A9303210

Battery holder, 1 x C
product added to your basket
PA
black RAL 9005

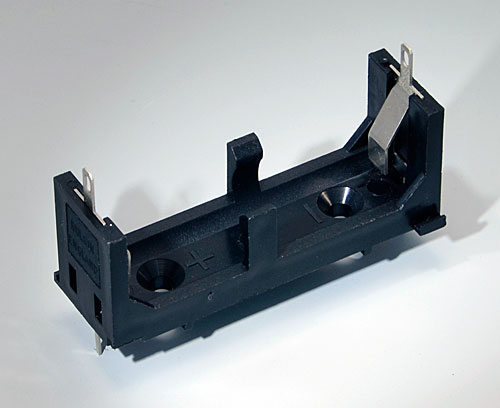

A9303310 Battery holder, 1 x AA

A9303310

Battery holder, 1 x AA Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.

Version For 1 mignon cell 1.5 V (AA/LR6)

Supply 1 battery holder

Close

A9303310

Battery holder, 1 x AA
product added to your basket
PA
black RAL 9005

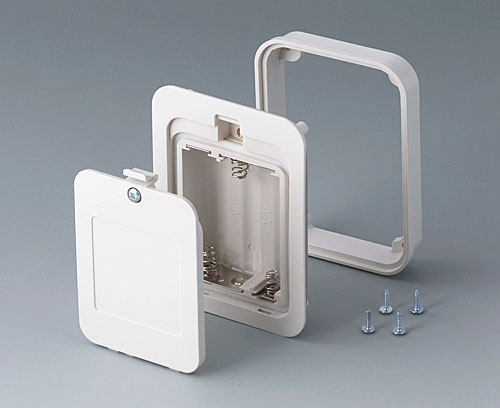

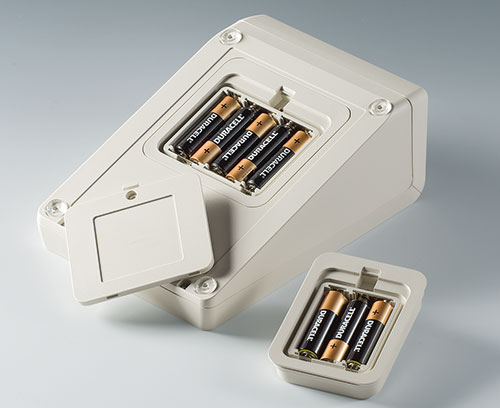

A9336117 Battery compartment kit, 3 x AA

A9336117

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9336117

Battery compartment kit, 3 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
93x69mm
IP 54

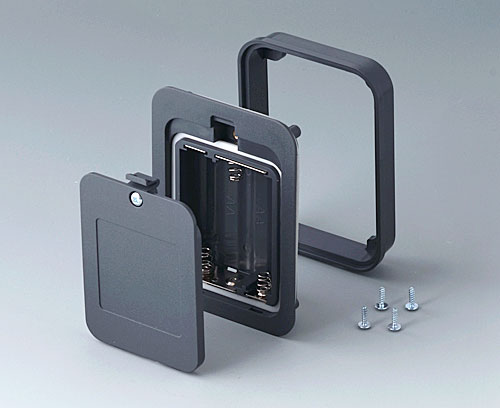

A9336118 Battery compartment kit, 3 x AA

A9336118

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9336118

Battery compartment kit, 3 x AA
product added to your basket
ABS (UL 94 HB)
lava
93x69mm
IP 54

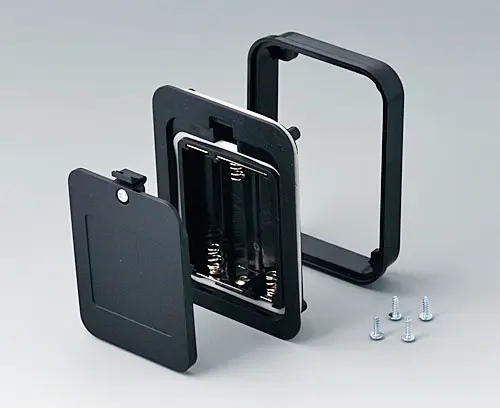

A9336119 Battery compartment kit, 3 x AA

A9336119

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9336119

Battery compartment kit, 3 x AA
product added to your basket
ABS (UL 94 HB)
black RAL 9005
93x69mm
IP 54
A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9338117

Battery compartment kit, 5 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

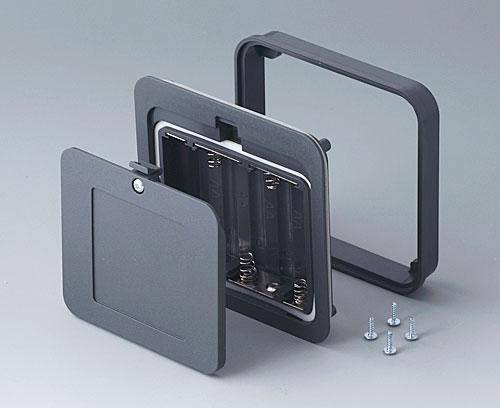

A9338118 Battery compartment kit, 5 x AA

A9338118

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9338118

Battery compartment kit, 5 x AA
product added to your basket
ABS (UL 94 HB)
lava
93x98mm
IP 54

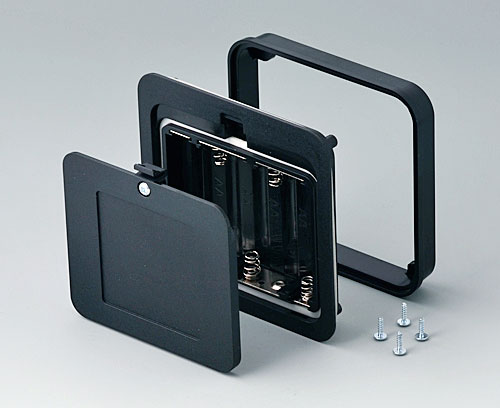

A9338119 Battery compartment kit, 5 x AA

A9338119

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9338119

Battery compartment kit, 5 x AA
product added to your basket
ABS (UL 94 HB)
black RAL 9005
93x98mm
IP 54
A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9338218

Battery compartment kit, 5 x AA
product added to your basket
ASA+PC (UL 94 V-0)
lava
93x98mm
IP 54
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Close

A9345217

Set of battery compartment, 4 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Customising options for Battery compartments and holders, button cell holders

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
