The optimum connection

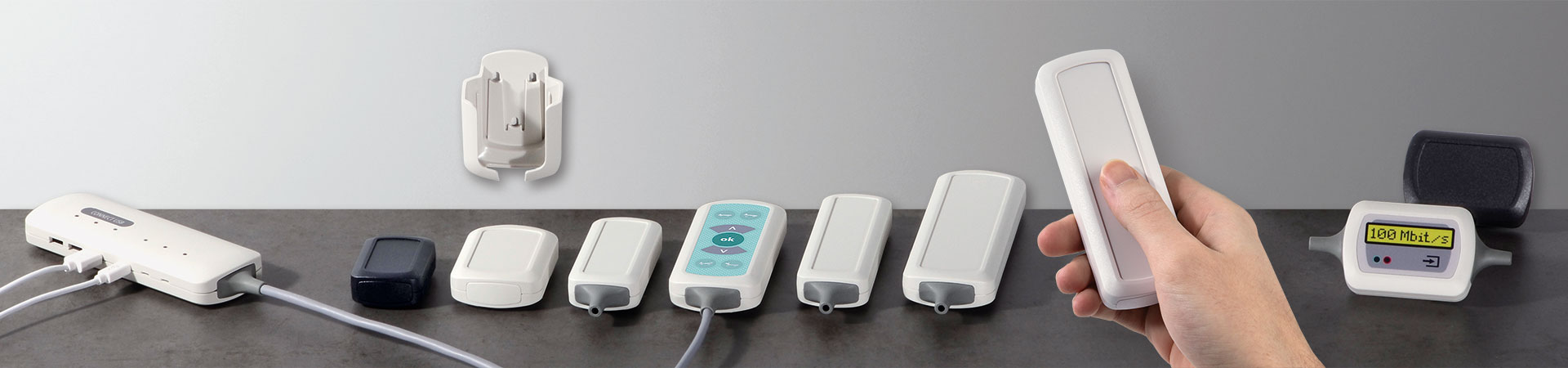

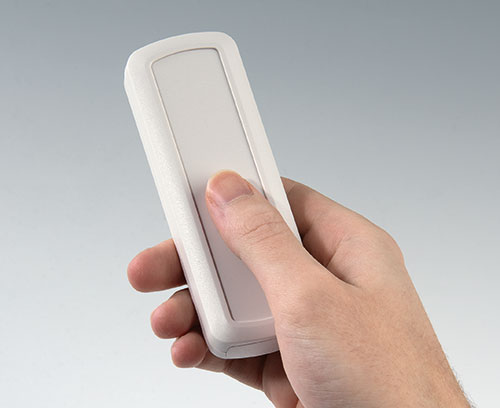

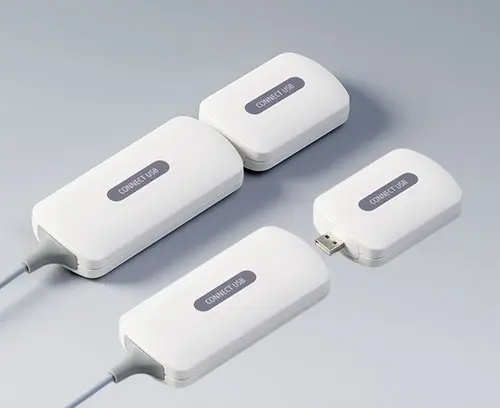

The CONNECT enclosures range is ideal for wired and battery-powered mobile applications.

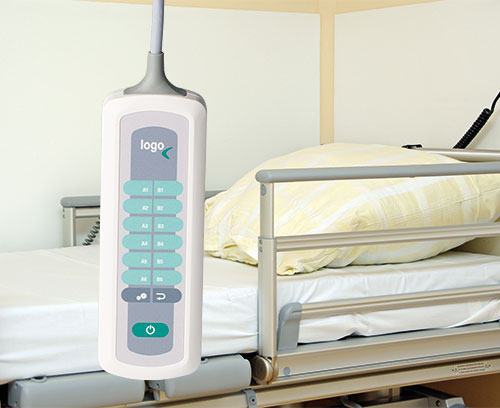

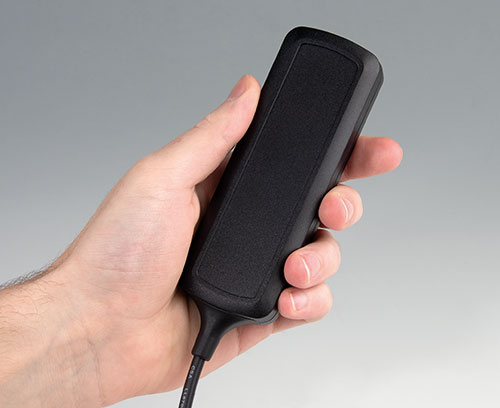

- New: CONNECT S with a width of only 42 mm is particularly easy to grip. It is ideal for remote controls, measuring instruments, test instruments etc. or as an interface enclosure with/without a cable connection
- two enclosure shells, convex and flattened with a recessed panel

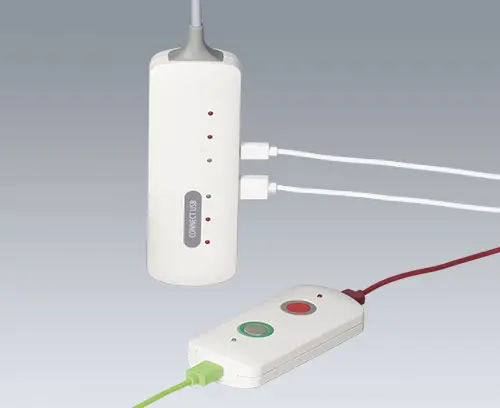

- the two shells snap into each other, no screws required, this saves time during assembly, and you can also choose the front side of the device

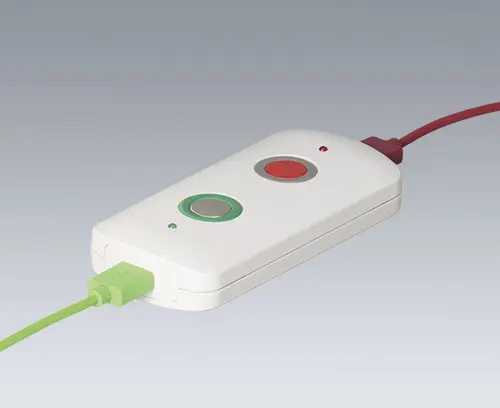

- cutouts at both ends; to complete the enclosure, end parts and/or cable glands can be fitted

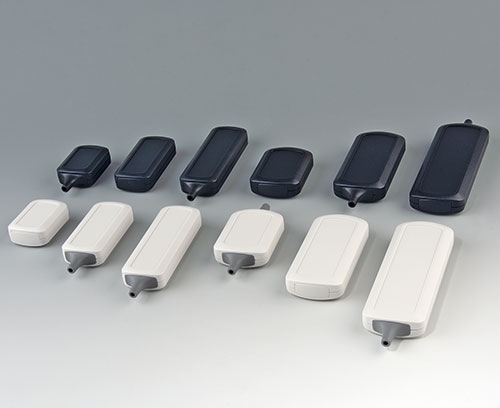

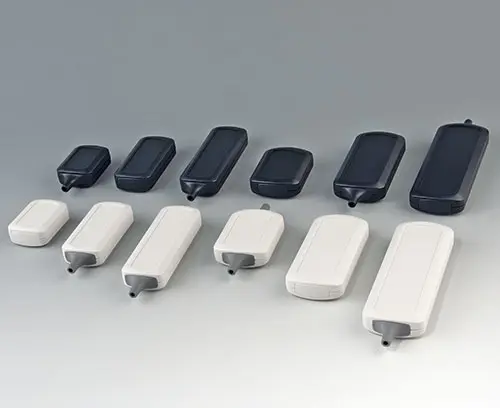

- CONNECT S & M in three enclosure lengths each to match the application exactly
- the enclosure shells and the end parts are made of UV-stabilised V-0 material
- protection class IP 40 (with end parts)

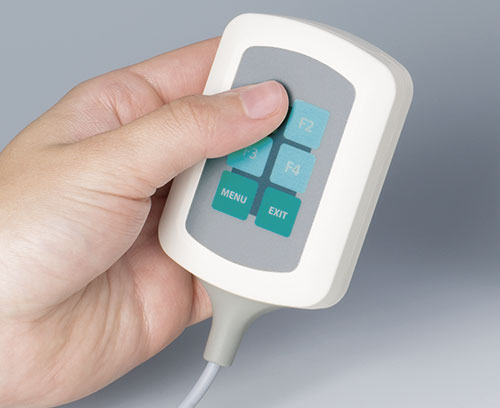

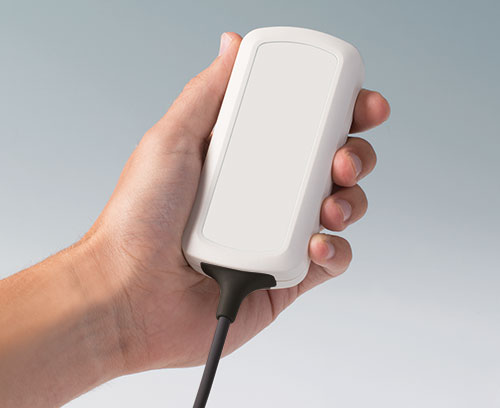

- integrated strain relief with the cable gland kit

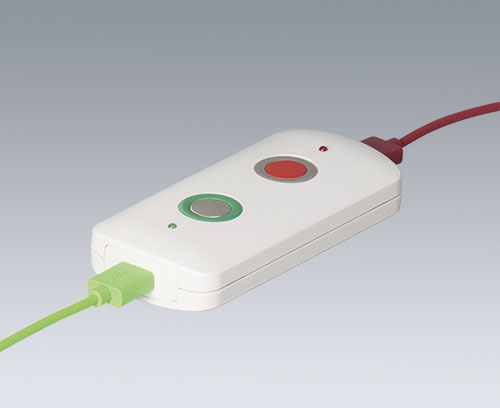

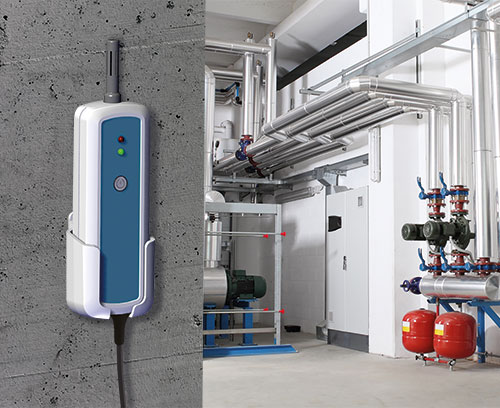

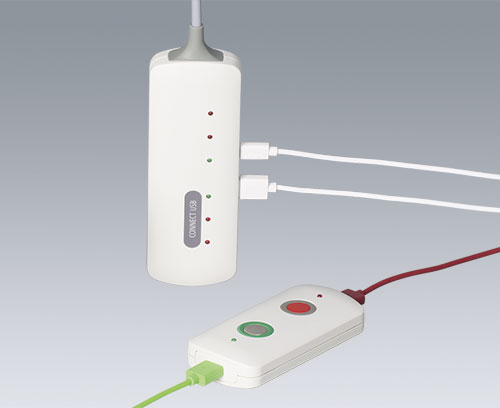

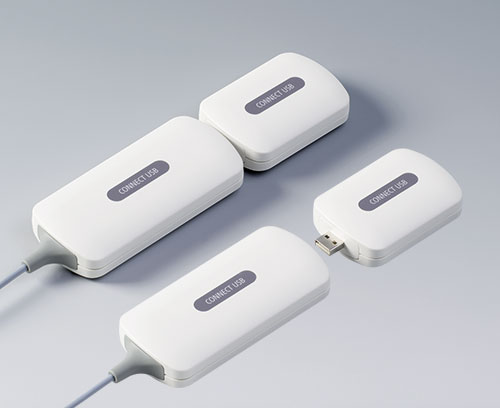

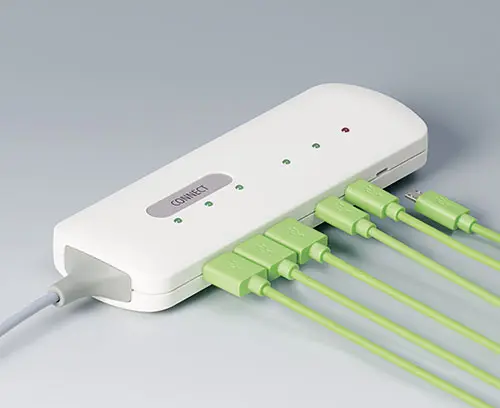

- enough room for the installation of compact displays, LEDs and USB connectors and measuring sensors

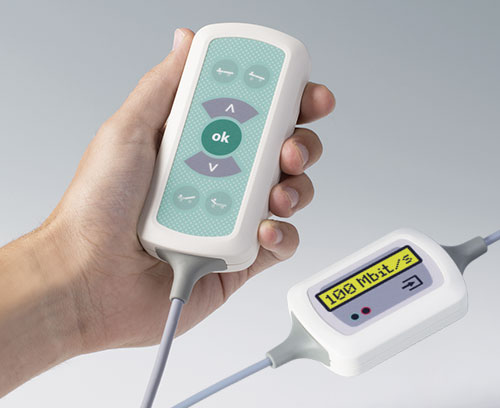

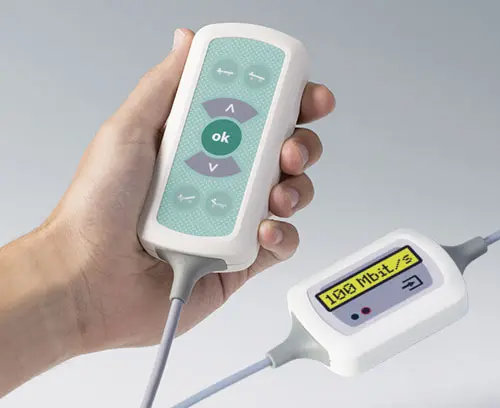

- recessed surface to protect the membrane keyboard, decor foil or label

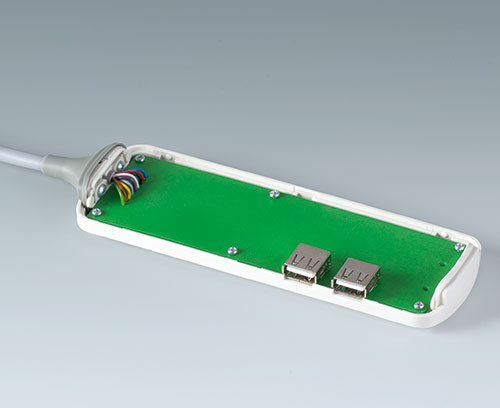

- attachment pillars for PCBs and components in the flat enclosure shell

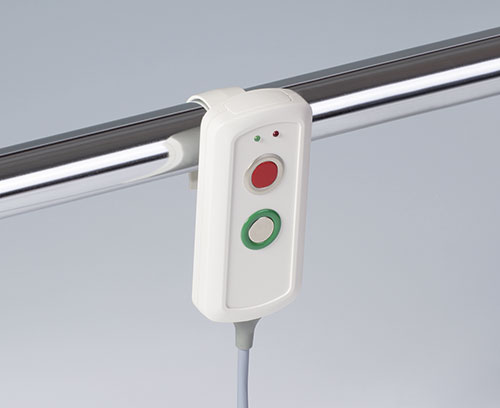

- holding clamps for round tubes up to ø 32 mm available as accessories (CONNECT S: 90/120 mm long, CONNECT M: 116/156 mm long)

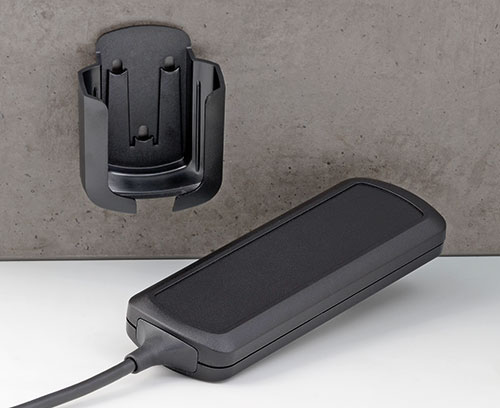

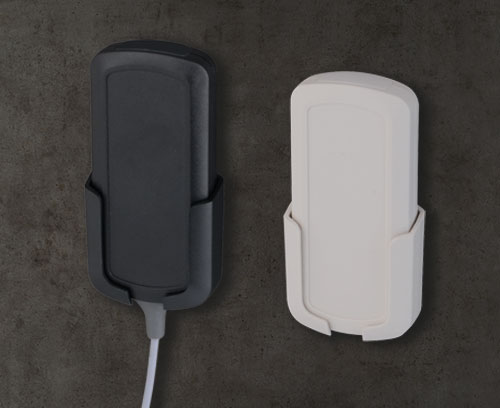

- holder for secure storage on the wall or similar as an accessory
Application Fields
Data systems engineering, network technology, building services systems, safety engineering, IoT/ IIoT, medical and therapeutic applications, analytical instruments in the laboratory, measuring technology, including detectors with measuring sensors, test systems/instruments, data loggers in environmental technology, sensor systems, etc.
B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT Sproduct added to your basket
off-white RAL 9002
60x42x22mm
B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT Sproduct added to your basket
black RAL 9005
60x42x22mm
B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT Sproduct added to your basket
off-white RAL 9002
90x42x22mm
B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT Sproduct added to your basket
black RAL 9005
90x42x22mm
B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT Sproduct added to your basket
off-white RAL 9002
120x42x22mm
B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT Sproduct added to your basket
black RAL 9005
120x42x22mm
B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT Mproduct added to your basket
off-white RAL 9002
76x54x22mm
B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT Mproduct added to your basket
black RAL 9005
76x54x22mm
B2833107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT Mproduct added to your basket
off-white RAL 9002
116x54x22mm
B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT Mproduct added to your basket
black RAL 9005
116x54x22mm
B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT Mproduct added to your basket
off-white RAL 9002
156x54x22mm
B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT Mproduct added to your basket
black RAL 9005
156x54x22mm
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)product added to your basket
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampproduct added to your basket
off-white RAL 9002
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampproduct added to your basket
black RAL 9005
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partproduct added to your basket
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partproduct added to your basket
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2product added to your basket
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2product added to your basket
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0product added to your basket
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0product added to your basket
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9product added to your basket
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9product added to your basket
black RAL 9005
B2921507
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder Sproduct added to your basket
off-white RAL 9002
B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder Sproduct added to your basket
black RAL 9005
B2931507
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder Mproduct added to your basket
off-white RAL 9002
B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder Mproduct added to your basket
black RAL 9005
Customising options for Connect
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
