TOPTEC

Toptec

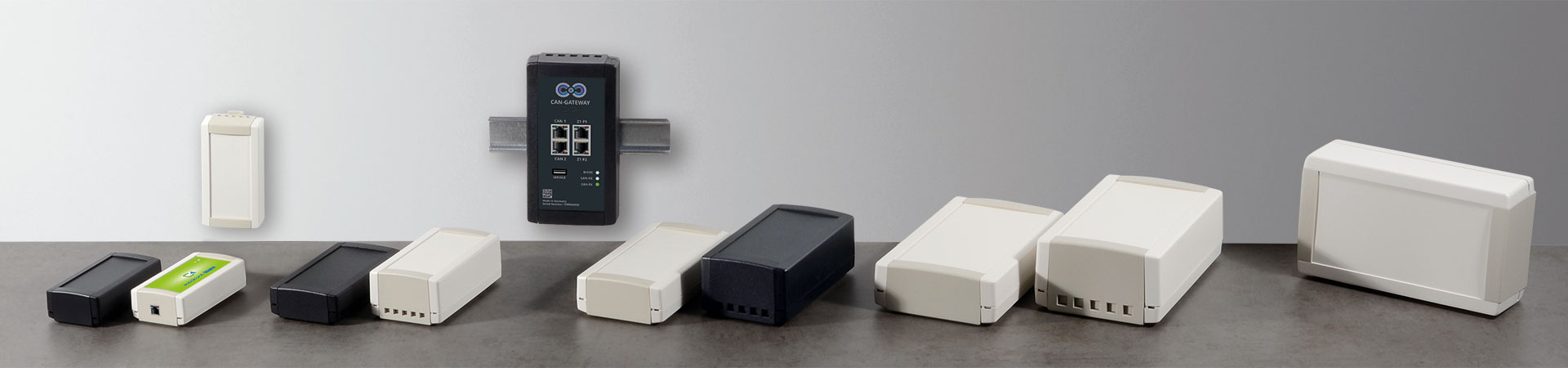

Universal plastic enclosures

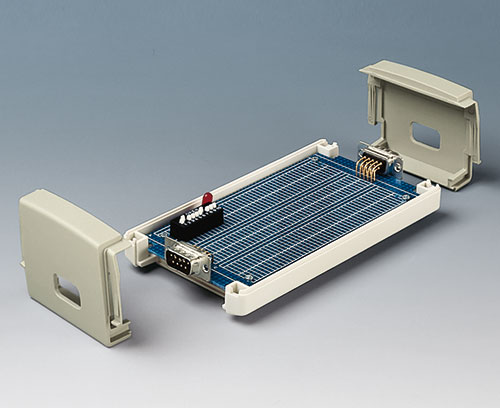

Our TOPTEC enclosures allow pre-assembled PCBs with protruding connectors and interfaces to be mounted directly into the case. It is no longer necessary to wire in the connectors after fitting the PCB into the enclosure -  an excellent advantage.

  • modern aesthetic design for indoor applications as desktop or wall mounted systems as well as DIN rail mounted devices
  • simple and secure snap-together case assembly
  • for security, a tool is required to open the case
  • base part with lateral opening for quick and easy equipping from all sides

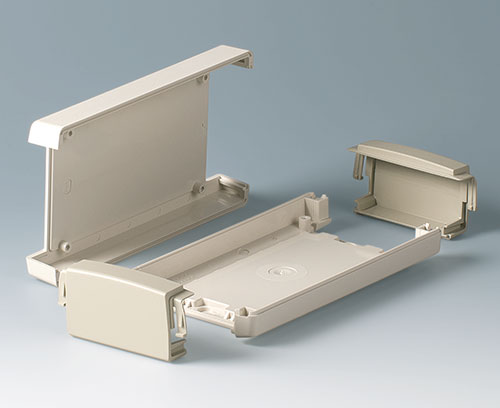

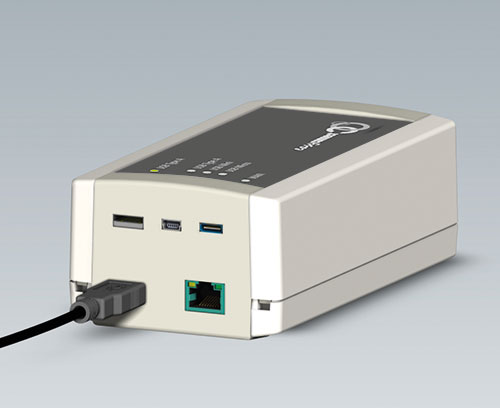

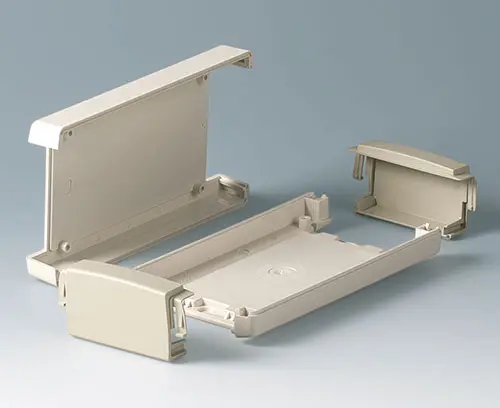

  • clip-in end panels allow PCBs, pre-fitted with connectors, to fit straight in

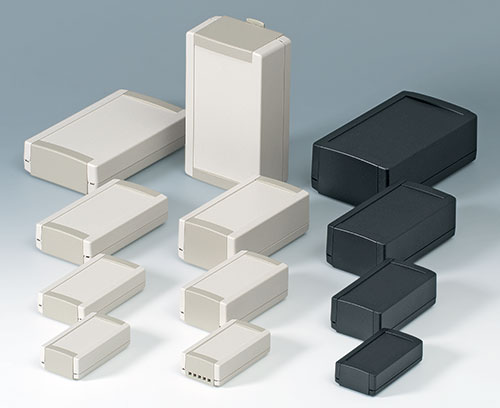

  • extensive range of 28 models

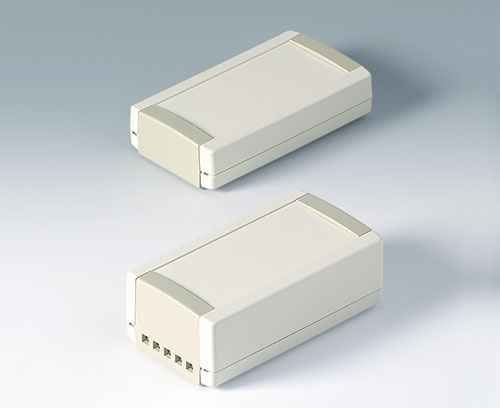

  • type F with flat top moulding
  • type H with high top moulding
  • versions with or without ventilation slots
  • ventilation slots can also be used for gas detection and sound

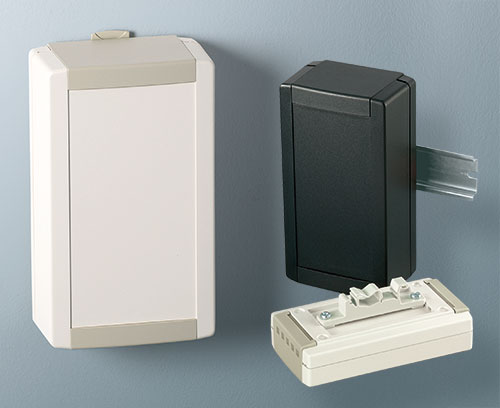

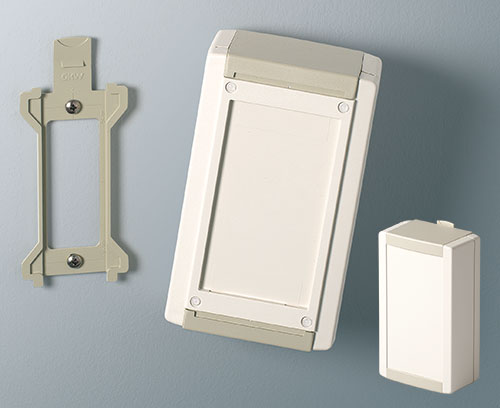

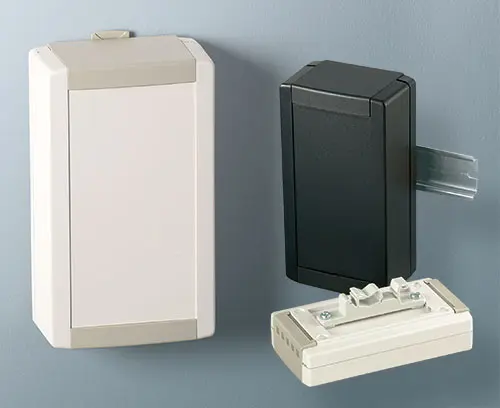

  • discreet wall mounting facility; the hidden wall suspension element, with fast release tab, snaps into apertures on the underside of the base

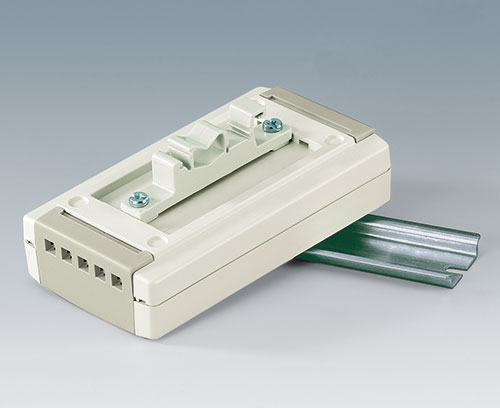

  • optional DIN rail mounting clip
  • protection class IP 40

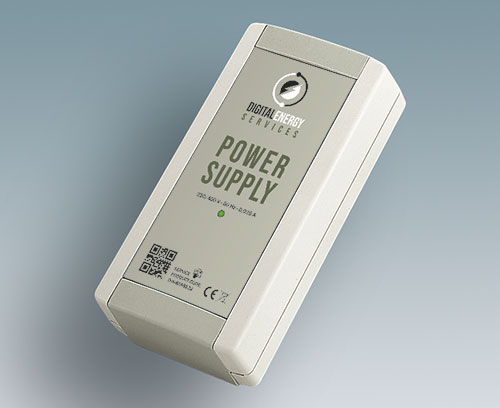

  • recess in top for a membrane keypad or label
  • internal screw pillars for PCBs etc.

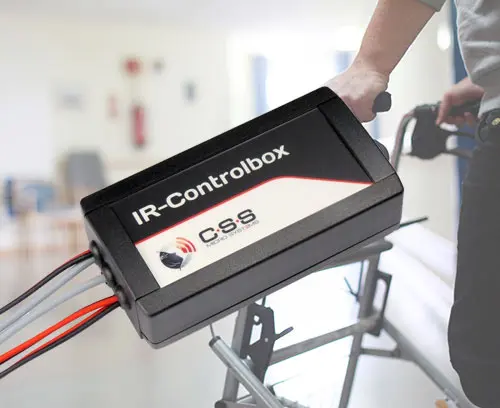

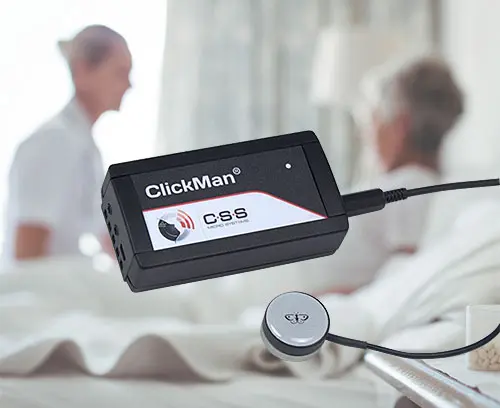

  • Application Examples

Application fields

Universal enclosures for electronic and electro-technical devices. For example,

  • Monitoring purposes as check instruments, signalling equipment and control systems
  • Medical and wellness devices
  • Laboratory technology
  • Computer peripherals
  • IoT/IIoT
  • Select Versions
  • Accessories
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".



Without ventilation slots

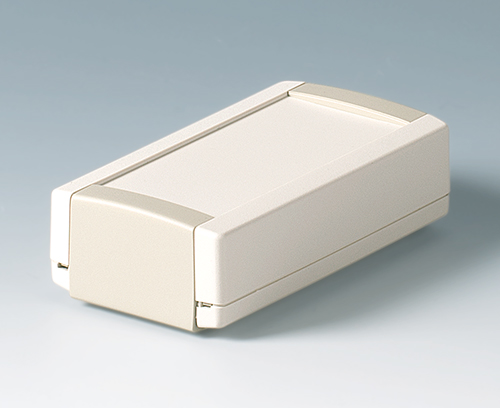

TOPTEC without ventilation slots

With ventilation slots

TOPTEC with ventilation slots

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
A9207150 Rubber feet 6.5 x 2 mm

A9207150

Rubber feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Rubber feet 6.5 x 2 mm transparent
B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Close

B1300017

Fastening element for DIN-Rails PA 6
off-white RAL 9002
B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Close

B1300019

Fastening element for DIN-Rails PA 6
black RAL 9005
B1340028 Wall suspension element for Toptec 102

B1340028

Wall suspension element for Toptec 102 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1340028

Wall suspension element for Toptec 102 PC+ABS (UL 94 V-0)
pebble grey RAL 7032

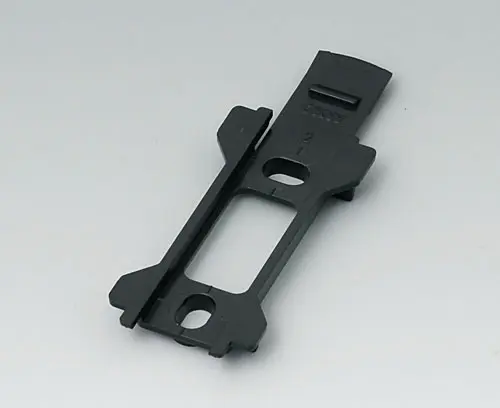

B1340029 Wall suspension element for Toptec 102

B1340029

Wall suspension element for Toptec 102 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1340029

Wall suspension element for Toptec 102 ABS (UL 94 HB)
black RAL 9005
B1350028 Wall suspension element for Toptec 123

B1350028

Wall suspension element for Toptec 123 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1350028

Wall suspension element for Toptec 123 PC+ABS (UL 94 V-0)
pebble grey RAL 7032

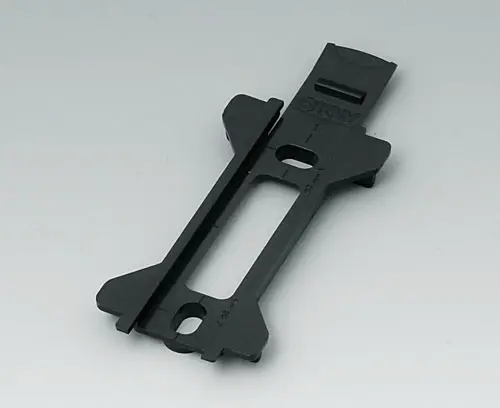

B1350029 Wall suspension element for Toptec 123

B1350029

Wall suspension element for Toptec 123 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1350029

Wall suspension element for Toptec 123 ABS (UL 94 HB)
black RAL 9005

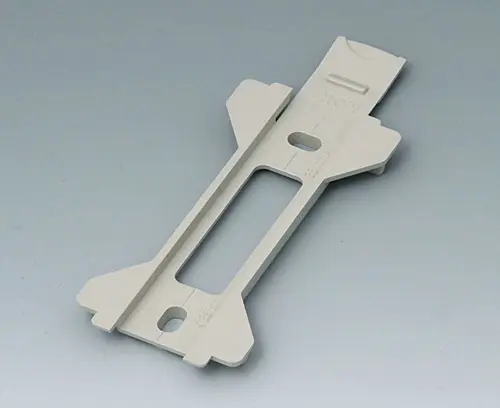

B1360028 Wall suspension element for Toptec 154

B1360028

Wall suspension element for Toptec 154 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1360028

Wall suspension element for Toptec 154 PC+ABS (UL 94 V-0)
pebble grey RAL 7032
B1360029 Wall suspension element for Toptec 154

B1360029

Wall suspension element for Toptec 154 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1360029

Wall suspension element for Toptec 154 ABS (UL 94 HB)
black RAL 9005

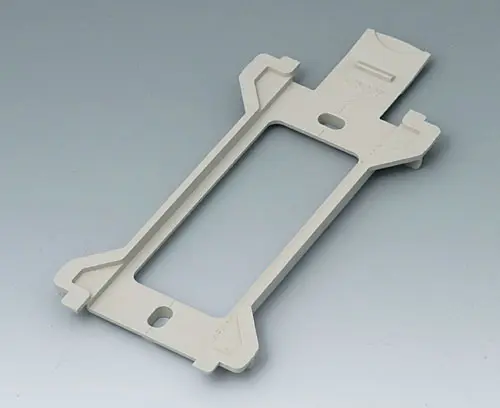

B1370028 Wall suspension element for Toptec 194

B1370028

Wall suspension element for Toptec 194 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1370028

Wall suspension element for Toptec 194 PC+ABS (UL 94 V-0)
pebble grey RAL 7032
B1370029 Wall suspension element for Toptec 194

B1370029

Wall suspension element for Toptec 194 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1370029

Wall suspension element for Toptec 194 ABS (UL 94 HB)
black RAL 9005

Customising options for Toptec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
